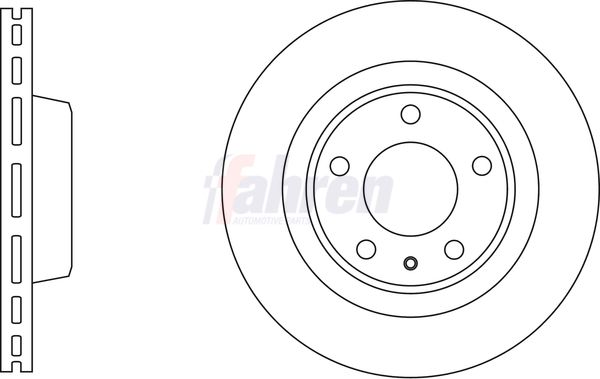

Fahren FBD6776 Brake Disc - 1

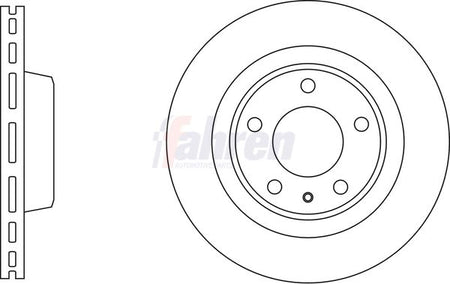

Fahren FBD6776 Brake Disc - 1
FAHREN

Fahren FBD6776 Brake Disc

SKU: FBD6776
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£51.78 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A4 B8 (8K2)
Description Cylinder Capacity Horse Power Year
3.0 TFSI quattro 2995 CCM 272 HP 02/2012 - 12/2015
A4 B8 Avant (8K5)
Description Cylinder Capacity Horse Power Year
3.0 TFSI quattro 2995 CCM 272 HP 02/2012 - 12/2015
3.0 TDI quattro 2967 CCM 245 HP 11/2011 - 12/2015
A5 (8T3)
Description Cylinder Capacity Horse Power Year
3.0 TDI quattro 2967 CCM 245 HP 10/2011 - 01/2017
S5 quattro 2995 CCM 333 HP 10/2011 - 01/2017
S5 quattro 4163 CCM 354 HP 06/2007 - 03/2012
A5 Sportback (8TA)
Description Cylinder Capacity Horse Power Year
3.0 TDI quattro 2967 CCM 245 HP 10/2011 - 01/2017
A5 Convertible (8F7)
Description Cylinder Capacity Horse Power Year
3.0 TDI quattro 2967 CCM 245 HP 10/2011 - 01/2017
A6 C7 (4G2, 4GC)
Description Cylinder Capacity Horse Power Year
3.0 TDI quattro 2967 CCM 245 HP 03/2011 - 09/2018
2.0 TFSI 1984 CCM 211 HP 03/2011 - 05/2013
2.0 TFSI Hybrid 1984 CCM 245 HP 11/2011 - 04/2015
A6 C7 Avant (4G5, 4GD)
Description Cylinder Capacity Horse Power Year
3.0 TDI quattro 2967 CCM 245 HP 05/2011 - 09/2018
A7 Sportback (4GA, 4GF)
Description Cylinder Capacity Horse Power Year
3.0 TFSI quattro 2995 CCM 310 HP 01/2011 - 03/2015
3.0 TDI quattro 2967 CCM 245 HP 10/2010 - 06/2016
3.0 TDI quattro 2967 CCM 239 HP 05/2013 - 06/2017
3.0 TDI quattro 2967 CCM 218 HP 07/2014 - 05/2018
3.0 TDI 2967 CCM 218 HP 07/2014 - 05/2018
3.0 TDI quattro 2967 CCM 272 HP 05/2014 - 05/2018
Q5 (8RB)
Description Cylinder Capacity Horse Power Year
3.0 TDI quattro 2967 CCM 240 HP 11/2008 - 05/2017
3.2 FSI quattro 3197 CCM 270 HP 11/2008 - 12/2012
3.0 TDI quattro 2967 CCM 245 HP 06/2012 - 05/2017
PORSCHE
MACAN (95B)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 237 HP 05/2014 - 09/2018
2.0 1984 CCM 252 HP From 05/2015
2.0 1984 CCM 245 HP From 05/2018

The Fahren FBD6776 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 345 mm outer diameter, 30 mm brake disc thickness, and 15 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 345
Brake Disc Thickness [mm] : 30
Height [mm] : 52
Bolt Hole Circle Ø [mm] : 112
Wheel Bolt Bore Diameter [mm] : 15
Centering Diameter [mm] : 68
Test Mark : 90R-02C0448/1497
  • Vendor FAHREN
  • SKU FBD6776
  • Barcode 5056758933782
  • AUDI : 4G0615301 4G0615301AE 4G0615301AF 4G0615301G 4G0615301M 4G0615301Q 4G0698996
  • PORSCHE : 95B615301B 95B615301M
  • SEAT : 4G0615301M 4G0615301Q
  • SKODA : 4G0615301M 4G0615301Q
  • VW : 4G0615301M 4G0615301Q
  • APEC : DSK3048
  • APEC : SDK6776
  • BLUE PRINT : ADV184370
  • FEBI BILSTEIN : 44039
  • NAPA : NBD5104
