Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Fahren FBD6777 Brake Disc - 1
Fahren FBD6777 Brake Disc - 1
FAHREN

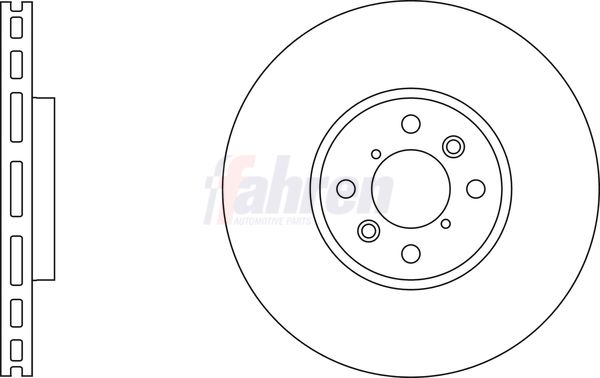

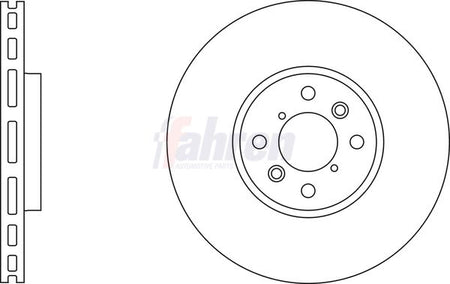

Fahren FBD6777 Brake Disc

SKU: FBD6777
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£23.48 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
SWIFT III (FZ, NZ)
Description Cylinder Capacity Horse Power Year
1.2 (AZH412, ZC72S) 1242 CCM 94 HP 10/2010 - 04/2017
1.2 4x4 (AZH412, ZD72S) 1242 CCM 94 HP 10/2010 - 04/2017
1.3 DDiS (AZG413D, ZC02S, ZC92S) 1248 CCM 75 HP 10/2010 - 04/2017
1.2 (AZH412, AZG412, ZC72S) 1242 CCM 91 HP 08/2012 - 04/2017
1.2 4WD (AZH412, AZG412, ZD72S) 1242 CCM 91 HP 08/2012 - 04/2017

The Fahren FBD6777 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 272 mm outer diameter, 22 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 272
Brake Disc Thickness [mm] : 22
Height [mm] : 40
Bolt Hole Circle Ø [mm] : 100
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 60
Test Mark : 90R-02C0349/0052
  • Vendor FAHREN
  • SKU FBD6777
  • Barcode 5056758933799
  • SUZUKI : 5531168L50
  • APEC : DSK3051
  • APEC : SDK6777
  • BLUE PRINT : ADK84340
  • FEBI BILSTEIN : 108504
  • NAPA : NBD5218
