Fahren FBD6791 Brake Disc

SKU: FBD6791

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£28.51 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FIAT

500L (351_, 352_)

Description	Cylinder Capacity	Horse Power	Year
1.4 (199LYB1B)	1368 CCM	95 HP	From 09/2012
0.9 (199LYC1B)	875 CCM	105 HP	From 09/2012
1.3 D Multijet (199LXY1A, 199LXY11)	1248 CCM	84 HP	From 09/2012
1.6 D Multijet (199LYD1B)	1598 CCM	105 HP	09/2012 - 05/2018
0.9 Natural Power (199LYC1B)	875 CCM	86 HP	From 03/2013
1.3 D Multijet (199.LYM11, 199.LYM1A)	1248 CCM	95 HP	From 06/2014
0.9 Natural Power (199LYC1B)	875 CCM	80 HP	From 04/2017

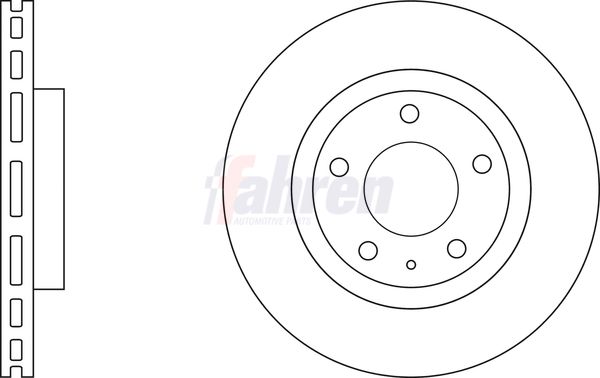

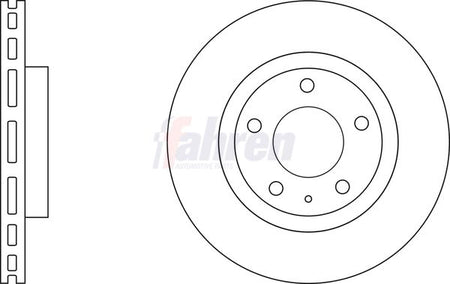

The Fahren FBD6791 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 284 mm outer diameter, 22 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 284

Brake Disc Thickness [mm] : 22

Height [mm] : 43

Bolt Hole Circle Ø [mm] : 98

Wheel Bolt Bore Diameter [mm] : 13

Centering Diameter [mm] : 59

Test Mark : 90R-02C0448/0940
