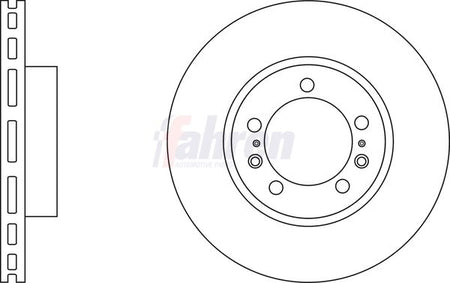

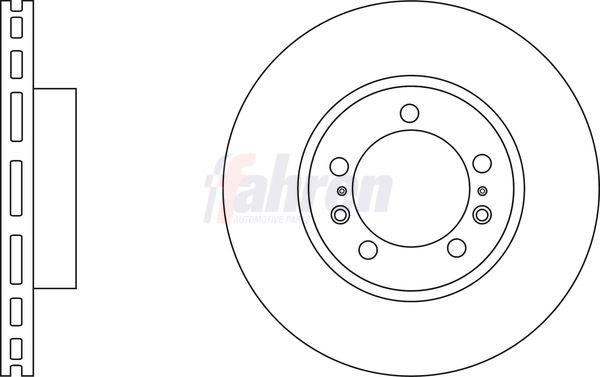

Fahren FBD6803 Brake Disc
Your selected vehicle
Regular price
£23.72
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Fahren FBD6803 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 272 mm outer diameter, 22 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Type :
Vented
Outer Diameter [mm] :
272
Brake Disc Thickness [mm] :
22
Height [mm] :
40
Bolt Hole Circle Ø [mm] :
114
Wheel Bolt Bore Diameter [mm] :
13
Centering Diameter [mm] :
62
Test Mark :
90R-02C0349/0052
- Vendor FAHREN
- SKU FBD6803
- SUZUKI : 5531170L00 5531172L00 55311B77M00N000
- APEC : DSK3094
- APEC : SDK6803
- BLUE PRINT : ADK84344
- FEBI BILSTEIN : 108469
- NAPA : NBD5832
