Fahren FBD6936 Brake Disc - 1
Fahren FBD6936 Brake Disc - 1
FAHREN

Fahren FBD6936 Brake Disc

SKU: FBD6936
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£44.09 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
A-CLASS (W176)
Description Cylinder Capacity Horse Power Year
A 250 (176.044) 1991 CCM 211 HP 06/2012 - 05/2018
A 220 CDI (176.003) 2143 CCM 170 HP 09/2012 - 05/2018
A 250 4-matic (176.046) 1991 CCM 211 HP 06/2013 - 05/2018
A 220 CDI 4-matic (176.005) 2143 CCM 170 HP 02/2014 - 05/2018
A 220 CDI (176.003) 2143 CCM 163 HP 01/2014 - 05/2018
A 220 4-matic (176.047) 1991 CCM 184 HP 05/2014 - 05/2018
B-CLASS Sports Tourer (W246, W242)
Description Cylinder Capacity Horse Power Year
B 220 4-matic (246.247) 1991 CCM 184 HP 05/2013 - 12/2018
B 250 (246.244) 1991 CCM 211 HP 05/2012 - 12/2018
B 220 CDI / d (246.203) 2143 CCM 170 HP 11/2011 - 12/2018
B 250 4-matic (246.246) 1991 CCM 211 HP 08/2014 - 12/2018
B 200 CDI / d 4-matic (246.202) 2143 CCM 136 HP 08/2014 - 12/2018
B 220 CDI / d (246.203) 2143 CCM 177 HP 08/2014 - 12/2018
B 220 CDI / d 4-matic (246.205) 2143 CCM 177 HP 08/2014 - 12/2018
CLA Coupe (C117)
Description Cylinder Capacity Horse Power Year
CLA 250 4-matic (117.346) 1991 CCM 211 HP 07/2013 - 03/2019
CLA 220 CDI / d (117.303) 2143 CCM 170 HP 01/2013 - 03/2019
CLA 220 CDI / d (117.303) 2143 CCM 163 HP 01/2013 - 03/2019
CLA 220 CDI 4-matic (117.305) 2143 CCM 170 HP 07/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305) 2143 CCM 163 HP 08/2014 - 03/2019
CLA 220 CDI / d (117.303) 2143 CCM 177 HP 09/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305) 2143 CCM 177 HP 09/2014 - 03/2019
CLA Shooting Brake (X117)
Description Cylinder Capacity Horse Power Year
CLA 250 (117.944) 1991 CCM 211 HP 01/2015 - 03/2019
CLA 250 4-matic (117.946) 1991 CCM 211 HP 01/2015 - 03/2019
CLA 220 CDI / d (117.903) 2143 CCM 177 HP 01/2015 - 03/2019
CLA 220 CDI / d 4-matic (117.905) 2143 CCM 177 HP 01/2015 - 03/2019
CLA 220 CDI / d (117.903) 2143 CCM 163 HP 01/2015 - 03/2019
CLA 250 4-matic (117.951) 1991 CCM 218 HP 07/2015 - 03/2019
CLA 220 4-matic (117.947) 1991 CCM 184 HP 04/2016 - 03/2019
CLA 220 d (117.903) 2143 CCM 170 HP 07/2018 - 03/2019
GLA-CLASS (X156)
Description Cylinder Capacity Horse Power Year
GLA 220 CDI (156.903) 2143 CCM 170 HP 12/2013 - 05/2019
GLA 220 CDI / d (156.903) 2143 CCM 163 HP 12/2013 - 05/2019
GLA 220 CDI 4-matic (156.905) 2143 CCM 170 HP 12/2013 - 12/2019
GLA 220 CDI / d 4-matic (156.905) 2143 CCM 163 HP 12/2013 - 12/2019
GLA 250 (156.944) 1991 CCM 211 HP 12/2013 - 12/2019
GLA 250 4-matic (156.946) 1991 CCM 211 HP 12/2013 - 12/2019
GLA 220 d (156.903) 2143 CCM 177 HP 07/2015 - 05/2019
GLA 220 d 4-matic (156.905) 2143 CCM 177 HP 07/2015 - 12/2019

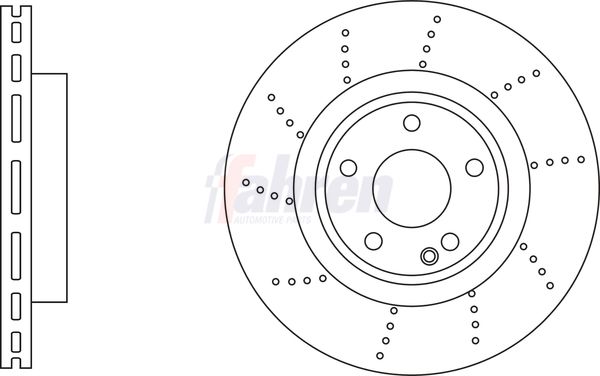

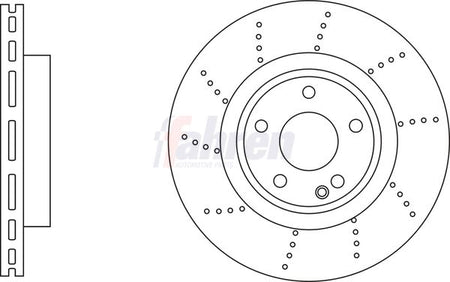

The Fahren FBD6936 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 320 mm outer diameter, 30 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Outer Diameter [mm] : 320
Brake Disc Thickness [mm] : 30
Height [mm] : 51
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 67
Test Mark : 90R-02C0727/1418
  • Vendor FAHREN
  • SKU FBD6936
  • Barcode 5056758934741
  • MERCEDES-BENZ : 2464212712 246421271207 A2464212712
  • APEC : DSK3280
  • APEC : SDK6936
  • BLUE PRINT : ADU174395
  • FEBI BILSTEIN : 107501
  • NAPA : NBD5488
