Fahren FBD6938 Brake Disc

SKU: FBD6938

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£23.83 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA

2 Hatchback (DL, DJ)

Description	Cylinder Capacity	Horse Power	Year
1.5 D (DJ5FS)	1499 CCM	105 HP	From 08/2014
1.5 SKYACTIV-G (DJLFS)	1496 CCM	115 HP	From 08/2014
1.5	1496 CCM	75 HP	From 08/2014
1.5 SKYACTIV-G	1496 CCM	90 HP	From 08/2014
1.5 (DJ2HA)	1496 CCM	107 HP	From 11/2014
1.5 SKYACTIV-G M Hybrid	1496 CCM	90 HP	From 08/2019
1.5 SKYACTIV-G M Hybrid	1496 CCM	75 HP	From 08/2019
1.5 E-SKYACTIV G	1496 CCM	116 HP	From 10/2021

MX-5 IV (ND__)

Description	Cylinder Capacity	Horse Power	Year
1.5 (ND2E, ND5R)	1496 CCM	131 HP	From 06/2015
1.5 (ND6E, ND5RC)	1496 CCM	132 HP	From 05/2018

MX-5 RF Targa (ND)

Description	Cylinder Capacity	Horse Power	Year
1.5	1496 CCM	131 HP	From 08/2017
1.5 (ND6E)	1496 CCM	132 HP	From 05/2018

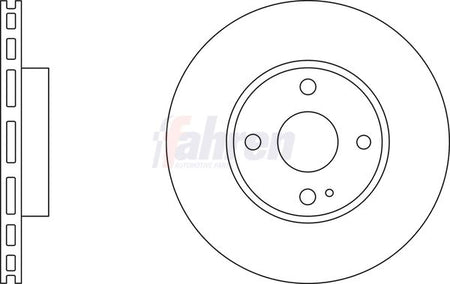

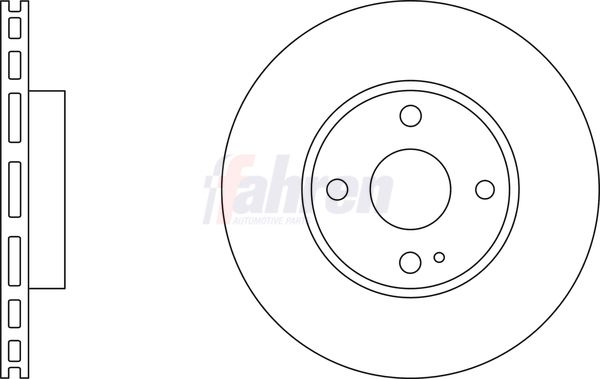

The Fahren FBD6938 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 258 mm outer diameter, 22 mm brake disc thickness, and 55 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 258

Brake Disc Thickness [mm] : 22

Height [mm] : 44

Bolt Hole Circle Ø [mm] : 100

Centering Diameter [mm] : 55

Test Mark : 90R-02C0448/1336
