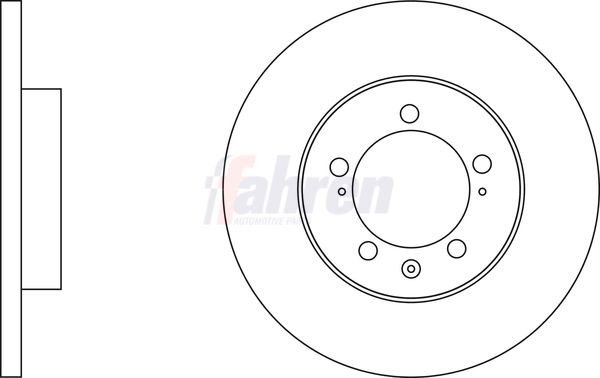

Fahren FBD7161 Brake Disc - 1

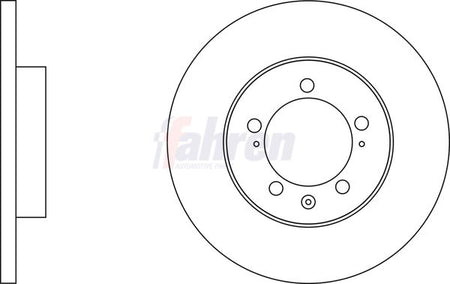

Fahren FBD7161 Brake Disc - 1
FAHREN

Fahren FBD7161 Brake Disc

SKU: FBD7161
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£20.98 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
S-CROSS
Description Cylinder Capacity Horse Power Year
1.4 Smart Hybrid AllGrip (AKP414, AKK414) 1373 CCM 129 HP From 01/2022
1.4 Smart Hybrid (AKP414, AKK414) 1373 CCM 129 HP From 01/2022
1.5 Hybrid (AKK415) 1462 CCM 116 HP From 01/2022
1.5 Hybrid AllGrip (AKK415) 1462 CCM 116 HP From 01/2022
SX4 S-CROSS (JY)
Description Cylinder Capacity Horse Power Year
1.6 AllGrip (AKK 416) 1586 CCM 120 HP 08/2013 - 06/2022
1.6 DDiS (AKK 416D) 1598 CCM 120 HP 08/2013 - 06/2022
1.6 DDiS AllGrip (AKK 416D) 1598 CCM 120 HP 08/2013 - 06/2022
1.6 (AKK 416) 1586 CCM 120 HP 08/2013 - 06/2022
1.6 (AKK416, YA22S) 1586 CCM 117 HP 12/2013 - 06/2022
1.6 AllGrip (AKK416, YB22S) 1586 CCM 117 HP 12/2013 - 06/2022
1.4 T (AKK414) 1373 CCM 140 HP 08/2016 - 06/2022
1.4 T AllGrip (AKK414) 1373 CCM 140 HP 08/2016 - 06/2022
1.0 (AKK 310) 998 CCM 111 HP 08/2016 - 06/2022
1.0 AllGrip (AKK 310) 998 CCM 111 HP 08/2016 - 06/2022
1.4 Hybrid (Mild Hybrid) AllGrip (AKK 414) 1373 CCM 129 HP 08/2019 - 06/2022
1.4 Hybrid (Mild Hybrid) (AKK 414) 1373 CCM 129 HP 08/2019 - 06/2022
VITARA (LY)
Description Cylinder Capacity Horse Power Year
1.6 (APK 416) 1586 CCM 120 HP From 02/2015
1.6 AllGrip (APK 416) 1586 CCM 120 HP From 02/2015
1.6 DDiS (APK 416D) 1598 CCM 120 HP From 02/2015
1.6 DDiS AllGrip (APK416D) 1598 CCM 120 HP From 02/2015
1.4 T (APK414) 1373 CCM 140 HP From 09/2015
1.4 T AllGrip (APK414) 1373 CCM 140 HP From 09/2015
1.6 (APK416, YD21S) 1586 CCM 117 HP From 05/2015
1.6 AllGrip (APK416, YE21S) 1586 CCM 117 HP From 05/2015
1.6 AllGrip 1586 CCM 118 HP From 02/2015
1.6 1586 CCM 118 HP From 02/2015
1.0 (APK 310) 998 CCM 111 HP From 10/2018
1.0 AllGrip (APK 310) 998 CCM 111 HP From 10/2018
1.4 Hybrid (Mild Hybrid) AllGrip (APK414) 1373 CCM 129 HP From 07/2019
1.4 Hybrid (Mild Hybrid) (APK414) 1373 CCM 129 HP From 07/2019
1.5 Hybrid AllGrip 1462 CCM 116 HP From 01/2022

The Fahren FBD7161 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 259 mm outer diameter, 9 mm brake disc thickness, and 14 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 259
Brake Disc Thickness [mm] : 9
Height [mm] : 43
Bolt Hole Circle Ø [mm] : 114
Wheel Bolt Bore Diameter [mm] : 14
Centering Diameter [mm] : 62
Test Mark : 90R-02C0355/0001
  • Vendor FAHREN
  • SKU FBD7161
  • Barcode 5056758935618
  • SUZUKI : 5561161M00 5561161M20 5561161M21 55611-70L00
  • APEC : DSK3088
  • APEC : SDK7161
  • BLUE PRINT : ADK84345
  • FEBI BILSTEIN : 108494
  • NAPA : NBD5662
