Fahren FBD7164 Brake Disc - 1
Fahren FBD7164 Brake Disc - 1
FAHREN

Fahren FBD7164 Brake Disc

SKU: FBD7164
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£44.31 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
DS4 (NX_)
Description Cylinder Capacity Horse Power Year
1.6 THP 200 1598 CCM 200 HP 04/2011 - 07/2015
2.0 HDi 165 1997 CCM 163 HP 04/2011 - 07/2015
2.0 BlueHDi 180 1997 CCM 180 HP 07/2014 - 07/2015
2.0 BlueHDi 150 1997 CCM 150 HP 07/2014 - 07/2015
DS5
Description Cylinder Capacity Horse Power Year
1.6 THP 155 1598 CCM 156 HP 11/2011 - 07/2015
1.6 THP 200 1598 CCM 200 HP 11/2011 - 07/2015
2.0 HDi 165 1997 CCM 163 HP 11/2011 - 07/2015
2.0 BlueHDi 180 1997 CCM 180 HP 08/2013 - 07/2015
1.6 THP 165 1598 CCM 165 HP 01/2012 - 07/2015
2.0 HDi 200 Hybrid4 All-wheel Drive 1997 CCM 200 HP 12/2011 - 07/2015
2.0 HDi 135 1997 CCM 136 HP 11/2011 - 07/2015
1.6 THP 165 Hybrid 1598 CCM 165 HP 06/2012 - 07/2015
2.0 BlueHDi 150 1997 CCM 150 HP 07/2014 - 07/2015
PEUGEOT
308 I (4A_, 4C_)
Description Cylinder Capacity Horse Power Year
1.6 GTi 1598 CCM 200 HP 07/2010 - 10/2014
308 CC (4B_)
Description Cylinder Capacity Horse Power Year
1.6 THP 1598 CCM 200 HP 10/2010 - 12/2014
DS
DS 5 (KF_)
Description Cylinder Capacity Horse Power Year
1.6 THP 210 1598 CCM 210 HP 04/2015 - 12/2018
2.0 BlueHDi 150 1997 CCM 150 HP 04/2015 - 12/2018
2.0 BlueHDi 180 1997 CCM 180 HP 04/2015 - 12/2018
1.6 THP 165 (KF5GZT) 1598 CCM 165 HP 07/2015 - 12/2018
Hybrid4 1997 CCM 200 HP 04/2015 - 12/2018
DS 4 / DS 4 CROSSBACK (NX_)
Description Cylinder Capacity Horse Power Year
1.6 THP 210 1598 CCM 210 HP 07/2015 - 12/2018

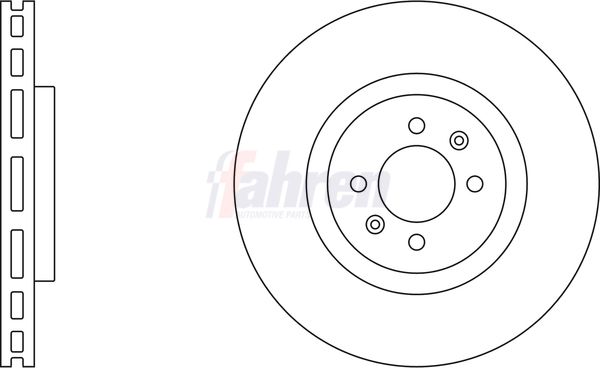

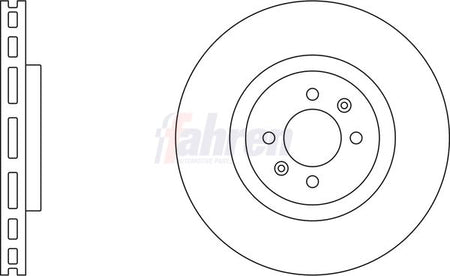

The Fahren FBD7164 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 340 mm outer diameter, 30 mm brake disc thickness, and 71 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 340
Brake Disc Thickness [mm] : 30
Height [mm] : 34
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 71
Test Mark : 90R-02C0448/1425
  • Vendor FAHREN
  • SKU FBD7164
  • Barcode 5056758935625
  • PEUGEOT : 4249F6
  • APEC : DSK2973
  • APEC : SDK7164
  • BLUE PRINT : ADP154355
  • FEBI BILSTEIN : 43916
  • NAPA : NBD5363
  • SKF : VKBD 81219 V1
