FAHREN

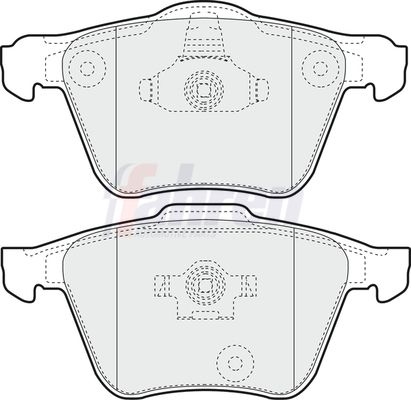

Fahren FBP3188 Brake Pad Set, disc brake

SKU: FBP3188

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£22.55 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO

XC90 I (275)

Description	Cylinder Capacity	Horse Power	Year
D5 AWD	2400 CCM	200 HP	01/2011 - 12/2014
3.2 AWD	3192 CCM	243 HP	04/2010 - 09/2014
2.5 T AWD	2521 CCM	209 HP	10/2002 - 09/2014
T6 AWD	2922 CCM	272 HP	10/2002 - 12/2006
D5 AWD	2401 CCM	163 HP	10/2002 - 12/2006
V8 AWD	4414 CCM	316 HP	01/2005 - 12/2010
D5 AWD	2401 CCM	185 HP	04/2005 - 12/2012
3.2 AWD	3192 CCM	238 HP	03/2006 - 12/2010
D3 / D5	2400 CCM	163 HP	04/2009 - 12/2014
V8 AWD	4414 CCM	320 HP	09/2004 - 12/2005
2.5 T AWD	2497 CCM	209 HP	10/2012 - 09/2014
D5 AWD	2400 CCM	163 HP	10/2007 - 12/2010

The Fahren FBP3188 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records ATE brake-system specification, with retaining spring, test mark 90R-02A01400/40999, and not prepared for wear warning indicator. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake

Brake System : ATE

Supplementary Article/Supplementary Info : with retaining spring

Width [mm] : 156

Height 1 [mm] : 74

Height 2 [mm] : 75

Thickness [mm] : 19

Thickness 1 [mm] : 21

Test Mark : 90R-02A01400/40999

Wear Warning Contact : not prepared for wear warning indicator

Fahren FBP3188 Brake Pad Set, disc brake
