Febi 02545 Tie Rod End
Your selected vehicle
Regular price
£16.42
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

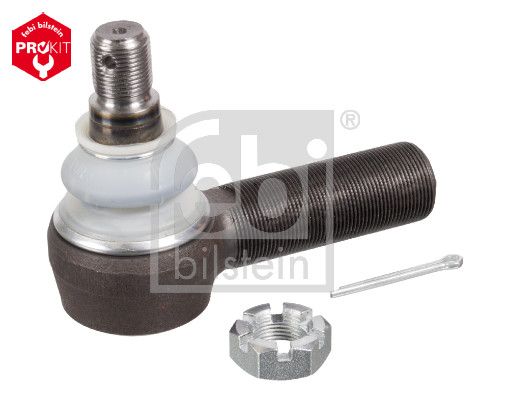

The Febi 02545 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records 60 and 23.5 mm outer diameter, with right-hand thread thread type, steel construction, and front axle fitting position. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.
Function :
Tie Rod End
Paired article number :
02546
Length [mm] :
115
Outer Diameter [mm] :
60
Outer Diameter [mm] :
23.5
External Thread Size :
M20 x 1,5
External Thread Size :
M30 x 1,5 RHT
Thread Length [mm] :
80
Quality/ Grade :
10.9
Spanner Size :
30
Thread Type :
with right-hand thread
Cone Size [mm] :
26
Colour :
grey
Material :
Steel
Fitting Position :
Front Axle
Pipe Diameter [mm] :
35
Supplementary Article/Supplementary Info :
with crown nut and split pin
- Vendor FEBI
- SKU 02545
- DAF : ACHB 064 ACHF 242 MAK 1296 0069 514 0586 753 0607 999 0694 298 0694 360 0698 609 1137 230 1229 944 1326 896 1331 925 586 753 607 999 69 514 694 298 694 360 698 609
- IVECO : 0 0296 6688 0 0298 0323 0 0309 6213 0 0483 3827 0 4248 3520 0 4249 3781 000296 6688 000298 0323 000309 6213 000483 3827 00296 6688 00298 0323 00309 6213 004248 3520 004249 3781 00483 3827 0296 6688 0298 0323 0309 6213 04248 3520 04249 3781 0483 3827 4248 3520 4249 3781
- MAN : 81.95301.0014 81.95301.0042 81.95301.0064 81.95301.0068 81.95301.6065 81.95301.6067 81.95301.6073 81.95301.6162 81.95301.6239 81.95301.6240 81.95301.6246 81.95301.6250 81.95301.6272 81.95301.6282 81.95301.6319 81.95301.6360 81.95301.6375 82.95301.6014 90.80410.2218 90.80415.3111
- MERCEDES-BENZ : A000 330 02 48 A000 330 32 35 A000 330 73 35 A000 338 34 10 A000 463 22 29 A000 463 34 29 A001 330 01 35 A001 330 02 35 A001 330 67 35 A002 330 15 35 000 330 02 48 000 330 32 35 000 330 73 35 000 338 34 10 000 463 22 29 000 463 34 29 001 330 01 35 001 330 02 35 001 330 67 35 002 330 15 35
- VOLVO : 1517577 20766190 20862492
- STEYR : 1 0 04 307 03 1 0 04 307 04 1 0 04307 03 1 0 07307 04 79100430703
- CASE IH : 129257 3141529R91 3141529R93
- RENAULT TRUCKS : 00 03 406 212 00 03 406 253 50 00 242 159 50 00 295 214 50 00 812 483 50 00 823 947 50 01 483 176 50 01 831 473 50 01 850 549 50 01 852 264 50 01 859 985 74 20 862 492 77 01 016 946
- CLAAS : 6884650
- EVOBUS : A000 330 02 48 A000 330 32 35 A000 463 22 29 A000 463 34 29 A001 330 01 35 A001 330 02 35 A6.851.512.000 000 330 02 48 000 330 32 35 000 463 22 29 000 463 34 29 001 330 01 35 001 330 02 35 6.851.512.000
- IRISBUS : 0820352212
- SOLARIS : 0820352212
- BLUE PRINT : ADG09203
- BORG & BECK : BTR32451
- CORTECO : 49399746
- FEBI BILSTEIN : 04773
- FEBI BILSTEIN : 33777
- FEBI BILSTEIN : 33779
- LEMFÖRDER : 11402 01
- LEMFÖRDER : 11402 02
- MONROE : L94G22
- SKF : VKDCV 06005
- TRW : JTE0196
- TRW : JTE3002
- TRW : JTE3501
- TRW : JTE3527
- TRW : JTE3533
