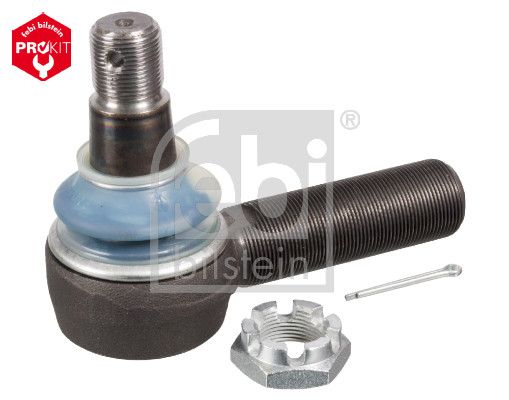

Febi 02954 Tie Rod End
Your selected vehicle
Regular price
£16.68
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Febi 02954 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records 27 and 70 mm outer diameter, with right-hand thread thread type, steel construction, and rear axle left, front axle left, and front axle right fitting position. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.
Function :
Tie Rod End
Length [mm] :
120
Outer Diameter [mm] :
27
Outer Diameter [mm] :
70
External Thread Size :
M24 x 1,5
External Thread Size :
M30 x 1,5 RHT
Thread Length [mm] :
85
Spanner Size :
36
Thread Type :
with right-hand thread
Cone Size [mm] :
30
Colour :
grey
Material :
Steel
Rod/Strut :
Guide Rod
Fitting Position :
Rear Axle Left
Fitting Position :
Front Axle Left
Fitting Position :
Front Axle Right
Fitting Position :
Rear Axle Right
Pipe Diameter [mm] :
40
Supplementary Article/Supplementary Info :
with crown nut and split pin
- Vendor FEBI
- SKU 02954
- DAF : ACHF060 0069 752 0607 981 0696 226 0698 450 1142 022 1149 907 1152 350 1257 890 1603 789 1618 048 1685 552 607 981 69 752 696 226 698 450
- IVECO : 0 0296 6252 0 0296 9808 0 0480 2443 0 0483 3829 0 4248 3386 0 4248 8269 0 4248 9573 0 4248 9594 0 4249 1638 0 4253 7936 0 4256 9792 000296 6252 000296 9808 000480 2443 000483 3829 00296 6252 00296 9808 004248 3386 004248 8269 004248 9573 004248 9594 004249 1638 004253 7936 004256 9792 00480 2443 00483 3829 0296 6252 0296 9808 04248 3386 04248 8269 04248 9573 04248 9594 04249 1638 04253 7936 04256 9792 0480 2443 0483 3829 4248 3386 4248 8269 4248 9573 4248 9594 4249 1638 4253 7936 4256 9792 58 0204 1656
- MAN : N2.95301.6001 81.95301.0016 81.95301.0075 81.95301.0084 81.95301.0094 81.95301.0103 81.95301.6030 81.95301.6043 81.95301.6048 81.95301.6049 81.95301.6053 81.95301.6061 81.95301.6090 81.95301.6108 81.95301.6112 81.95301.6126 81.95301.6143 81.95301.6149 81.95301.6154 81.95301.6156 81.95301.6168 81.95301.6178 81.95301.6194 81.95301.6206 81.95301.6224 81.95301.6242 81.95301.6274 81.95301.6286 81.95301.6308 81.95301.6310 81.95301.6347 81.95301.6350 81.95301.6374 82.95301.6012 88.95301.6014 90.80410.2156 90.80410.2272 90.80410.2696 90.80410.2710
- MERCEDES-BENZ : A000 330 52 48 A000 340 61 69 A000 340 62 51 A000 340 62 54 A000 340 62 60 A000 340 62 61 A000 340 63 26 A000 460 03 48 A000 460 28 48 A000 460 29 48 A000 460 52 35 A001 460 08 48 A001 460 12 48 A001 460 22 48 A001 460 64 48 A001 460 77 48 A002 460 01 48 000 330 52 48 000 340 61 69 000 340 62 51 000 340 62 54 000 340 62 60 000 340 62 61 000 340 63 26 000 460 03 48 000 460 28 48 000 460 29 48 000 460 52 35 001 460 08 48 001 460 12 48 001 460 22 48 001 460 64 48 001 460 77 48 002 460 01 48
- SCANIA : 0 283 784 0 395 010 1 358 793 1 435 746 1 488 890 1 534 756 1 767 328 1 899 667 1 914 427 2 051 166 2 862 743 283 784 395 010
- VAN HOOL : 634301250
- VOLVO : 20745043 20862494 20894052 20937674
- NEOPLAN : 1203.250.00
- STEYR : 1 0 04 307 01 1 0 04 307 27
- LIEBHERR : 57186 6608 72501 0008
- RENAULT TRUCKS : 50 00 240 688 50 00 242 475 50 00 242 479 50 00 242 485 50 00 253 852 50 00 275 496 50 00 288 360 50 00 590 236 50 00 804 824 50 00 819 349 50 00 858 773 50 01 836 298 50 10 832 582 74 20 894 052 74 20 937 674 77 01 011 412
- DEUTZ-FAHR : 4311552
- EVOBUS : A000 330 52 48 A000 338 73 10 A000 460 03 48 A000 460 28 48 A000 460 29 48 A000 460 52 35 A001 460 08 48 A001 460 12 48 A001 460 22 48 A001 460 77 48 A685 153 10 00 A822 623 60 59 000 330 52 48 000 338 73 10 000 460 03 48 000 460 28 48 000 460 29 48 000 460 52 35 001 460 08 48 001 460 12 48 001 460 22 48 001 460 77 48 685 153 10 00 822 623 60 59
- JCB : 458/M1380
- IRISBUS : 0801211835
- SETRA : A0.014.602.248 0.014.602.248
- SOLARIS : 0801211835
- BORG & BECK : BTR32195
- BORG & BECK : BTR32440
- BORG & BECK : BTR32441
- BORG & BECK : BTR32807
- FEBI BILSTEIN : 12764
- FEBI BILSTEIN : 18744
- LEMFÖRDER : 11505 02
- LEMFÖRDER : 11505 03
- LEMFÖRDER : 20912 01
- MONROE : L90G31
- SKF : VKDCV 06001
- TRW : JTE0141
- TRW : JTE0201
- TRW : JTE4001
- TRW : JTE4040
- TRW : JTE4057
- TRW : JTE4065
- TRW : JTE4072
- TRW : JTE4078
- TRW : JTE5001
