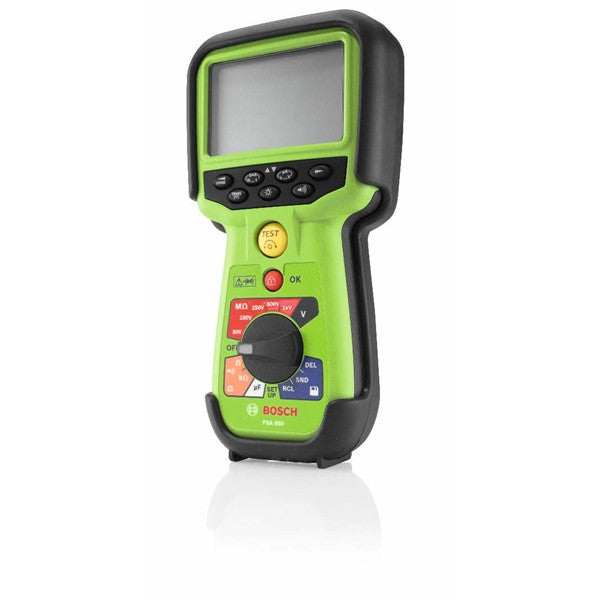

FSA 050 Hybrid Tester
Your selected vehicle
Regular price
£1,531.60
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The FSA 050 Hybrid Tester is a workshop service or equipment product that supports the inspection, inflation, programming or maintenance task stated in its product data. Its catalogue specification records FSA 050 Hybrid Tester enhanced description. Use Bosch reference 0684010050 when cross-checking the part. Confirm the operating range, voltage or pressure, connections, included parts and intended application before use, and follow the equipment manufacturer's safety instructions.
Technical Info
- High-voltage analysis: up to 600 V (TRMS)
- Insulation analysis:until 200 G Ω
- Insulation resistance: 50 - 100 - 250 - 500 - 1 000 V
- Test voltages: 1 mA
- Test current Measurement modes: t, PI, DAR
- Resistance measurement: 0.01 - 1 000 kOhm
- Continuity testing: 0.01 - 99.9 Ohm with test current 20 mA / 205 mA
- Capacitance measurement: 100 picofarad - 10 microfarad
- Data transmission: Bluetooth class I (up to 30 m range)
- Power supply: Batteries 5x IEC LR6 (AA)
- Operating temperature range -20 - 55 degree(C)
- Weight: 0.8 kg
- Dimensions: 220 x 92 x 50 mm
Enhanced Description
FSA 050 Hybrid Tester
Info
- Wireless connectivity: Conntect with Bosch Connected Repair or other workshop networks to help you work more efficiently
- Complete with storage case, two measuring cables, high-voltage probe, CD/DVD CompacSoft[plus] and Bluetooth USB stick: It’s the economical package for testing electrical drive systems
- Bluetooth interface: Ultimate convenience – wirelessly transmit test results to workshop PC or FSA series
- Lightweight (0.8 kg): The mobile solution around the workshop
- Compact (220 x 110 x 65 mm): Handy size for efficient working
- Combines as a test module with FSA 500: Enhance functionality and output to comprehensively document measurement test results
- Standalone tester: Get fast results with insulation and high-voltage testing for electric and hybrid drive
Length
489
Thickness
129
Width
389
Weight
4.58
- Standalone tester: Get fast results with insulation and high-voltage testing for electric and hybrid drive
- Combines as a test module with FSA 500: Enhance functionality and output to comprehensively document measurement test results
- Compact (220 x 110 x 65 mm): Handy size for efficient working
- Lightweight (0.8 kg): The mobile solution around the workshop
- Bluetooth interface: Ultimate convenience – wirelessly transmit test results to workshop PC or FSA series
- Vendor BOSCH
- SKU 0684010050
