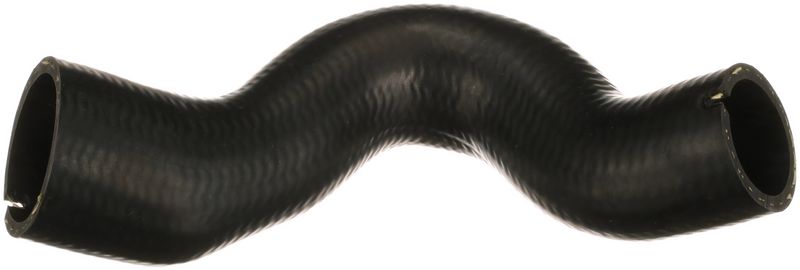

Gates 09-0075 Charge Air Hose

SKU: 09-0075
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£23.01 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FIAT
500 (312_)
Description Cylinder Capacity Horse Power Year
0.9 (312AXG1A, 312.AXG11) 875 CCM 86 HP From 07/2010
0.9 (312AXN1A) 875 CCM 80 HP From 12/2013
500 C (312_)
Description Cylinder Capacity Horse Power Year
0.9 (312AG1A) 875 CCM 86 HP From 09/2009
0.9 (312AXN1A, 312AXN11) 875 CCM 80 HP From 12/2013

The Gates 09-0075 Charge Air Hose is a replacement engine air-management component that carries or cools intake air between the turbocharger, charge cooler and engine. Its catalogue specification records polychloroprene (Neoprene) construction, black colour, 47.5 mm inner diameter 1, and 36.5 mm inner diameter 2. Confirm the reference, hose or core dimensions, connections, material and engine application before fitting, then inspect adjoining pipes and clamps for leaks or damage.

Function : Charge Air Hose
Material : Polychloroprene (Neoprene)
Colour : black
Hose Length [mm] : 310
Inner Diameter 1 [mm] : 47.5
Inner Diameter 2 [mm] : 36.5
MPN 090075
  • Vendor GATES
  • SKU 09-0075
  • Barcode 5400608149708
  • FIAT : 51891353
  • BORG & BECK : BTH1571
  • CORTECO : 80000068
  • CORTECO : 80000802
  • FIRST LINE : FTH1571
  • HELLA : 8ZC 366 122-481
  • HENGST FILTER : E1965LC01
  • KLARIUS : 311775
  • MAHLE : LAK 589
  • NRF : 166540
  • User manual
  • GATES : 417710075
