Gates 09-0132 Charge Air Hose - 1
Gates 09-0132 Charge Air Hose - 1
GATES

Gates 09-0132 Charge Air Hose

SKU: 09-0132
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£42.35 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 90 HP 02/2007 - 09/2010
FOCUS C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 109 HP 10/2003 - 03/2007
1.6 TDCi 1560 CCM 90 HP 02/2005 - 03/2007
FOCUS II (DA_, HCP, DP)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 109 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 90 HP 10/2005 - 03/2012
FOCUS II Estate Van
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 109 HP 07/2004 - 07/2011
1.6 TDCi 1560 CCM 90 HP 09/2005 - 07/2011
FOCUS II Station Wagon (DA_, FFS, DS)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 110 HP 12/2007 - 09/2012
1.6 TDCi 1560 CCM 109 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 90 HP 07/2004 - 09/2012
FOCUS II Saloon (DB_, FCH, DH)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 90 HP 04/2005 - 09/2012
1.6 TDCi 1560 CCM 109 HP 04/2005 - 09/2012
VOLVO
C30 (533)
Description Cylinder Capacity Horse Power Year
1.6 D 1560 CCM 109 HP 10/2006 - 12/2012
S40 II (544)
Description Cylinder Capacity Horse Power Year
1.6 D 1560 CCM 110 HP 01/2005 - 12/2012
V50 (545)
Description Cylinder Capacity Horse Power Year
1.6 D 1560 CCM 110 HP 01/2005 - 12/2011

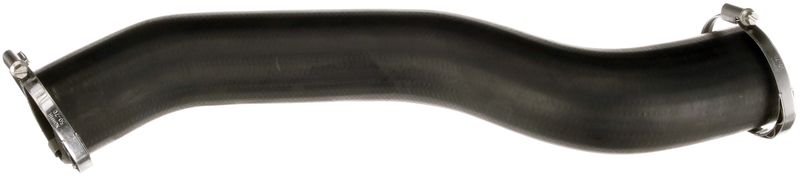

The Gates 09-0132 Charge Air Hose is a replacement engine air-management component that carries or cools intake air between the turbocharger, charge cooler and engine. Its catalogue specification records polychloroprene (Neoprene) construction, black colour, 54 mm inner diameter 1, and 56 mm inner diameter 2. Confirm the reference, hose or core dimensions, connections, material and engine application before fitting, then inspect adjoining pipes and clamps for leaks or damage.

Function : Charge Air Hose
Material : Polychloroprene (Neoprene)
Colour : black
Hose Length [mm] : 450
Inner Diameter 1 [mm] : 54
Inner Diameter 2 [mm] : 56
MPN 090132
  • Vendor GATES
  • SKU 09-0132
  • Barcode 5400608150261
  • FORD : 1231906 1252691 1314366 1346295 1439411 1496239 1525112 1682293 31274154 3M51-6C646-AD 3M51-6C646-XD 3M51-6C646-XE 6M51-6K863-GA 6M51-6K863-GB 6M51-6K863-GC 9M51-6K863-GB
  • VOLVO : 31274154
  • BORG & BECK : BTH1295
  • FEBI BILSTEIN : 17420
  • FEBI BILSTEIN : 46491
  • FIRST LINE : FTH1295
  • MEYLE : 714 036 0001
  • NRF : 166571
  • User manual
  • GATES : 417710132
