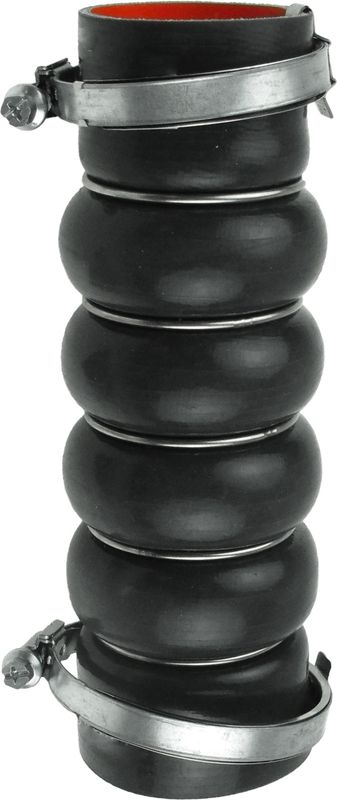

Gates 09-0136 Charge Air Hose - 1
Gates 09-0136 Charge Air Hose - 1
GATES

Gates 09-0136 Charge Air Hose

SKU: 09-0136
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£35.30 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
FOCUS III
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 95 HP 07/2010 - 12/2017
1.6 TDCi 1560 CCM 115 HP 07/2010 - 12/2017
FOCUS III Turnier
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 95 HP 07/2010 - 02/2020
1.6 TDCi 1560 CCM 115 HP 07/2010 - 02/2020
FOCUS III Saloon
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 95 HP 07/2010 - 02/2020
1.6 TDCi 1560 CCM 115 HP 07/2010 - 02/2020
FOCUS III Hatchback Van
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 115 HP 02/2012 - 12/2017
1.5 TDCi 1499 CCM 95 HP 09/2014 - 12/2017
1.6 TDCi 1560 CCM 95 HP 01/2011 - 12/2017
GRAND C-MAX (DXA/CB7, DXA/CEU)
Description Cylinder Capacity Horse Power Year
1.5 TDCi 1499 CCM 95 HP 03/2015 - 06/2019
KUGA II VAN
Description Cylinder Capacity Horse Power Year
1.5 TDCi 1499 CCM 120 HP 01/2019 - 12/2019
TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 95 HP 09/2013 - 12/2022
1.6 TDCi 1560 CCM 115 HP 09/2013 - 12/2022
1.6 TDCi 1560 CCM 75 HP 09/2013 - 12/2022
1.5 TDCi 1499 CCM 101 HP 05/2015 - 12/2022
1.5 TDCi 1499 CCM 75 HP 05/2015 - 12/2022
1.5 TDCi 1499 CCM 120 HP 05/2015 - 12/2022
1.5 EcoBlue 1499 CCM 120 HP 05/2018 - 12/2022
1.5 EcoBlue 1499 CCM 101 HP 05/2018 - 12/2022
1.5 EcoBlue 1499 CCM 75 HP 05/2018 - 12/2022
TRANSIT CONNECT MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 75 HP From 09/2013
1.6 TDCi 1560 CCM 95 HP From 09/2013
1.6 TDCi 1560 CCM 115 HP From 09/2013
1.5 TDCi 1499 CCM 101 HP From 05/2015
1.5 TDCi 1499 CCM 120 HP From 05/2015
1.5 TDCi 1499 CCM 75 HP From 08/2015
1.5 EcoBlue 1499 CCM 101 HP From 05/2018
1.5 EcoBlue 1499 CCM 120 HP From 05/2018
1.5 EcoBlue 1499 CCM 75 HP From 05/2018
TRANSIT CONNECT V408 Box Body/MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 115 HP From 09/2013
1.6 TDCi 1560 CCM 95 HP From 09/2013
1.6 TDCi 1560 CCM 75 HP From 09/2013
1.5 TDCi 1499 CCM 101 HP From 05/2015
1.5 TDCi 1499 CCM 120 HP From 05/2015
1.5 TDCi 1499 CCM 75 HP From 08/2015
1.5 EcoBlue 1499 CCM 101 HP From 05/2018
1.5 EcoBlue 1499 CCM 120 HP From 05/2018
1.5 EcoBlue 1499 CCM 75 HP From 05/2018
1.5 TDCi 1499 CCM 95 HP From 03/2016

The Gates 09-0136 Charge Air Hose is a replacement engine air-management component that carries or cools intake air between the turbocharger, charge cooler and engine. Its catalogue specification records silicone construction, black colour, 56 mm inner diameter 1, and 47 mm inner diameter 2. Confirm the reference, hose or core dimensions, connections, material and engine application before fitting, then inspect adjoining pipes and clamps for leaks or damage.

Function : Charge Air Hose
Material : Silicone
Colour : black
Hose Length [mm] : 190
Inner Diameter 1 [mm] : 56
Inner Diameter 2 [mm] : 47
MPN 090136
  • Vendor GATES
  • SKU 09-0136
  • Barcode 5400608150292
  • FORD : 2294509 AV61-6C646-HF 1784498 AV61-6C646-HE 1717462 AV61-6C646-HD 1710388 AV61-6C646-HC 1708385 AV61-6C646-HB
  • BLUE PRINT : ADR162532
  • BORG & BECK : BTH1510
  • FEBI BILSTEIN : 108260
  • FEBI BILSTEIN : 21935
  • FIRST LINE : FTH1510
  • HELLA : 8ZC 366 122-831
  • HENGST FILTER : E1961LI
  • KLARIUS : 321960
  • MAHLE : LA 134
  • MEYLE : 714 036 0007
  • NRF : 166036
  • User manual
  • GATES : 417710136
