Home / Car Parts / Engine Parts / Charge Air Hose
Gates 09-0137 Charge Air Hose - 1
Gates 09-0137 Charge Air Hose - 1
GATES

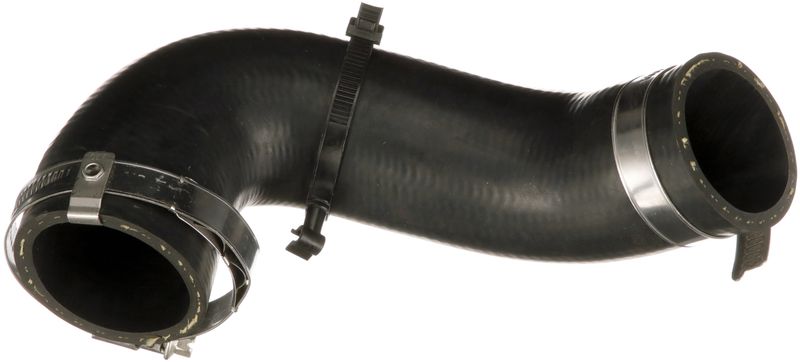

Gates 09-0137 Charge Air Hose

SKU: 09-0137
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£34.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TOURNEO CONNECT
Description Cylinder Capacity Horse Power Year
1.8 TDCi /TDDi /DI 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 110 HP 08/2006 - 12/2013
TRANSIT CONNECT (P65_, P70_, P80_)
Description Cylinder Capacity Horse Power Year
1.8 Di 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 110 HP 08/2006 - 12/2013

The Gates 09-0137 Charge Air Hose is a replacement engine air-management component that carries or cools intake air between the turbocharger, charge cooler and engine. Its catalogue specification records polychloroprene (Neoprene) construction, black colour, 50 mm inner diameter 1, and 48 mm inner diameter 2. Confirm the reference, hose or core dimensions, connections, material and engine application before fitting, then inspect adjoining pipes and clamps for leaks or damage.

Function : Charge Air Hose
Material : Polychloroprene (Neoprene)
Colour : black
Hose Length [mm] : 265
Inner Diameter 1 [mm] : 50
Inner Diameter 2 [mm] : 48
MPN 090137
  • Vendor GATES
  • SKU 09-0137
  • Barcode 5400608150308
  • FORD : 5050743 5205882 7T16-9F796-BG 7T16-6K683-BE
  • BORG & BECK : BTH1551
  • DELPHI : LS1163
  • FEBI BILSTEIN : 188207
  • FIRST LINE : FTH1551
  • NRF : 166237
  • User manual
  • GATES : 417710137
