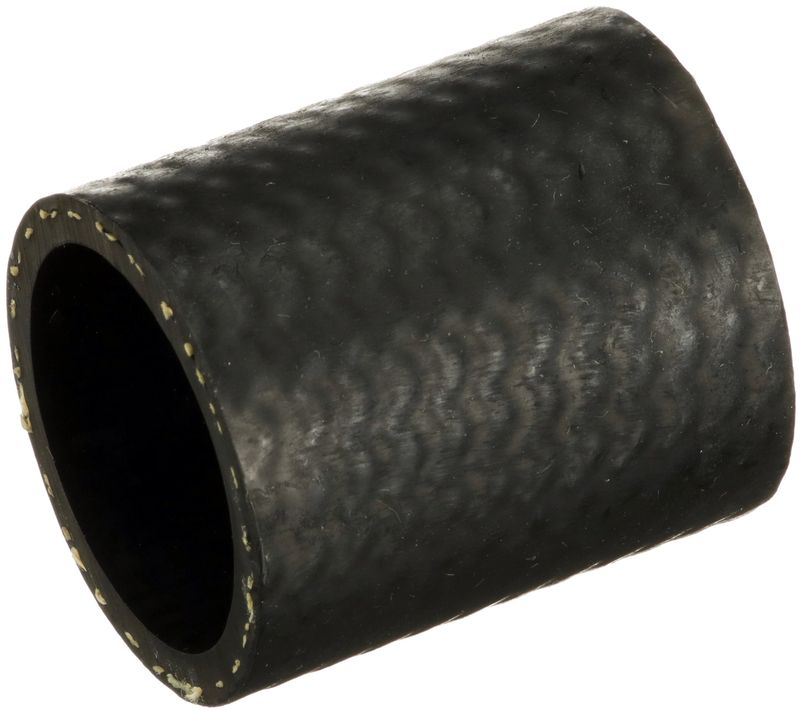

Gates 09-1620 Charge Air Hose - 1
Gates 09-1620 Charge Air Hose - 1
GATES

Gates 09-1620 Charge Air Hose

SKU: 09-1620
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£18.78 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8
Description Cylinder Capacity Horse Power Year
2.5 D4d (KDY220_, KDY230_) 2494 CCM 88 HP From 07/2001
2.5 D4d (KDY230, KDY250, KDY220) 2494 CCM 102 HP From 08/2001
HIACE IV Bus (__H1_, __H2_)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KLH12) 2494 CCM 88 HP 08/2001 - 08/2006
2.5 D-4D (KLH12, KLH22) 2494 CCM 102 HP 08/2001 - 08/2006
2.5 D-4D (KLH12, KLH22) 2494 CCM 95 HP 09/2006 - 12/2012
2.5 D-4D (KLH12, KLH22) 2494 CCM 117 HP 08/2006 - 12/2012
2.5 D-4D 4WD (KLH18) 2494 CCM 117 HP 09/2006 - 12/2012
HIACE IV Van (__H1_, __H2_)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KLH12, KLH22) 2494 CCM 88 HP 08/2001 - 08/2006
2.5 D-4D (KLH12, KLH22) 2494 CCM 102 HP 08/2001 - 08/2006
2.5 D-4D 4WD (KLH18, KLH28) 2494 CCM 102 HP 08/2001 - 08/2006
2.5 D-4D 4WD (KLH18, KLH28) 2494 CCM 88 HP 08/2001 - 08/2004
2.5 D-4D (KLH12, KLH22) 2494 CCM 117 HP 09/2006 - 12/2012
2.5 D-4D 4WD (KLH28, KLH18) 2494 CCM 117 HP 09/2006 - 12/2012
2.5 D-4D (KLH12, KLH22) 2494 CCM 95 HP 09/2006 - 12/2012
HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200, KDH220) 2494 CCM 102 HP From 06/2004
2.5 D-4D 2494 CCM 95 HP From 09/2006
2.5 D-4D (KDH200, KDH202, KDH212, KDH222) 2494 CCM 117 HP From 09/2006
HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KDH202) 2494 CCM 102 HP From 09/2006
HILUX VI Pickup (_N1_)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KDN145, KDN150) 2494 CCM 88 HP 11/2001 - 07/2005
2.5 D-4D 4WD (KDN165, KDN170, KDN190) 2494 CCM 102 HP 11/2001 - 07/2005
HILUX VIGO VII Pickup (_N1_, _N2_, _N3_)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KUN15, KUN35) 2494 CCM 144 HP 01/2010 - 05/2015
2.5 D 4WD (KUN25) 2494 CCM 102 HP 03/2005 - 05/2015
2.5 D-4D 4WD (KUN25_, KUN25R) 2494 CCM 120 HP 06/2006 - 05/2015
2.5 D-4D (KUN15_, KUN15R) 2494 CCM 120 HP 06/2006 - 05/2015
2.5 D-4D (KUN15, KUN10) 2494 CCM 102 HP 03/2005 - 05/2015
2.5 D-4D 4WD (KUN25) 2494 CCM 144 HP 12/2007 - 05/2015
2.5 D-4D (KUN15) 2494 CCM 88 HP 08/2005 - 10/2006

The Gates 09-1620 Charge Air Hose is a replacement engine air-management component that carries or cools intake air between the turbocharger, charge cooler and engine. Its catalogue specification records AEM (Ethylene Acrylate Rubber) construction, black colour, 42 mm inner diameter 1, and 42 mm inner diameter 2. Confirm the reference, hose or core dimensions, connections, material and engine application before fitting, then inspect adjoining pipes and clamps for leaks or damage.

Function : Charge Air Hose
Material : AEM (Ethylene Acrylate Rubber)
Colour : black
Hose Length [mm] : 60
Inner Diameter 1 [mm] : 42
Inner Diameter 2 [mm] : 42
MPN 091620
  • Vendor GATES
  • SKU 09-1620
  • Barcode 5400608618488
  • TOYOTA : 1734230030 1734230050
  • User manual
  • GATES : 417711620
