Gates 5001 Timing Belt - 1
Gates 5001 Timing Belt video
Gates 5001 Timing Belt - 1
Gates 5001 Timing Belt video
GATES

Gates 5001 Timing Belt

SKU: 5001
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£23.40 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO
1750-2000 (105_)
Description Cylinder Capacity Horse Power Year
2000 (105) 1962 CCM 132 HP 10/1971 - 07/1975
VW
LT 40-55 I Platform/Chassis (293-909)
Description Cylinder Capacity Horse Power Year
2.4 i 2383 CCM 94 HP 03/1994 - 06/1996
2.4 Syncro 2384 CCM 90 HP 12/1982 - 07/1989
2.4 2384 CCM 90 HP 08/1985 - 07/1989
2.4 2383 CCM 95 HP 08/1988 - 07/1989
LT 40-55 I Van (291-512)
Description Cylinder Capacity Horse Power Year
2.4 i 2383 CCM 94 HP 01/1993 - 06/1996
2.4 2384 CCM 90 HP 12/1982 - 07/1992
2.4 4WD 2384 CCM 90 HP 12/1982 - 07/1992
LT28-50   Platform/Chassis (281-363)
Description Cylinder Capacity Horse Power Year
2.4 2384 CCM 90 HP 12/1982 - 07/1992
2.4 i 2383 CCM 94 HP 03/1994 - 06/1996
2.4 Syncro 2384 CCM 90 HP 08/1991 - 07/1992
LT28-50   Bus (281-363)
Description Cylinder Capacity Horse Power Year
2.4 2384 CCM 90 HP 12/1982 - 07/1992
2.4 i 2383 CCM 94 HP 08/1989 - 06/1996
LT28-50   Van (281-363)
Description Cylinder Capacity Horse Power Year
2.4 2384 CCM 90 HP 12/1982 - 07/1992
2.4 i 2383 CCM 94 HP 08/1989 - 06/1996

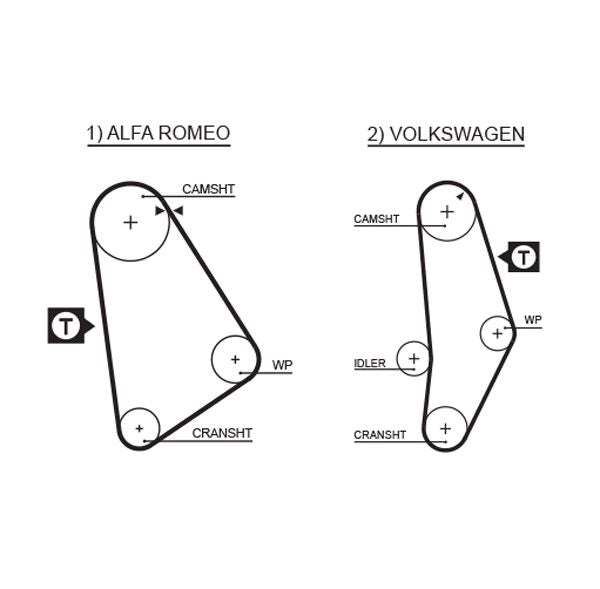

The Gates 5001 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Polychloroprene (Neoprene) belt material, 119 teeth, 19 mm width, and 1,133 mm length. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Article number of the recommended special tool : STT-1
Belt Material : Polychloroprene (Neoprene)
Number of Teeth : 119
Width [mm] : 19
Tooth Pitch [mm] : 9.525
Length [mm] : 1,133
Driven Units : Camshaft
  • Vendor GATES
  • SKU 5001
  • Barcode 5412571002386
  • VW : 073109119A
  • AUTOGEM : CSM27
  • BLUE PRINT : ADV182340
  • BORG & BECK : BFF8099
  • BORG & BECK : BTS873.92
  • BOSCH : F 026 402 355
  • BREMBO : M 85 029
  • DELPHI : HDF616
  • DELPHI : LM70014
  • DELPHI : LW90015
  • DENSO : M14
  • FEBI BILSTEIN : 05001
  • FEBI BILSTEIN : 100189
  • FEBI BILSTEIN : 100190
  • FEBI BILSTEIN : 173624
  • FEBI BILSTEIN : 48552
  • FIRST LINE : FTS873.92
  • HENGST FILTER : E566L
  • HENGST FILTER : H17WK04
  • INTERMOTOR : 60122
  • LEMFÖRDER : 11588 01
  • LEMFÖRDER : 14289 01
  • MAHLE : KC 94
  • MAHLE : KX 192D
  • MAHLE : LX 1245
  • MAHLE : OX 85D
  • MANN-FILTER : PF 1155
  • MANN-FILTER : PU 1033 x
  • MONROE : SP8114
  • NAPA : NFF2152
  • NRF : 17202
  • Schaeffler FAG : 713 6500 10
  • SKF : VKJP 1126
  • UFI : 20.020.00
  • UFI : 24.341.00
  • WAI : 16122N
  • WIX FILTERS : 51006E
  • WIX FILTERS : WF8427
  • GATES : 859515001
