Gates 5002 Timing Belt - 1
Gates 5002 Timing Belt video
Gates 5002 Timing Belt - 1
Gates 5002 Timing Belt video
GATES

Gates 5002 Timing Belt

SKU: 5002
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£13.55 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FIAT
REGATA Weekend (138_)
Description Cylinder Capacity Horse Power Year
1.6 1585 CCM 82 HP 10/1984 - 06/1989
REGATA (138_)
Description Cylinder Capacity Horse Power Year
85 1.6 1585 CCM 82 HP 10/1983 - 06/1990
LADA
1200-1500 Estate
Description Cylinder Capacity Horse Power Year
1.3 1300 1294 CCM 69 HP 10/1974 - 10/1979
1200-1600
Description Cylinder Capacity Horse Power Year
1300 (WAS21011) 1294 CCM 69 HP 08/1974 - 08/1984
1300 (VAZ2101) 1294 CCM 65 HP 05/1978 - 01/1987
1.3 2106 1294 CCM 67 HP 04/1976 - 12/2005
RIVA (2105)
Description Cylinder Capacity Horse Power Year
1200 Junior/L (2105) 1198 CCM 60 HP 09/1981 - 04/2012
1300 Spezial/L (2105) 1294 CCM 65 HP 05/1981 - 04/2012
1300 1294 CCM 66 HP 09/1983 - 12/1997
RIVA Estate (2104)
Description Cylinder Capacity Horse Power Year
1300 1294 CCM 65 HP 09/1985 - 12/1994
TOSCANA (2107)
Description Cylinder Capacity Horse Power Year
1500 1452 CCM 75 HP 09/1983 - 02/1993
1300 1294 CCM 65 HP 12/1985 - 05/2012
MITSUBISHI
GALANT Mk II (A16_)
Description Cylinder Capacity Horse Power Year
1.6 GLX (A161A) 1597 CCM 75 HP 09/1980 - 05/1984
2.0 GLS (A163) 1997 CCM 102 HP 09/1980 - 05/1984
GALANT Mk II Station Wagon (A16_V)
Description Cylinder Capacity Horse Power Year
1.6 GLX (A161V) 1597 CCM 75 HP 09/1980 - 05/1984
2.0 GLX (A163V) 1997 CCM 102 HP 09/1980 - 06/1983
LANCER I (A7_)
Description Cylinder Capacity Horse Power Year
1.6 (A73A) 1597 CCM 82 HP 01/1978 - 09/1979
LANCER CELESTE Coupe (A7_)
Description Cylinder Capacity Horse Power Year
1.6 ST (A73A) 1597 CCM 73 HP 01/1977 - 06/1981
LANCER   (A17_)
Description Cylinder Capacity Horse Power Year
1.6 (A174) 1597 CCM 82 HP 09/1979 - 02/1983
SAPPORO Mk II (A16_A)
Description Cylinder Capacity Horse Power Year
2.0 GSL (A164A) 1997 CCM 102 HP 08/1980 - 08/1983
2.0 GSR (A164A) 1997 CCM 112 HP 08/1980 - 09/1984

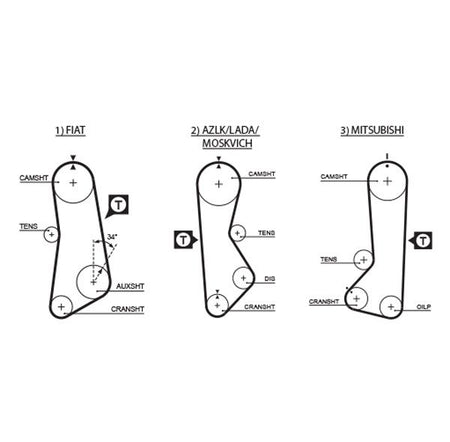

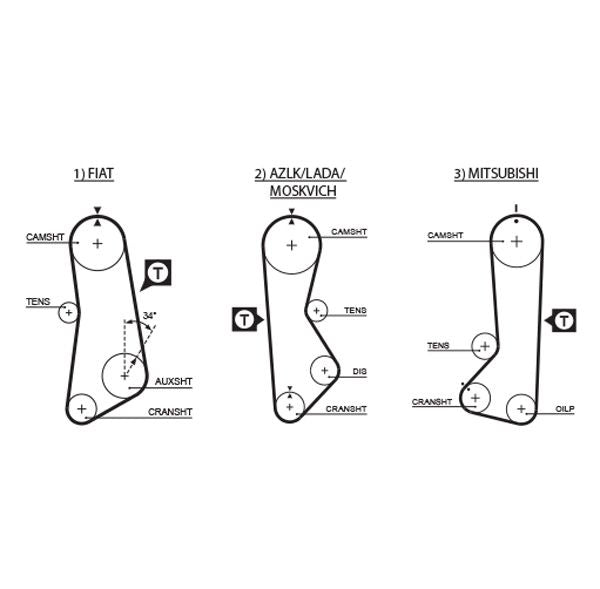

The Gates 5002 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Polychloroprene (Neoprene) belt material, 122 teeth, 19 mm width, and 1,162 mm length. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Article number of the recommended special tool : STT-1
Belt Material : Polychloroprene (Neoprene)
Number of Teeth : 122
Width [mm] : 19
Tooth Pitch [mm] : 9.525
Length [mm] : 1,162
Driven Units : Camshaft
Engine Number from : 1484419
VET Number to : 7409424
  • Vendor GATES
  • SKU 5002
  • Barcode 5412571002393
  • FIAT : 7533266 7533267
  • LADA : 2105-1006040
  • MITSUBISHI : MD008968 MD009352 MD197135
  • APEC : AWB1151
  • AUTOGEM : CSM29
  • BLUE PRINT : ADN18107
  • BORG & BECK : BTS801.88
  • BORG & BECK : BWK149
  • BOSCH : 1 237 330 162
  • BOSCH : 1 987 949 019
  • CORTECO : 49181668
  • DENSO : M17
  • DENSO : W16FSR
  • FEBI BILSTEIN : 05002
  • FEBI BILSTEIN : 08391
  • FEBI BILSTEIN : 10949
  • FEBI BILSTEIN : 17082
  • FEBI BILSTEIN : 19871
  • FEBI BILSTEIN : 21628
  • FIRST LINE : FBK149
  • FIRST LINE : FTS801.88
  • GATES : T36249
  • HELLA : 8SB 501 156-021
  • HENGST FILTER : E1055H D609
  • HENGST FILTER : H184WK
  • LEMFÖRDER : 18520 01
  • LUCAS : LKBA62158
  • MAHLE : OX 50D
  • MANN-FILTER : H 827/1 n
  • NAPA : PWB1151
  • NGK : 2910
  • Schaeffler FAG : 713 6491 20
  • Schaeffler FAG : 713 6500 20
  • Shaftec : R104R
  • Shaftec : R104RSF
  • Shaftec : R148R
  • Shaftec : R148RSF
  • Shaftec : R149R
  • Shaftec : R149RSF
  • SKF : VKBA 3454
  • SKF : VKBA 9036 CL
  • SKF : VKJP 1071
  • WIX FILTERS : 51193
  • WIX FILTERS : WF8267
  • GATES : 859515002
