Gates 5021 Timing Belt - 1
Gates 5021 Timing Belt video
Gates 5021 Timing Belt - 1
Gates 5021 Timing Belt video
GATES

Gates 5021 Timing Belt

SKU: 5021
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£30.52 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TRANSIT Bus (72E, 73E)
Description Cylinder Capacity Horse Power Year
2.3 D FT 100 (72E2X) 2358 CCM 63 HP 11/1971 - 09/1978
TRANSIT Van (V_ _)
Description Cylinder Capacity Horse Power Year
2.4 D (VVS) 2358 CCM 62 HP 01/1978 - 12/1985
TRANSIT Platform/Chassis (V_ _)
Description Cylinder Capacity Horse Power Year
2.4 D (VGL, VSL, VTL, VCS, VDS) 2358 CCM 62 HP 01/1978 - 12/1985
TRANSIT Bus (V_ _)
Description Cylinder Capacity Horse Power Year
2.4 D (VAS, VBL, VIL, VUL, VZS) 2358 CCM 62 HP 01/1978 - 12/1985

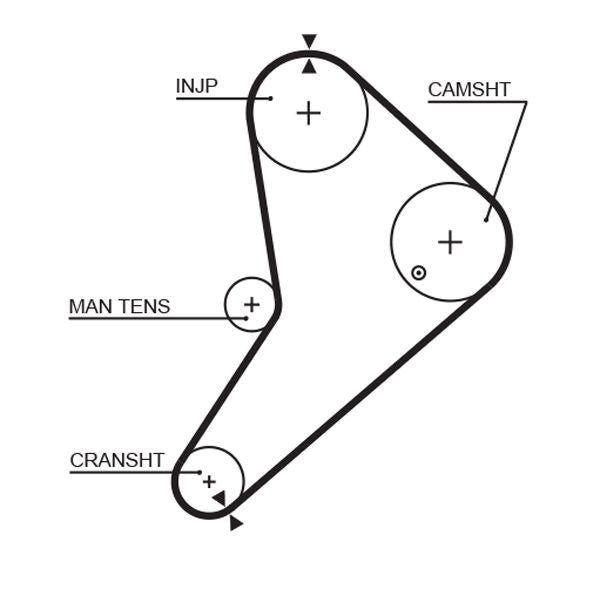

The Gates 5021 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Fiberglass tensile cord material, Polychloroprene (Neoprene) belt material, black colour, and 123 teeth. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Tensile Cord Material : Fiberglass
Belt Material : Polychloroprene (Neoprene)
Colour : black
Number of Teeth : 123
Width [mm] : 25.4
Tooth Pitch [mm] : 9.525
Length [mm] : 1,172
  • Vendor GATES
  • SKU 5021
  • Barcode 5412571002553
  • FORD : 1500991 1548762 6057197 7156K288ABA 7156K288ACA 715F6K288ACA 785F6K288AAA
  • DANA : PMTB24
  • AUTOGEM : CSM85
  • BLUE PRINT : ADJ132316
  • BLUE PRINT : ADU178004
  • BORG & BECK : BEM4218
  • BORG & BECK : BFF8034
  • BOSCH : 1 234 332 082
  • BOSCH : 1 457 434 438
  • BREMBO : M 23 048
  • BREMBO : T 23 009
  • CORTECO : 19018129
  • CORTECO : 49384669
  • DELPHI : HDF521
  • DELPHI : LM80198
  • DENSO : ITF16TT
  • DENSO : T14PR-U15
  • Fahren : FFF5003
  • FEBI BILSTEIN : 05021
  • FEBI BILSTEIN : 170057
  • FEBI BILSTEIN : 32515
  • FIRST LINE : FEM4218
  • HELLA : 8ZF 366 110-511
  • HENGST FILTER : H17WK07
  • LEMFÖRDER : 18557 01
  • LUCAS : LFDS141
  • MAHLE : KC 83D
  • MANN-FILTER : WK 828 x
  • MEYLE : 014 024 1072
  • NAPA : NFF2010
  • NAPA : NFF2285
  • NGK : 2727
  • NGK : 7559
  • Schaeffler FAG : 713 6502 10
  • Shaftec : R104R
  • Shaftec : R104RSF
  • SKF : VKBA 9013 CL
  • SKF : VKDS 328050 B
  • TRW : PMH949
  • UFI : 24.374.00
  • VALEO : 587709
  • WIX FILTERS : 33138
  • WIX FILTERS : WF8061
  • GATES : 859515021
