Home / Car Parts / Engine Parts / Timing / Timing Belt
Gates 5022 Timing Belt - 1
Gates 5022 Timing Belt video
Gates 5022 Timing Belt - 1
Gates 5022 Timing Belt video
GATES

Gates 5022 Timing Belt

5.0/5 78 reviews
SKU: 5022

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock
Out of Stock
£30.73 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

FIAT
131 (131_)
Description Cylinder Capacity Horse Power Year
2.0 Super 1995 CCM 113 HP 01/1981 - 12/1984
2.0 Racing 1995 CCM 115 HP 06/1978 - 12/1981
2.0 Abarth Rally 1995 CCM 140 HP 01/1976 - 07/1980
131 Familiare/Panorama (131_)
Description Cylinder Capacity Horse Power Year
2.0 Super 1995 CCM 113 HP 01/1981 - 12/1984
2.0 Mirafiori (131AF2) 1995 CCM 114 HP 11/1980 - 12/1984
132 (132_)
Description Cylinder Capacity Horse Power Year
2.0 1995 CCM 113 HP 01/1976 - 06/1981
2.0 i.e. 1995 CCM 122 HP 01/1980 - 12/1982
ARGENTA (132_)
Description Cylinder Capacity Horse Power Year
2000 i.e. 1995 CCM 122 HP 06/1981 - 07/1986
2000 1995 CCM 113 HP 06/1978 - 12/1985
2000 Volumex 1995 CCM 135 HP 06/1984 - 07/1985
LANCIA
BETA (828_)
Description Cylinder Capacity Horse Power Year
2000 (828CB1) 1995 CCM 115 HP 07/1978 - 07/1982
BETA Coupe (828_)
Description Cylinder Capacity Horse Power Year
2000 (828BC_) 1991 CCM 116 HP 01/1981 - 12/1984
2000 (828.BC) 1995 CCM 120 HP 04/1976 - 12/1984
2000 i.e. (828.BC) 1995 CCM 122 HP 12/1981 - 12/1984
2000 VX (828.BC) 1995 CCM 135 HP 07/1983 - 12/1984
BETA Spider (828_)
Description Cylinder Capacity Horse Power Year
2000 (828BS1) 1995 CCM 116 HP 04/1979 - 10/1986
BETA Saloon (828_)
Description Cylinder Capacity Horse Power Year
2.0 (828DB1) 1995 CCM 122 HP 06/1978 - 10/1982
BETA H.P.E. (828_)
Description Cylinder Capacity Horse Power Year
2000 i.e. (828BF) 1995 CCM 122 HP 05/1981 - 09/1984
2000 (828.BF) 1995 CCM 116 HP 04/1979 - 09/1984
2000 (828.BF) 1995 CCM 120 HP 05/1976 - 05/1978
2000 Volumex (828.BF) 1995 CCM 135 HP 07/1983 - 09/1984
SCORPION (137_)
Description Cylinder Capacity Horse Power Year
2.0 (137AS) 1995 CCM 122 HP 06/1981 - 10/1983
TREVI (828_)
Description Cylinder Capacity Horse Power Year
2000 i.e. (828DB13) 1995 CCM 122 HP 05/1980 - 01/1987
2000 Volumex (828DB17) 1995 CCM 135 HP 08/1983 - 05/1985
2000 (828.DB1) 1995 CCM 116 HP 05/1980 - 10/1984
ABARTH
STRADA
Description Cylinder Capacity Horse Power Year
130 TC 2.0 (138.A_, 138.A) 1995 CCM 130 HP 04/1983 - 12/1987
125 TC 2.0 (138.A_) 1995 CCM 125 HP 11/1981 - 12/1987

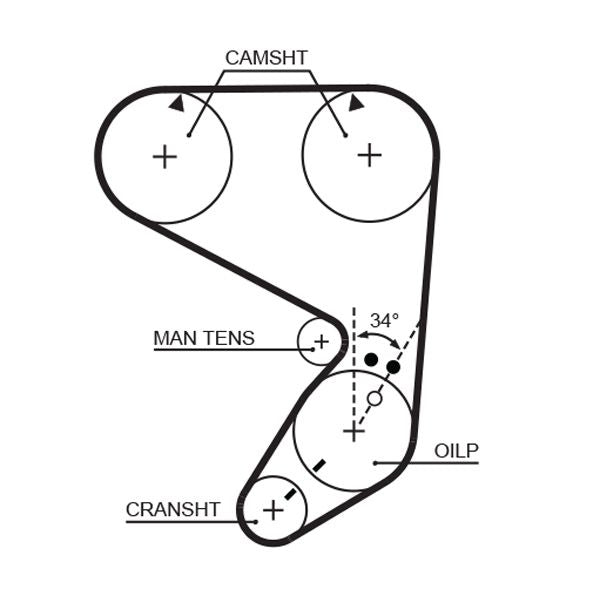

The Gates 5022 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Polychloroprene (Neoprene) belt material, 148 teeth, 19 mm width, and 1,410 mm length. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Belt Material : Polychloroprene (Neoprene)
Number of Teeth : 148
Width [mm] : 19
Tooth Pitch [mm] : 9.525
Length [mm] : 1,410
Construction Year to : 12.1984
Driven Units : Camshaft
  • Vendor GATES
  • SKU 5022
  • Barcode 5412571002560
  • FIAT : 4201738 4201739
  • LANCIA : 4201738 4201739
  • SEAT : 4201738 GC01201200 GC01201201
  • DANA : PMTB22
  • APEC : ASM1337
  • APEC : AWB1760
  • APEC : SHU95
  • AUTOGEM : CSM84
  • BLUE PRINT : ADB112120
  • BLUE PRINT : ADB112301
  • BLUE PRINT : ADB112304
  • BLUE PRINT : ADU178005
  • BORG & BECK : BEM4215
  • BORG & BECK : BFF8027
  • BORG & BECK : BFF8203
  • BORG & BECK : BST2077
  • BOSCH : 0 986 478 469
  • BOSCH : 1 234 332 300
  • BREMBO : A 12 789
  • BREMBO : M 23 065
  • CORTECO : 19018597
  • CORTECO : 49363508
  • DELPHI : LM70365
  • DELPHI : LS1219
  • DELPHI : LW62082
  • DENSO : T16EPR-U
  • DENSO : T16TT
  • Fahren : FFF5021
  • Fahren : FFF5049
  • FEBI BILSTEIN : 05022
  • FEBI BILSTEIN : 100484
  • FEBI BILSTEIN : 103290
  • FEBI BILSTEIN : 107477
  • FEBI BILSTEIN : 170004
  • FEBI BILSTEIN : 176628
  • FEBI BILSTEIN : 18769
  • FEBI BILSTEIN : 23789
  • FEBI BILSTEIN : 30171
  • FEBI BILSTEIN : 32516
  • FEBI BILSTEIN : 33814
  • FEBI BILSTEIN : 35591
  • FIRST LINE : FEM4215
  • FTE : 9072479
  • FTE : 9220358
  • HELLA : 8DB 355 000-161
  • LEMFÖRDER : 10567 02
  • LUCAS : LKBA61093
  • MANN-FILTER : WK 5002
  • MANN-FILTER : WK 5002 x
  • MANN-FILTER : WK 5005/1
  • MANN-FILTER : WK 5005/1 z
  • MANN-FILTER : WK 953/1
  • MEYLE : 014 024 1070
  • MEYLE : 300 652 0007
  • MEYLE : 300 652 0008
  • MINTEX : MFR95
  • MINTEX : MSK026
  • NAPA : NFF2059
  • NAPA : NFF2103
  • NAPA : NSM1337
  • NAPA : PWB1760
  • National : NBK1021
  • NGK : 2223
  • Schaeffler FAG : 713 6502 20
  • Schaeffler FAG : 713 6670 60
  • SKF : VKBA 3667
  • SKF : VKDS 328051 B
  • TEXTAR : 83029100
  • TEXTAR : 91029100
  • WAI : 16164N
  • WAI : S132.810
  • WIX FILTERS : WF8365
  • WIX FILTERS : WF8483
  • GATES : 859515022
