GATES

Gates 5030FI Timing Belt

SKU: 5030FI

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£11.89 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FIAT

PANDA (141_)

Description	Cylinder Capacity	Horse Power	Year
750	770 CCM	34 HP	01/1986 - 10/2003
1000 4x4	999 CCM	44 HP	01/1986 - 07/1989
1000 4x4	999 CCM	50 HP	01/1986 - 12/1992
1000	999 CCM	44 HP	01/1986 - 04/1992
1000 4x4	999 CCM	45 HP	05/1986 - 12/1994
1000 i.e. Cat	999 CCM	45 HP	10/1987 - 08/1998
1100 Trekking 4x4	1108 CCM	50 HP	10/1991 - 07/2004
1100	1108 CCM	50 HP	05/1991 - 12/1999
1100	1108 CCM	54 HP	02/1995 - 09/2003
1100 4x4	1108 CCM	54 HP	02/1995 - 07/2004
1000	999 CCM	50 HP	01/1985 - 12/1992

PANDA Hatchback Van (141_)

Description	Cylinder Capacity	Horse Power	Year
750	764 CCM	34 HP	01/1986 - 07/1992
1000	999 CCM	44 HP	01/1986 - 02/1992
1000 i.e	999 CCM	45 HP	08/1992 - 02/2004

PUNTO (176_)

Description	Cylinder Capacity	Horse Power	Year
55 1.1	1108 CCM	54 HP	09/1993 - 09/1999

PUNTO Van (176_)

Description	Cylinder Capacity	Horse Power	Year
1.1	1108 CCM	54 HP	04/1996 - 02/2000

UNO (146_, 158_)

Description	Cylinder Capacity	Horse Power	Year
45 1.0 (146A.ED)	999 CCM	44 HP	06/1986 - 12/1993
50 i.e. 1.1	1116 CCM	49 HP	06/1992 - 12/1993

LANCIA

Y10 (156_)

Description	Cylinder Capacity	Horse Power	Year
1.0 Fire (156B, 156AD)	999 CCM	44 HP	06/1985 - 06/1991
1.0 Fire Catalytic-Conv (156AE)	999 CCM	45 HP	10/1987 - 02/1992
1.1 i.e. Fire (156AG)	1108 CCM	50 HP	07/1989 - 09/1995
1.0 Turbo (156D)	1049 CCM	84 HP	03/1985 - 02/1989
1.1 i.e Fire (156AC)	1108 CCM	57 HP	08/1989 - 06/1992
1.0 Fire (156AA)	999 CCM	45 HP	03/1985 - 06/1989

AUTOBIANCHI

Y10

Description	Cylinder Capacity	Horse Power	Year
1.0	999 CCM	45 HP	03/1985 - 10/1995
1.0 4WD	999 CCM	50 HP	12/1986 - 10/1995
1.0 Cat	999 CCM	45 HP	10/1987 - 10/1995
1.1	1108 CCM	57 HP	06/1989 - 10/1995
1.1 4WD	1108 CCM	57 HP	06/1989 - 10/1995
1.1 i.e. Cat	1108 CCM	57 HP	09/1990 - 10/1995
1.1 4WD (156AC)	1108 CCM	50 HP	02/1990 - 04/1991
1.1	1108 CCM	50 HP	02/1990 - 09/1992

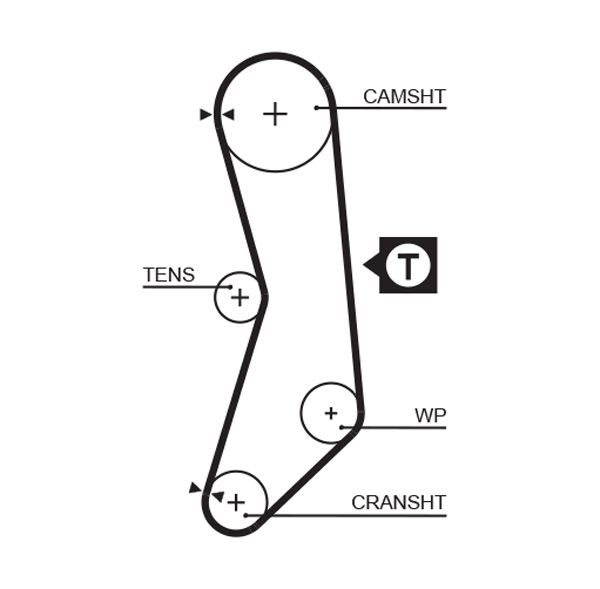

The Gates 5030FI Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Fiberglass tensile cord material, Polychloroprene (Neoprene) belt material, black colour, and 104 teeth. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt

Article number of the recommended special tool : STT-1

Tensile Cord Material : Fiberglass

Belt Material : Polychloroprene (Neoprene)

Colour : black

Number of Teeth : 104

Width [mm] : 15

Tooth Pitch [mm] : 9.525

Length [mm] : 991

Construction Year to : 12.1997

Driven Units : Camshaft

Gates 5030FI Timing Belt
