Gates 5064 Timing Belt - 1
Gates 5064 Timing Belt video
Gates 5064 Timing Belt - 1
Gates 5064 Timing Belt video
GATES

Gates 5064 Timing Belt

SKU: 5064
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£27.83 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TRANSIT Van (V_ _)
Description Cylinder Capacity Horse Power Year
2.5 D (VVL) 2496 CCM 68 HP 10/1983 - 10/1986
TRANSIT Platform/Chassis (V_ _)
Description Cylinder Capacity Horse Power Year
2.5 D (VGL, VSL, VTL, VCS, VDS) 2496 CCM 68 HP 10/1983 - 10/1986
TRANSIT Bus (V_ _)
Description Cylinder Capacity Horse Power Year
2.5 D (VAS, VBL, VIL, VUL, VZS) 2496 CCM 68 HP 10/1983 - 10/1986
2.4 D (VAS, VBL, VIL, VUL, VZS) 2496 CCM 68 HP 10/1983 - 10/1986
TRANSIT Van (T_ _)
Description Cylinder Capacity Horse Power Year
2.5 D (TAL, TAS, TGL, TWS) 2496 CCM 71 HP 10/1988 - 09/1991
2.5 D (TAL, TAS, TGL, TWS) 2496 CCM 68 HP 01/1986 - 09/1991
2.5 D 2496 CCM 82 HP 10/1985 - 03/1991
TRANSIT Platform/Chassis (T_ _)
Description Cylinder Capacity Horse Power Year
2.5 DI (TTE, TTL, TTS, TUL) 2496 CCM 71 HP 09/1988 - 09/1992
2.5 D (TTL, TTS, TUL, TUS, TTE) 2496 CCM 68 HP 01/1986 - 01/1989
TRANSIT Bus (T_ _)
Description Cylinder Capacity Horse Power Year
2.5 D (TBS, TCL, TCS, TEL, TES) 2496 CCM 68 HP 12/1985 - 01/1989
2.5 D (TBS, TEL, TES) 2496 CCM 71 HP 09/1988 - 09/1992
2.5 D 2496 CCM 82 HP 12/1985 - 01/1989
TRANSIT Van (E_ _)
Description Cylinder Capacity Horse Power Year
2.5 DI (EAL, EAS) 2496 CCM 70 HP 05/1991 - 06/1994
2.5 DI (EAS, EAL) 2496 CCM 80 HP 05/1991 - 06/1994
2.5 TD (EAS, EAL) 2496 CCM 101 HP 05/1991 - 06/1994
METROCAB
TAXI
Description Cylinder Capacity Horse Power Year
2.5 D 2496 CCM 71 HP 01/1991 - 05/2006

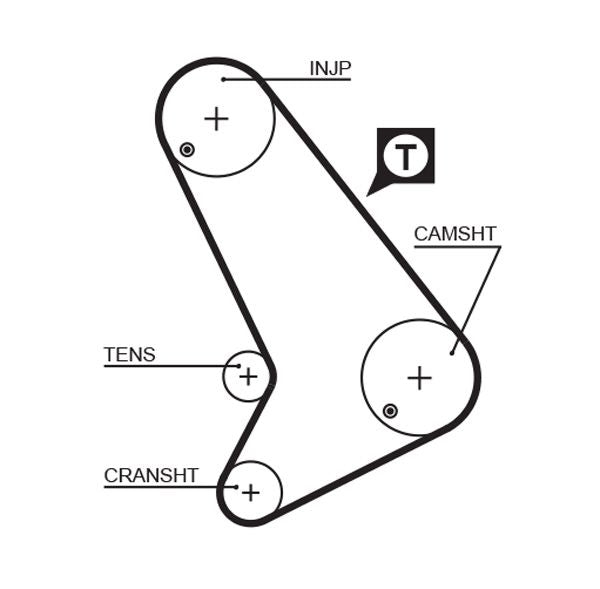

The Gates 5064 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Polychloroprene (Neoprene) belt material, 130 teeth, 25.4 mm width, and 1,238 mm length. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Article number of the recommended special tool : STT-1
Belt Material : Polychloroprene (Neoprene)
Number of Teeth : 130
Width [mm] : 25.4
Tooth Pitch [mm] : 9.525
Length [mm] : 1,238
  • Vendor GATES
  • SKU 5064
  • Barcode 5412571002973
  • FORD : 6138677 844F6K288AB
  • DANA : PMTB57
  • APEC : ADS1575LR
  • APEC : BCY1337
  • APEC : BWC8204
  • APEC : SHU33
  • AUTOGEM : CSM210
  • BLUE PRINT : ADA104406
  • BLUE PRINT : ADN146276
  • BLUE PRINT : ADN17269
  • BLUE PRINT : ADT32389
  • BORG & BECK : BBW1850
  • BORG & BECK : BDL6813
  • BORG & BECK : BFF8294
  • BOSCH : 0 204 123 406
  • BOSCH : 0 986 475 916
  • BOSCH : 0 986 478 566
  • BOSCH : 1 987 949 072
  • BREMBO : A 12 424
  • BREMBO : M 85 083
  • CORTECO : 19018152
  • CORTECO : 19018557
  • CORTECO : 49399890
  • DELPHI : LM80315
  • DELPHI : LS1102
  • DELPHI : LW90021
  • DELPHI : TC1423
  • DENSO : W16EPB10
  • DENSO : W16TT
  • FEBI BILSTEIN : 03291
  • FEBI BILSTEIN : 03292
  • FEBI BILSTEIN : 103221
  • FEBI BILSTEIN : 10951
  • FEBI BILSTEIN : 198596
  • FEBI BILSTEIN : 21635
  • FEBI BILSTEIN : 37174
  • FIRST LINE : FDL6813
  • FTE : 9210138
  • FTE : 9220309
  • GATES : 5222
  • GATES : ETM1121
  • HELLA : 8AW 355 532-061
  • HELLA : 8DD 355 102-711
  • LEMFÖRDER : 12168 01
  • LEMFÖRDER : 18558 01
  • LEMFÖRDER : 37215 01
  • MANN-FILTER : H 1053 n
  • MEYLE : 16-16 060 0006/HD
  • MINTEX : MDC1005
  • MINTEX : MFR33
  • MONROE : L25616
  • NAPA : NCY1099
  • NAPA : NDS1575LR
  • National : NWC5058
  • NGK : 5156
  • NGK : 6597
  • Schaeffler FAG : 818 0313 10
  • Shaftec : R132LR
  • Shaftec : R132LRSF
  • SKF : VKDS 346021
  • TEXTAR : 91003600
  • TEXTAR : 92056800
  • TRW : DF2596
  • TRW : JTS436
  • WIX FILTERS : WF8503
  • GATES : 859515064
