GATES

Gates 5074XS Timing Belt

SKU: 5074XS
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£21.14 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
COLT Mk II (C1_A)
Description Cylinder Capacity Horse Power Year
1.8 GL Diesel (C14A) 1795 CCM 58 HP 02/1984 - 09/1986
1.8 GL Diesel (C14A) 1795 CCM 60 HP 09/1986 - 04/1988
COLT Mk III (C5_A)
Description Cylinder Capacity Horse Power Year
1.8 Diesel GLX (C54A) 1795 CCM 60 HP 04/1988 - 05/1992
CORDIA (A21_A, AB, AC)
Description Cylinder Capacity Horse Power Year
1.6 GSL (A212A) 1597 CCM 75 HP 10/1982 - 12/1986
1.6 Turbo (A212A) 1597 CCM 114 HP 10/1982 - 05/1985
1.8 GSL (A215A) 1755 CCM 90 HP 10/1986 - 07/1989
1.8 Turbo ECi (A213A) 1795 CCM 136 HP 10/1984 - 07/1989
ECLIPSE   (D2_A)
Description Cylinder Capacity Horse Power Year
1.8 (D21A) 1755 CCM 92 HP 12/1989 - 03/1994
GALANT Mk II (A16_)
Description Cylinder Capacity Horse Power Year
1.6 GLX (A161A) 1597 CCM 75 HP 09/1980 - 05/1984
2.0 GLS (A163) 1997 CCM 102 HP 09/1980 - 05/1984
2.0 Turbo ECi (A164) 1997 CCM 170 HP 05/1982 - 05/1984
GALANT Mk II Station Wagon (A16_V)
Description Cylinder Capacity Horse Power Year
1.6 GLX (A161V) 1597 CCM 75 HP 09/1980 - 05/1984
2.0 GLX (A163V) 1997 CCM 102 HP 09/1980 - 06/1983
GALANT Mk III (E1_A)
Description Cylinder Capacity Horse Power Year
1.6 GLX (E11A) 1597 CCM 75 HP 06/1984 - 04/1990
2.0 GLS (E15A) 1997 CCM 90 HP 06/1986 - 04/1990
2.0 GLS (E15A) 1997 CCM 102 HP 06/1984 - 04/1990
2.0 Turbo ECi (E15A) 1997 CCM 150 HP 06/1984 - 04/1990
2.4 GLS (E16A) 2351 CCM 112 HP 07/1985 - 04/1990
1.8 Turbo-D (E14A) 1795 CCM 82 HP 06/1984 - 04/1990
GALANT Mk IV Saloon (E3_A)
Description Cylinder Capacity Horse Power Year
1.8 (E32A) 1755 CCM 86 HP 11/1987 - 08/1990
1.8 Turbo-D (E34A) 1795 CCM 75 HP 12/1987 - 10/1992
1.8 (E32A) 1755 CCM 90 HP 11/1987 - 10/1992
2.0 4WD (E39A, E38A, E33A) 1997 CCM 109 HP 12/1988 - 10/1992
2.0 (E39A, E38A, E33A) 1997 CCM 109 HP 11/1987 - 10/1992
1.8 D (E34A) 1795 CCM 60 HP 01/1988 - 10/1992
GALANT Mk IV (E3_A)
Description Cylinder Capacity Horse Power Year
1.8 Turbo-D (E34A) 1795 CCM 75 HP 11/1988 - 10/1992
1.8 (E32A) 1755 CCM 90 HP 11/1988 - 10/1992
2.0 4WD (E33A, E38A, E39A) 1997 CCM 109 HP 04/1989 - 10/1992
2.0 GTI 16V (E39A, E38A, E33A) 1997 CCM 144 HP 11/1988 - 10/1992
2.0 (E39A, E38A, E33A) 1997 CCM 109 HP 04/1989 - 10/1992
1.8 1755 CCM 86 HP 11/1988 - 10/1992
L 300 / DELICA II Van (L03_P)
Description Cylinder Capacity Horse Power Year
1.8 (L035P) 1795 CCM 82 HP 03/1983 - 10/1986
L 300 / DELICA II Bus (L03_P/G, L0_2P)
Description Cylinder Capacity Horse Power Year
1.8 4WD (L035G) 1795 CCM 82 HP 08/1984 - 02/1987
1.8 (L035P) 1795 CCM 82 HP 03/1983 - 10/1986
L 300 III Bus (P0_W, P1_W, P2_W, P3_W)
Description Cylinder Capacity Horse Power Year
2.0 4WD (P23W, P03W, P13W) 1997 CCM 88 HP 12/1986 - 05/2004
2.0 (P03W, P13W) 1997 CCM 87 HP 11/1986 - 05/2004
2.0 4WD (P23W, P03W, P13W) 1997 CCM 90 HP 11/1986 - 05/2004
2.4 4WD (P24W) 2351 CCM 109 HP 11/1986 - 12/1990
2.4 4WD (P24W) 2351 CCM 112 HP 08/1986 - 05/2004
2.0 (P03W, P13W) 1997 CCM 90 HP 11/1986 - 05/2004
2.4 (P04W, P14W) 2351 CCM 112 HP 11/1990 - 05/2004
2.0 (P03W, P13W) 1997 CCM 88 HP 11/1986 - 07/1988
L 300 III Van (P0_V, P1_V, P2_V)
Description Cylinder Capacity Horse Power Year
2.0 (P03V, P13V) 1997 CCM 87 HP 11/1986 - 05/1996
2.4 (P24V, P24W) 2351 CCM 112 HP 11/1986 - 08/1997
L200 (K3_T, K2_T, K1_T, K0_T)
Description Cylinder Capacity Horse Power Year
2.0 1997 CCM 91 HP 10/1986 - 04/1994
2.0 4WD 1997 CCM 86 HP 02/1987 - 05/1994
LANCER   (A17_)
Description Cylinder Capacity Horse Power Year
2.0 Turbo ECi (A176) 1997 CCM 170 HP 03/1981 - 02/1983
LANCER Mk III (C1_A, C6_A)
Description Cylinder Capacity Horse Power Year
1.8 Diesel (C14AS) 1795 CCM 58 HP 01/1984 - 09/1986
1.8 Diesel (C14AS) 1795 CCM 60 HP 09/1986 - 04/1988
LANCER Mk III Station Wagon (C1_V, C3_V)
Description Cylinder Capacity Horse Power Year
1.8 D (C14V) 1795 CCM 58 HP 09/1985 - 09/1986
1.8 D (C14V) 1795 CCM 60 HP 08/1986 - 06/1992
LANCER Mk IV (C6_A, C7_A)
Description Cylinder Capacity Horse Power Year
1.8 GLX Diesel (C64A) 1795 CCM 60 HP 04/1988 - 05/1992
LANCER Mk IV Hatchback (C6_A, C7_A)
Description Cylinder Capacity Horse Power Year
1.8 D (C64A) 1795 CCM 60 HP 04/1988 - 05/1992
PAJERO/SHOGUN   Canvas Top (V2_C, V4_C)
Description Cylinder Capacity Horse Power Year
2.4 (V21C) 2351 CCM 112 HP 04/1991 - 04/2000
PAJERO/SHOGUN Mk II (V3_W, V2_W, V4_W, V5_W)
Description Cylinder Capacity Horse Power Year
2.4 (V21W) 2351 CCM 112 HP 04/1991 - 10/1999
SAPPORO Mk II (A16_A)
Description Cylinder Capacity Horse Power Year
2.0 GSL (A164A) 1997 CCM 102 HP 08/1980 - 08/1983
2.0 GSR (A164A) 1997 CCM 112 HP 08/1980 - 09/1984
2.0 Turbo ECi (A164) 1997 CCM 170 HP 08/1982 - 08/1983
SAPPORO Mk III (E16A)
Description Cylinder Capacity Horse Power Year
2.4 (E16A) 2351 CCM 124 HP 06/1987 - 08/1990
SPACE WAGON VAN (D0_V/W)
Description Cylinder Capacity Horse Power Year
1.8 TD (D09V) 1795 CCM 75 HP 10/1983 - 09/1987
SPACE WAGON (D0_V/W)
Description Cylinder Capacity Horse Power Year
1.8 GLX (D05V, D05W) 1755 CCM 90 HP 01/1984 - 12/1988
2.0 GLX (D04W) 1997 CCM 84 HP 06/1986 - 05/1988
2.0 GLX 4WD (D08W) 1997 CCM 84 HP 06/1986 - 05/1988
2.0 GLXi (D04W) 1997 CCM 101 HP 06/1988 - 04/1991
2.0 GLXi 4WD (D08W) 1997 CCM 101 HP 06/1988 - 04/1991
2.0 4WD (D08W) 1997 CCM 102 HP 03/1985 - 04/1991
1.8 TD (D09V, D09W) 1795 CCM 75 HP 06/1986 - 04/1991
1.8 4WD (D05V, D05W) 1755 CCM 90 HP 10/1987 - 08/1988
SPACE WAGON (N3_W, N4_W)
Description Cylinder Capacity Horse Power Year
1.8 TD (N35W) 1795 CCM 75 HP 10/1991 - 10/1998
2.4 (N34W) 2351 CCM 120 HP 10/1991 - 10/1997
STARION (A18_A)
Description Cylinder Capacity Horse Power Year
2.0 Turbo ECi (A183A) 1997 CCM 170 HP 06/1982 - 12/1985
2.0 Turbo ECi (A183A) 1997 CCM 180 HP 05/1985 - 08/1987
TREDIA (A21_)
Description Cylinder Capacity Horse Power Year
1.6 GLS (A212) 1597 CCM 75 HP 09/1982 - 10/1987
1.6 Turbo (A212) 1597 CCM 114 HP 09/1982 - 05/1985
1.8 GLS (A215) 1755 CCM 90 HP 08/1984 - 07/1986
1.8 Turbo (A215A) 1796 CCM 136 HP 08/1984 - 07/1986
1.8 GLS 4WD (A215G) 1755 CCM 90 HP 04/1985 - 07/1986
HYUNDAI
H-1 / STAREX Bus (A1)
Description Cylinder Capacity Horse Power Year
2.4 2351 CCM 112 HP 06/1997 - 04/2004
2.4 4WD 2351 CCM 112 HP 02/1998 - 04/2004
H-1 Van (A1)
Description Cylinder Capacity Horse Power Year
2.4 2351 CCM 112 HP 03/2000 - 04/2004
H100 Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.4 2351 CCM 114 HP 05/1996 - 12/1997
H100 Bus (P)
Description Cylinder Capacity Horse Power Year
2.4 2351 CCM 114 HP 01/1997 - 03/2000
2.4 2351 CCM 122 HP 07/1993 - 03/2000
PORTER Van
Description Cylinder Capacity Horse Power Year
2.4 2351 CCM 111 HP 03/1996 - 04/2004
SONATA   (Y-2)
Description Cylinder Capacity Horse Power Year
2.0 i 1997 CCM 109 HP 01/1991 - 10/1993
1.8 i 1796 CCM 95 HP 09/1988 - 10/1993
2.4 i 2351 CCM 113 HP 09/1988 - 08/1991
2.0 i 1997 CCM 101 HP 09/1988 - 08/1991
1.8 1796 CCM 99 HP 06/1989 - 03/1991
SONATA Mk II (Y-3)
Description Cylinder Capacity Horse Power Year
2.0 i 1997 CCM 105 HP 06/1994 - 08/1996
1.8 i 1796 CCM 98 HP 05/1993 - 06/1998
2.0 i 1997 CCM 95 HP 08/1996 - 06/1998
STELLAR (F31_, SF2_)
Description Cylinder Capacity Horse Power Year
2.0 GSL 1997 CCM 83 HP 09/1986 - 12/1989

The Gates 5074XS Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Fiberglass tensile cord material, HNBR (hydrogenated nitrile butadiene rubber) belt material, black colour, and 55 teeth. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Article number of the recommended special tool : STT-1
Tensile Cord Material : Fiberglass
Belt Material : HNBR (hydrogenated nitrile butadiene rubber)
Colour : black
Number of Teeth : 55
Width [mm] : 12.7
Tooth Pitch [mm] : 9.525
Length [mm] : 524

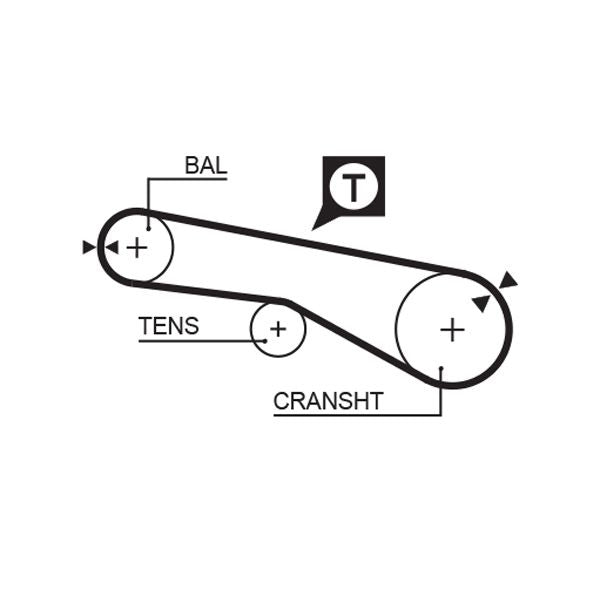

Driven Units : Balance shaft
  • Vendor GATES
  • SKU 5074XS
  • Barcode 5412571008630
  • MITSUBISHI : XD106103 MD106103 MD015311 MD041407 MD160103
  • HYUNDAI : 23356-32010 23356-32020 23356-32030 23356-32050 23356-32051
  • DANA : PMTB92
  • BLUE PRINT : ADC47506
  • BLUE PRINT : ADG07349
  • BOSCH : 1 987 949 486
  • LEMFÖRDER : 18639 01
  • GATES : 5074
  • GATES : 859715074
