Gates 5101A Timing Belt - 1
Gates 5101A Timing Belt video
Gates 5101A Timing Belt - 1
Gates 5101A Timing Belt video
GATES

Gates 5101A Timing Belt

SKU: 5101A
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£18.03 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

OPEL
MANTA B (58_, 59_)
Description Cylinder Capacity Horse Power Year
1.8 S 1796 CCM 90 HP 07/1982 - 08/1987
MANTA B Hatchback (53_, 55_)
Description Cylinder Capacity Horse Power Year
1.8 S 1796 CCM 90 HP 07/1982 - 08/1987
VAUXHALL
CARLTON Mk II Estate
Description Cylinder Capacity Horse Power Year
1.8 S 1796 CCM 90 HP 11/1982 - 08/1986
CARLTON Mk II Saloon
Description Cylinder Capacity Horse Power Year
1.8 S 1796 CCM 88 HP 12/1982 - 08/1986
1.8 1796 CCM 75 HP 09/1981 - 08/1986

The Gates 5101A Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Polychloroprene (Neoprene) belt material, 45 teeth, 10 mm width, and 429 mm length. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Belt Material : Polychloroprene (Neoprene)
Number of Teeth : 45
Width [mm] : 10
Tooth Pitch [mm] : 9.525
Length [mm] : 429
Construction Year to : 07.1987

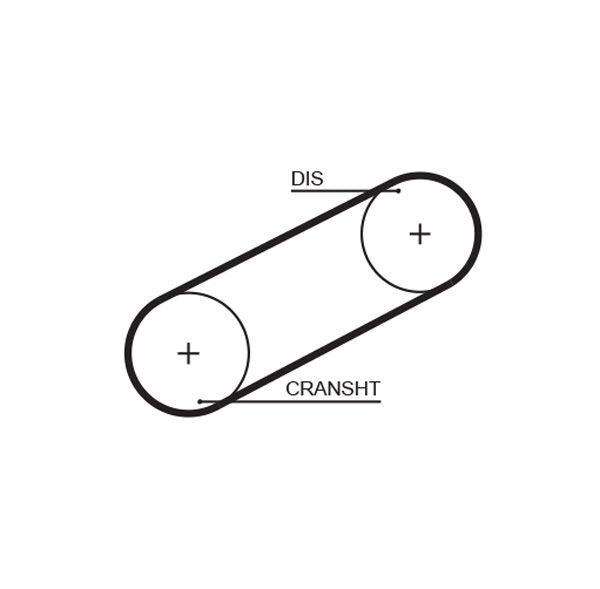

Driven Units : Ignition Distributor
  • Vendor GATES
  • SKU 5101A
  • Barcode 5412571003345
  • OPEL : 1211700 90128169
  • VAUXHALL : 1112700 1211700 90128169
  • DANA : PMTB78
  • GATES : 859515101
