Gates 5116 Timing Belt
Your selected vehicle
Regular price
£31.43
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

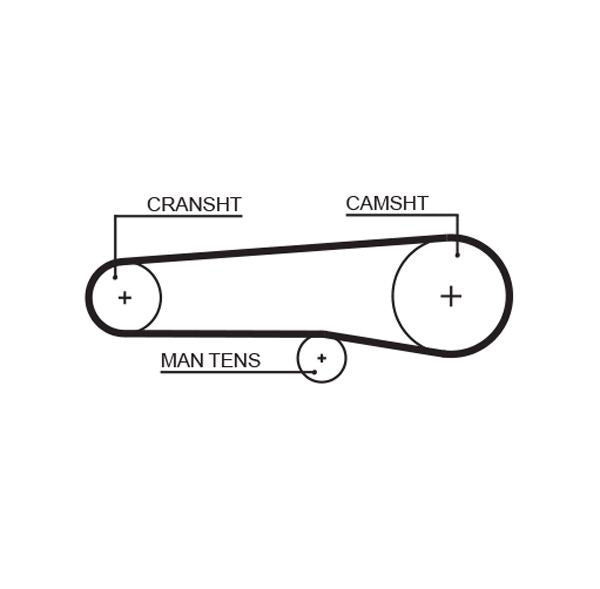

The Gates 5116 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Polychloroprene (Neoprene) belt material, 107 teeth, 19 mm width, and 1,019 mm length. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.
Function :
Timing Belt
Belt Material :
Polychloroprene (Neoprene)
Number of Teeth :
107
Width [mm] :
19
Tooth Pitch [mm] :
9.525
Length [mm] :
1,019
Construction Year from :
10.1981
Construction Year to :
03.1985
Driven Units :
Camshaft
- Vendor GATES
- SKU 5116
- LANCIA : 82317933
- APEC : SHU232
- BLUE PRINT : ADK81801
- BLUE PRINT : ADM51801
- BLUE PRINT : ADM51803
- BLUE PRINT : ADM51805
- BLUE PRINT : ADM51812
- BLUE PRINT : ADN11801
- BORG & BECK : BFF8248
- BORG & BECK : BTR4532
- BorgWarner (BERU) : GN005
- BOSCH : 0 986 478 032
- BREMBO : M 23 006
- BREMBO : T 61 030
- CORTECO : 19025762
- DELPHI : BG2180
- DELPHI : LM70346
- DELPHI : LS1147
- DENSO : DG-146
- FEBI BILSTEIN : 01854
- FEBI BILSTEIN : 05651
- FEBI BILSTEIN : 176182
- FIRST LINE : FTR4532
- FTE : 9072422
- HELLA : 8SB 003 978-041
- HENGST FILTER : H214WK
- LUCAS : LKBA66107
- MAHLE : KL 483
- MEYLE : 014 024 0022
- MEYLE : 616 020 5588
- Schaeffler FAG : 840 0813 10
- Shaftec : ME111LR
- Shaftec : ME111LRSF
- TRW : JTE337
- UFI : 24.450.00
- VALEO : 345148
- WIX FILTERS : WF8545
- GATES : 859515116
