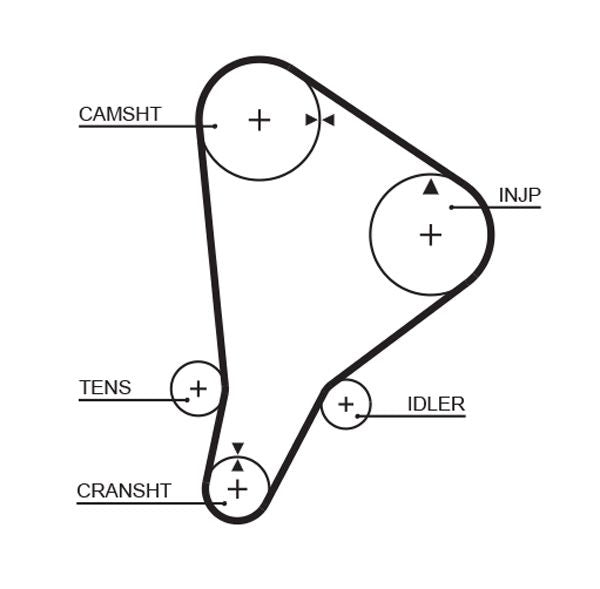

Gates 5118 Timing Belt - 1
Gates 5118 Timing Belt video
Gates 5118 Timing Belt - 1
Gates 5118 Timing Belt video
GATES

Gates 5118 Timing Belt

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 5118

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£49.83 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA
4 RUNNER I (_N5_, _N6_, _N7_)
Description Cylinder Capacity Horse Power Year
2.4 D (LN60) 2446 CCM 75 HP 07/1984 - 05/1988
CRESSIDA Saloon (_X6_)
Description Cylinder Capacity Horse Power Year
2.2 D (LX60) 2188 CCM 67 HP 09/1980 - 04/1985
CRESSIDA Station Wagon (_X6_)
Description Cylinder Capacity Horse Power Year
2.2 D (LX60_, LX60) 2188 CCM 67 HP 09/1980 - 04/1985
CRESSIDA Saloon (_X7_)
Description Cylinder Capacity Horse Power Year
2.4 TD (LX71) 2446 CCM 86 HP 01/1985 - 10/1988
CROWN (_S1_)
Description Cylinder Capacity Horse Power Year
2.2 D (LS110_, LS110) 2188 CCM 72 HP 04/1980 - 07/1983
DYNA 150 Platform/Chassis (_Y_)
Description Cylinder Capacity Horse Power Year
2.4 D (LY60_) 2446 CCM 73 HP 08/1985 - 08/1987
DYNA Platform/Chassis (LH8_)
Description Cylinder Capacity Horse Power Year
2.4 D (LH80_, LY50_, LY60_) 2446 CCM 83 HP 08/1985 - 05/1995
2.4 D (LH80_, LH80R) 2446 CCM 75 HP 08/1987 - 04/1995
HIACE III Bus (_H5_, _H6_, _H7_, _H8_, _H9_)
Description Cylinder Capacity Horse Power Year
2.4 D (LH51, LH61, LH66) 2446 CCM 75 HP 04/1984 - 08/1989
2.2 D (LH50, LH60) 2188 CCM 67 HP 12/1982 - 11/1989
2.4 D 4WD (LH56, LH66) 2446 CCM 73 HP 01/1987 - 08/1989
HIACE III Van (_H5_, _H6_, _H7_, _H8_, _H9_)
Description Cylinder Capacity Horse Power Year
2.2 D (LH50, LH60) 2188 CCM 67 HP 12/1982 - 11/1989
2.4 D (LH61, LH51) 2446 CCM 75 HP 12/1982 - 11/1989
HILUX IV Pickup (_N5_, _N6_)
Description Cylinder Capacity Horse Power Year
2.4 D 4WD (LN65) 2446 CCM 75 HP 08/1983 - 07/1988
2.2 D (LN50, LN55) 2188 CCM 67 HP 08/1983 - 08/1984
LAND CRUISER (_J7_, _JL7_)
Description Cylinder Capacity Horse Power Year
2.4 D (LJ70_, LJ70R) 2446 CCM 72 HP 11/1984 - 10/1985
2.4 TD (LJ70_, LJ73_, LJ70RV) 2446 CCM 86 HP 10/1985 - 05/1990

The Gates 5118 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Polychloroprene (Neoprene) belt material, 130 teeth, 25.4 mm width, and 1,238 mm length. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Belt Material : Polychloroprene (Neoprene)
Number of Teeth : 130
Width [mm] : 25.4
Tooth Pitch [mm] : 9.525
Length [mm] : 1,238
Driven Units : Camshaft
  • Vendor GATES
  • SKU 5118
  • Barcode 5412571003512
  • TOYOTA : 13568-54050 13568-54051 13568-59025 13568-59026 13568-59027
  • DANA : PMTB68
  • APEC : AWB1088
  • APEC : BCY1010
  • APEC : BWC8164
  • APEC : MCY171
  • BLUE PRINT : ADBP230046
  • BLUE PRINT : ADN14450
  • BLUE PRINT : ADT37508
  • BORG & BECK : BBW1680
  • BORG & BECK : BFF8076
  • BORG & BECK : BFF8307
  • BORG & BECK : BTR4534
  • BORG & BECK : BWK571
  • BorgWarner (BERU) : Z325
  • BOSCH : 0 204 122 226
  • BOSCH : 0 242 135 524
  • BOSCH : 0 986 475 759
  • BOSCH : 1 987 482 509
  • BOSCH : 1 987 948 716
  • BOSCH : F 026 003 226
  • BREMBO : 09.8852.10
  • BREMBO : 09.8852.11
  • BREMBO : A 12 395
  • BREMBO : M 23 109
  • DELPHI : BG2211
  • DELPHI : LM70030
  • DELPHI : LW60002
  • DENSO : FXE20HR11
  • DENSO : IXEH20TT
  • FEBI BILSTEIN : 04092
  • FEBI BILSTEIN : 05118
  • FEBI BILSTEIN : 06126
  • FEBI BILSTEIN : 06192
  • FEBI BILSTEIN : 108967
  • FIRST LINE : FBK571
  • FIRST LINE : FTR4534
  • FTE : 9210256
  • FTE : 9220077
  • GATES : 3047
  • GATES : 6230MC
  • HELLA : 8AM 355 500-671
  • HELLA : 8AW 355 533-241
  • LEMFÖRDER : 18576 01
  • LUCAS : LKBA66092
  • LUCAS : LKBA66097
  • LUCAS : LSP013
  • MAHLE : KC 213
  • MANN-FILTER : WK 10 051
  • MANN-FILTER : WK 854/5
  • MEYLE : 014 024 0001
  • MEYLE : 014 033 0092
  • MINTEX : MDC271
  • NAPA : NFF2047
  • NAPA : PWB1088
  • National : NWC5003
  • Schaeffler FAG : 713 6674 70
  • SKF : VKBA 1498
  • SKF : VKBA 6645
  • TEXTAR : 92022400
  • TRW : BWK156
  • TRW : DF1566
  • TRW : GCH2632
  • TRW : PMD168
  • WAI : M5-701
  • WIX FILTERS : WF8318
  • GATES : 859515118
