Gates 5119 Timing Belt - 1
Gates 5119 Timing Belt video
Gates 5119 Timing Belt - 1
Gates 5119 Timing Belt video
GATES

Gates 5119 Timing Belt

SKU: 5119
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£26.48 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HONDA
ACTY Platform/Chassis (TN)
Description Cylinder Capacity Horse Power Year
0.5 545 CCM 31 HP 10/1978 - 06/1987
ACTY (TN)
Description Cylinder Capacity Horse Power Year
0.6 (TN) 545 CCM 31 HP 08/1979 - 06/1986
GL
Description Cylinder Capacity Horse Power Year
GL 1100 Gold Wing DX (SC02) 1085 CCM 83 HP From 01/1980

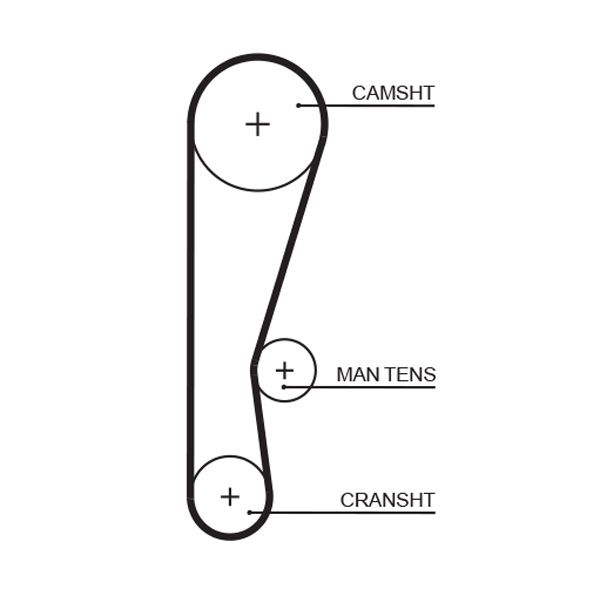

The Gates 5119 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Fiberglass tensile cord material, Polychloroprene (Neoprene) belt material, black colour, and 87 teeth. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Tensile Cord Material : Fiberglass
Belt Material : Polychloroprene (Neoprene)
Colour : black
Number of Teeth : 87
Width [mm] : 19
Tooth Pitch [mm] : 9.525
Length [mm] : 829
  • Vendor GATES
  • SKU 5119
  • Barcode 5412571003529
  • HONDA : 14400-679-003 14400-679-004 14400-679-014 14400371004 14400371014
  • DANA : PMTB117 PMTB85
  • APEC : AWB1257
  • APEC : BCY1228
  • BLUE PRINT : ADB114390
  • BLUE PRINT : ADN14463
  • BORG & BECK : BBW1685
  • BORG & BECK : BFF8263
  • BORG & BECK : BTR4528
  • BORG & BECK : BWK217
  • BOSCH : 0 986 475 915
  • BOSCH : 0 986 478 034
  • BREMBO : 08.A533.10
  • BREMBO : 08.A533.11
  • BREMBO : A 12 284
  • BREMBO : M 23 088
  • DELPHI : BG2202
  • DELPHI : LM70017
  • DELPHI : LW62022
  • FEBI BILSTEIN : 01855
  • FEBI BILSTEIN : 04091
  • FEBI BILSTEIN : 05119
  • FEBI BILSTEIN : 06020
  • FEBI BILSTEIN : 21873
  • FEBI BILSTEIN : 22078
  • FIRST LINE : FBK217
  • FIRST LINE : FTR4528
  • FTE : 9082462
  • HELLA : 8AW 355 533-441
  • HELLA : 8DD 355 100-351
  • HENGST FILTER : H270WK
  • LUCAS : LKBA66081
  • MAHLE : KL 432
  • MANN-FILTER : WK 6034
  • MINTEX : MDC470
  • MONROE : L24106
  • NAPA : NFF2233
  • NAPA : PWB1257
  • Schaeffler FAG : 713 6677 20
  • Schaeffler FAG : 840 0812 10
  • SKF : VKBA 757
  • TEXTAR : 92019200
  • TRW : BWL287
  • TRW : JTE336
  • UFI : 24.014.00
  • VALEO : 673360
  • WIX FILTERS : WF8559
  • GATES : 859515119
