Gates 5122 Timing Belt

SKU: 5122
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£22.15 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
SAMURAI Closed Off-Road Vehicle (SJ_)
Description Cylinder Capacity Horse Power Year
1.3 All-wheel Drive (SJ413, SJ70, SJ80) 1298 CCM 70 HP 11/1988 - 12/2004
1.3 All-wheel Drive (SJ413) 1324 CCM 60 HP 11/1988 - 12/2004
1.3 All-wheel Drive (SJ413) 1324 CCM 64 HP 11/1988 - 12/2004
1.3 All-wheel Drive 1298 CCM 64 HP 09/1984 - 12/1994
SAMURAI Open Off-Road Vehicle (SJ_)
Description Cylinder Capacity Horse Power Year
1.3 (SJ413) 1298 CCM 70 HP 08/1992 - 08/1998
1.3 (SJ413) 1324 CCM 64 HP 04/1988 - 07/1992
SJ413 Open Off-Road Vehicle (OS)
Description Cylinder Capacity Horse Power Year
1.3 (SJ413) 1324 CCM 64 HP 01/1985 - 12/1985
SJ413 (OS)
Description Cylinder Capacity Horse Power Year
1.3 (SJ413) 1324 CCM 60 HP 08/1986 - 08/1990
1.3 (SJ413) 1324 CCM 64 HP 09/1984 - 08/1990
SWIFT   (AA)
Description Cylinder Capacity Horse Power Year
1.0 (SA310, AA41/43) 993 CCM 50 HP 10/1983 - 03/1989
1.0 Turbo (SA310) 993 CCM 71 HP 02/1985 - 12/1989
1.3 (SA413, AA53) 1324 CCM 64 HP 08/1986 - 03/1989
1.3 (SA413, AA51) 1324 CCM 68 HP 10/1984 - 03/1989
1.3 (SA413, AA51/53) 1324 CCM 73 HP 10/1984 - 03/1989
SWIFT Mk II Saloon (AH, AJ)
Description Cylinder Capacity Horse Power Year
1.3 (SF413, AH35, MA) 1298 CCM 68 HP 01/1991 - 12/1995
SWIFT Mk II Hatchback (EA, MA)
Description Cylinder Capacity Horse Power Year
1.3 (SF413, AB35) 1298 CCM 68 HP 03/1989 - 05/2001
1.3 4WD (SF413, AA35) 1324 CCM 68 HP 03/1989 - 05/2001
1.3 4WD (SF413, AF35) 1324 CCM 71 HP 10/1989 - 12/1991
1.3 (SF 413) 1298 CCM 69 HP 03/1989 - 10/1996
SWIFT Convertible (SF413)
Description Cylinder Capacity Horse Power Year
1.3 i (SF413, AK35, SY415, E35) 1298 CCM 68 HP 09/1991 - 10/1996

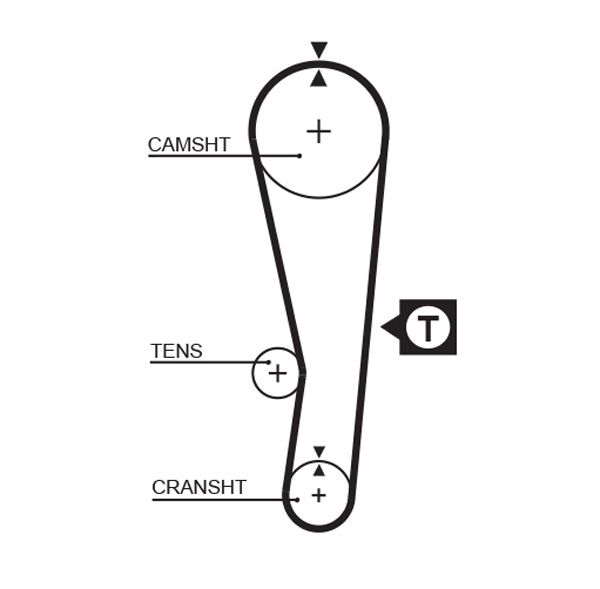

The Gates 5122 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Polychloroprene (Neoprene) belt material, 89 teeth, 19 mm width, and 848 mm length. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Article number of the recommended special tool : STT-1
Belt Material : Polychloroprene (Neoprene)
Number of Teeth : 89
Width [mm] : 19
Tooth Pitch [mm] : 9.525
Length [mm] : 848
Construction Year to : 07.1993
Driven Units : Camshaft
Vehicle Identification Number (VIN) to : SJ70
  • Vendor GATES
  • SKU 5122
  • Barcode 5412571003550
  • SUZUKI : 12761-63B00 12761-63B00-000 12761-82000 12761-82000-000 12761A82000 12761A82000-000 12761B82000 12761B82000-000
  • DANA : PMTB131
  • APEC : ADS1095R
  • BLUE PRINT : ADD64420
  • BLUE PRINT : ADK87307
  • BLUE PRINT : ADK87311
  • BLUE PRINT : ADK87501
  • BLUE PRINT : ADK88744
  • BLUE PRINT : ADR162307
  • BORG & BECK : BTR5306
  • BORG & BECK : BWK573
  • BOSCH : 0 986 477 022
  • BOSCH : 1 987 949 110
  • BREMBO : A 12 376
  • BREMBO : M 23 058
  • CORTECO : 49396418
  • CORTECO : 49396735
  • CORTECO : 49400763
  • DELPHI : BF103
  • DELPHI : LM70026
  • DELPHI : LW62044
  • DENSO : W22ESR-U
  • FEBI BILSTEIN : 05122
  • FEBI BILSTEIN : 08219
  • FEBI BILSTEIN : 108737
  • FEBI BILSTEIN : 37558
  • FEBI BILSTEIN : 42318
  • FIRST LINE : FBK573
  • FIRST LINE : FTR5306
  • HELLA : 8SB 003 614-001
  • LEMFÖRDER : 28768 02
  • LUCAS : LKBA66109
  • MAHLE : KL 469
  • MEYLE : 014 098 0022
  • MEYLE : 16-16 030 4298
  • MEYLE : 616 020 0009
  • MINTEX : MBD003
  • MONROE : L24115
  • MONROE : L24116
  • NAPA : NDS1095R
  • Schaeffler FAG : 713 6677 10
  • Shaftec : P196AR
  • Shaftec : P196ARSF
  • SKF : VKBA 3400
  • SKF : VKDY 336003
  • TEXTAR : 92026600
  • TEXTAR : 94003700
  • TEXTAR : 94048400
  • TRW : BWL187
  • TRW : JRA205
  • TRW : JTE1068
  • TRW : PMD180
  • UFI : 24.087.00
  • WIX FILTERS : WF8574
  • GATES : 859515122
