Home / Car Parts / Engine Parts / Timing / Timing Belt
Gates 5125 Timing Belt - 1
Gates 5125 Timing Belt video
Gates 5125 Timing Belt - 1
Gates 5125 Timing Belt video
GATES

Gates 5125 Timing Belt

SKU: 5125
Your selected vehicle
Out of stock
Out of Stock
£38.55 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO
6 (119_)
Description Cylinder Capacity Horse Power Year
2.5 i.e. (119.AA, 119.AB) 2492 CCM 150 HP 10/1983 - 12/1986
2.5 i.e. (119AA, 119AB) 2492 CCM 158 HP 08/1979 - 06/1984
2.0 (119AA) 1997 CCM 135 HP 07/1981 - 12/1986
2.5 i.e. (119AA) 2492 CCM 160 HP 09/1980 - 02/1984
75 (162_)
Description Cylinder Capacity Horse Power Year
2.5 V6 (162.B3) 2492 CCM 150 HP 05/1985 - 08/1986
3.0 V6 Cat (162.B6A) 2959 CCM 185 HP 01/1987 - 02/1992
3.0 V6 (162.B6C) 2959 CCM 192 HP 02/1990 - 02/1992
90 (162_)
Description Cylinder Capacity Horse Power Year
2.5 i.e. V6 (162.A, 162.AA) 2492 CCM 150 HP 10/1984 - 07/1987
2.5 i.e. V6 (162A) 2492 CCM 155 HP 09/1984 - 11/1987
164 (164_)
Description Cylinder Capacity Horse Power Year
2.0 V6 Turbo (164.K3) 1996 CCM 201 HP 09/1992 - 09/1998
2.0 V6 Turbo (164.A2G, 164.A2F) 1996 CCM 204 HP 03/1991 - 09/1992
3.0 V6 (164.A) 2959 CCM 192 HP 06/1987 - 09/1992
3.0 V6 (164.AD, 164.AH, 164.AB) 2959 CCM 184 HP 06/1987 - 09/1992
3.0 i.e. QV (164.AG) 2959 CCM 200 HP 09/1990 - 09/1992
GTV (116_)
Description Cylinder Capacity Horse Power Year
6 2.5 (116.CA) 2492 CCM 158 HP 11/1980 - 02/1987
RZ (162_)
Description Cylinder Capacity Horse Power Year
3.0 V6 Zagato (162D1) 2959 CCM 207 HP 01/1992 - 12/1994
SZ (162_)
Description Cylinder Capacity Horse Power Year
3.0 V6 Zagato (162C1) 2959 CCM 207 HP 09/1988 - 08/1994

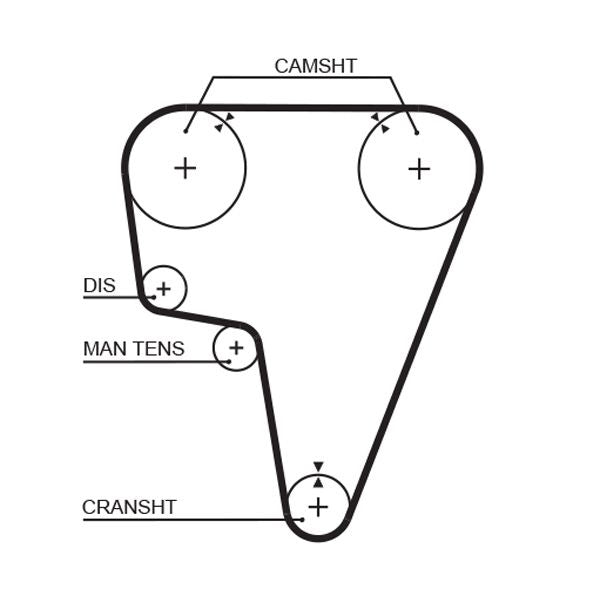

The Gates 5125 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Polychloroprene (Neoprene) belt material, 134 teeth, 25.4 mm width, and 1,276 mm length. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Belt Material : Polychloroprene (Neoprene)
Number of Teeth : 134
Width [mm] : 25.4
Tooth Pitch [mm] : 9.525
Length [mm] : 1,276
Driven Units : Camshaft
  • Vendor GATES
  • SKU 5125
  • Barcode 5412571004045
  • ALFA ROMEO : 0060562106 1191303105 119130310500 119130310501 60507464 60562106
  • DANA : PMTB71
  • APEC : SHU315
  • BLUE PRINT : ADB114389
  • BLUE PRINT : ADBP230026
  • BLUE PRINT : ADG04448
  • BLUE PRINT : ADN153191
  • BLUE PRINT : ADZ98701
  • BORG & BECK : BBD6269S
  • BORG & BECK : BBW1861
  • BORG & BECK : BDL6044
  • BORG & BECK : BFF8273
  • BORG & BECK : BTR4686
  • BOSCH : 0 986 478 321
  • BREMBO : A 12 563
  • BREMBO : M 85 023
  • CORTECO : 49396052
  • CORTECO : 49396138
  • CORTECO : 49396749
  • CORTECO : 49396800
  • DELPHI : BF111
  • DELPHI : BG2431
  • DELPHI : LM70067
  • DELPHI : LS1372
  • DELPHI : LW62115
  • Fahren : FFF5100
  • FEBI BILSTEIN : 04176
  • FEBI BILSTEIN : 05125
  • FEBI BILSTEIN : 08221
  • FEBI BILSTEIN : 14106
  • FEBI BILSTEIN : 174039
  • FIRST LINE : FDL6044
  • FIRST LINE : FTR4686
  • FTE : 9072177
  • HELLA : 8AM 355 505-781
  • HELLA : 8DA 355 050-001
  • HELLA : 8DT 355 301-161
  • HELLA : 8SB 003 290-001
  • LEMFÖRDER : 14095 01
  • LUCAS : LKBA66109
  • MAHLE : KL 169/4D
  • MANN-FILTER : WK 5025
  • MEYLE : 16-16 030 4280
  • MINTEX : MBD006
  • MINTEX : MFR108
  • NAPA : NFF2257
  • NRF : 27130
  • Schaeffler FAG : 713 6678 60
  • Schaeffler FAG : 840 0791 10
  • SKF : VKBA 3628
  • SKF : VKBD 90573 S2
  • SKF : VKDY 336012
  • TEXTAR : 91025900
  • TEXTAR : 94009900
  • TEXTAR : 94042300
  • TRW : BWD358
  • TRW : DF2557
  • TRW : GCH1725
  • TRW : JRA200
  • TRW : JTE418
  • TRW : PHA459
  • TRW : PMD143
  • TRW : PMD204
  • UFI : 31.851.00
  • UFI : 31.852.00
  • VALEO : 186125
  • VALEO : 514081
  • VALEO : 673451
  • WIX FILTERS : WF8576
  • GATES : 859515125
