Gates 5186 Timing Belt - 1
Gates 5186 Timing Belt video
Gates 5186 Timing Belt - 1
Gates 5186 Timing Belt video
GATES

Gates 5186 Timing Belt

SKU: 5186
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£22.49 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO
33 (905_)
Description Cylinder Capacity Horse Power Year
1.7 i.e. (905.A3D) 1712 CCM 105 HP 09/1988 - 12/1989
1.7 QV (905.A3) 1712 CCM 114 HP 03/1988 - 12/1989
33 Sportwagon (905_)
Description Cylinder Capacity Horse Power Year
1.7 i.e. 4x4 (905A3G, 905B3F) 1712 CCM 105 HP 09/1988 - 12/1989
1.7 i.e. (905B3F) 1712 CCM 105 HP 09/1988 - 12/1989
1.7 (905B3C) 1712 CCM 118 HP 03/1988 - 12/1989
33 (907_)
Description Cylinder Capacity Horse Power Year
1.4 i.e. (907.A3A, 907.A3B) 1351 CCM 88 HP 06/1991 - 09/1994
1.4 i.e. (907.A3A, 907.A3B) 1351 CCM 90 HP 06/1991 - 09/1994
1.7 i.e. (907.A1A) 1712 CCM 107 HP 01/1990 - 09/1994
1.7 i.e. (907.A1A) 1712 CCM 105 HP 04/1992 - 09/1994
1.7 i.e. 4x4 (907.A1G) 1712 CCM 107 HP 01/1990 - 09/1994
33 Sportwagon (907_)
Description Cylinder Capacity Horse Power Year
1.4 i.e. (907B3B) 1351 CCM 88 HP 06/1991 - 09/1994
1.4 i.e. (907B3B) 1351 CCM 90 HP 06/1991 - 09/1994
1.7 i.e. (907.B1A) 1712 CCM 107 HP 01/1990 - 03/1992
1.7 i.e. (907.B1A) 1712 CCM 105 HP 04/1992 - 09/1994
1.7 i.e. 4x4 (907.B1E) 1712 CCM 107 HP 01/1990 - 03/1992
1.7 i.e. 4x4 (907B1D) 1712 CCM 105 HP 04/1992 - 09/1994
145 (930_)
Description Cylinder Capacity Horse Power Year
1.6 i.e. (930.A2) 1596 CCM 103 HP 10/1994 - 12/1996
1.4 i.e. (930.A3) 1351 CCM 90 HP 07/1994 - 12/1996
146 (930_)
Description Cylinder Capacity Horse Power Year
1.6 i.e. (930.B2) 1596 CCM 103 HP 12/1994 - 12/1996
1.4 i.e. (930.B3) 1351 CCM 90 HP 12/1994 - 12/1996
ALFASUD Sprint (902_)
Description Cylinder Capacity Horse Power Year
1.7 i.e. (902C2D) 1712 CCM 105 HP 10/1987 - 12/1989
1.7 (902C2E) 1712 CCM 118 HP 03/1987 - 12/1989

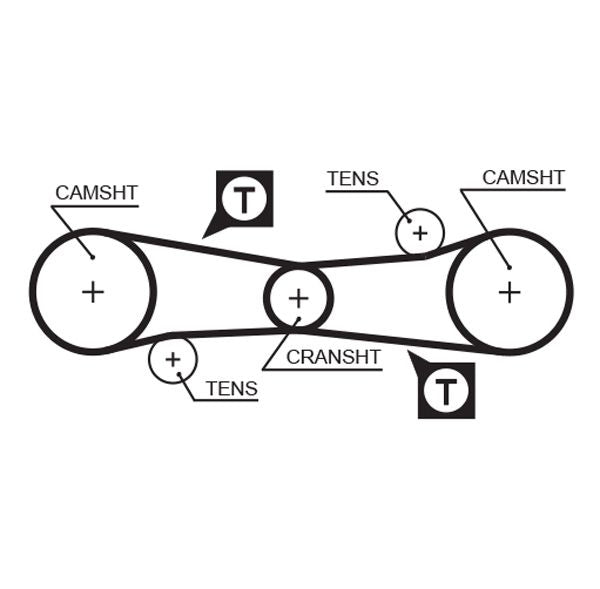

The Gates 5186 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Polychloroprene (Neoprene) belt material, 100 teeth, with tappets, and hydraulic operation. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Article number of the recommended special tool : STT-1
Belt Material : Polychloroprene (Neoprene)
Number of Teeth : 100
Width [mm] : 17
Tooth Pitch [mm] : 9.525
Length [mm] : 953
Construction Year from : 01.1989
Driven Units : Camshaft
Required quantity : 2
Supplementary Article/Supplementary Info : with tappets
Operating Mode : hydraulic
  • Vendor GATES
  • SKU 5186
  • Barcode 5412571005592
  • ALFA ROMEO : 0060515034 131931 60515034
  • DANA : PMTB125
  • APEC : BCY1521
  • APEC : BWC8237
  • BLUE PRINT : ADM553106
  • BLUE PRINT : ADU174377
  • BORG & BECK : BBW1898
  • BOSCH : 0 204 123 528
  • BOSCH : 0 986 478 097
  • BOSCH : 0 986 478 114
  • BOSCH : F 026 002 671
  • BOSCH : F 026 003 528
  • BREMBO : A 12 B78
  • BREMBO : M 23 004
  • BREMBO : M 23 027
  • DELPHI : BG2288
  • DELPHI : LW90089
  • DENSO : IQ24
  • FEBI BILSTEIN : 08543
  • FEBI BILSTEIN : 103027
  • FEBI BILSTEIN : 10972
  • FEBI BILSTEIN : 11308
  • FTE : 9072022
  • FTE : 9082083
  • FTE : 9210161
  • FTE : 9220212
  • HELLA : 8AM 355 502-421
  • HELLA : 8AW 355 532-481
  • HELLA : 8DD 355 100-741
  • INTERMOTOR : 60070
  • MINTEX : MDC351
  • NAPA : NCY1036
  • National : NWC5093
  • SKF : VKBD 80363 S2
  • TEXTAR : 92006105
  • TEXTAR : 92006107
  • TEXTAR : 92027403
  • TRW : BWF350
  • TRW : DF1584
  • TRW : PMH584
  • VALEO : 186176
  • VALEO : 673367
  • GATES : 859515186
