GATES

Gates 5223XS Timing Belt

SKU: 5223XS
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£31.54 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
80 B3 Saloon (893, 894, 8A2)
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 68 HP 08/1989 - 08/1991
80 B4 Avant (8C5)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 07/1992 - 01/1996
1.9 TD 1896 CCM 75 HP 09/1991 - 12/1994
80 B4 Saloon (8C2)
Description Cylinder Capacity Horse Power Year
1.9 TD 1896 CCM 75 HP 09/1991 - 12/1994
1.9 TDI 1896 CCM 90 HP 09/1991 - 12/1994
A4 B5 (8D2)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 01/1995 - 11/2000
1.9 TDI 1896 CCM 110 HP 10/1995 - 11/2000
1.9 TDI quattro 1896 CCM 110 HP 07/1996 - 01/2000
A4 B5 Avant (8D5)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 02/1996 - 09/2001
1.9 TDI 1896 CCM 110 HP 02/1996 - 09/2001
1.9 TDI quattro 1896 CCM 110 HP 09/1996 - 09/2001
A6 C4 (4A2)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 06/1994 - 10/1997
A6 C4 Avant (4A5)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 06/1994 - 12/1997
A6 C5 (4B2, 4B4)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 110 HP 04/1997 - 10/2000
A6 C5 Avant (4B5, 4B6)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 110 HP 02/1998 - 04/2001
CABRIOLET B3 (8G7)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 06/1995 - 08/2000
SEAT
CORDOBA (6K1, 6K2)
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 68 HP 02/1993 - 08/1996
1.9 TD 1896 CCM 75 HP 02/1993 - 08/1996
1.9 SDI 1896 CCM 64 HP 08/1996 - 06/1999
1.9 TDI 1896 CCM 90 HP 08/1996 - 10/2002
1.9 D 1896 CCM 64 HP 01/1996 - 08/1996
1.9 TDI 1896 CCM 110 HP 03/1997 - 10/2002
CORDOBA Vario (6K5)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 08/1996 - 12/2002
1.9 TDI 1896 CCM 110 HP 07/1997 - 12/2002
IBIZA Mk II (6K1)
Description Cylinder Capacity Horse Power Year
1.9 SDI 1896 CCM 64 HP 08/1996 - 08/1999
1.9 TD 1896 CCM 75 HP 03/1993 - 08/1996
1.9 TDI 1896 CCM 90 HP 08/1996 - 02/2002
1.9 TDI 1896 CCM 110 HP 02/1997 - 02/2002
1.9 D 1896 CCM 64 HP 04/1993 - 06/1999
INCA (6K9)
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 64 HP 11/1995 - 06/2003
1.9 SDI 1896 CCM 64 HP 11/1995 - 06/2003
TOLEDO   (1L2)
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 68 HP 05/1991 - 03/1999
1.9 TD 1896 CCM 75 HP 05/1991 - 03/1999
1.9 TDI 1896 CCM 90 HP 08/1995 - 03/1999
1.9 TDI 1896 CCM 110 HP 11/1996 - 03/1999
1.9 D 1896 CCM 64 HP 12/1995 - 03/1999
VW
CADDY II Box Body/MPV (9K9A)
Description Cylinder Capacity Horse Power Year
1.9 SDI 1896 CCM 64 HP 11/1995 - 01/2004
1.9 TDI 1896 CCM 90 HP 09/1996 - 01/2004
1.9 D 1896 CCM 64 HP 11/1995 - 01/2004
CADDY II MPV (9K9B)
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 64 HP 11/1995 - 01/2004
1.9 SDI 1896 CCM 64 HP 11/1995 - 01/2004
1.9 TDI 1896 CCM 90 HP 10/1996 - 01/2004
GOLF Mk III (1H1)
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 64 HP 11/1991 - 08/1997
1.9 TD, GTD 1896 CCM 75 HP 11/1991 - 08/1997
1.9 TDI 1896 CCM 90 HP 08/1993 - 12/1997
GOLF III Van (1H1)
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 75 HP 08/1991 - 07/1995
1.9 SDI 1896 CCM 64 HP 08/1995 - 09/1997
1.9 TDI 1896 CCM 90 HP 08/1991 - 09/1997
GOLF Van III Variant (1H5)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 08/1993 - 12/1999
1.9 SDI 1896 CCM 64 HP 07/1995 - 02/1999
1.9 1896 CCM 64 HP 08/1993 - 02/1999
1.9 TDI 1896 CCM 110 HP 05/1996 - 02/1999
GOLF Mk III Estate (1H5)
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 64 HP 07/1993 - 04/1999
1.9 TD 1896 CCM 75 HP 07/1993 - 04/1999
1.9 TDI 1896 CCM 90 HP 03/1994 - 04/1999
1.9 TDI Syncro 1896 CCM 90 HP 07/1995 - 04/1999
1.9 TDI 1896 CCM 110 HP 04/1996 - 04/1999
1.9 SDI 1896 CCM 64 HP 07/1995 - 04/1999
GOLF Mk III Cabriolet (1E7)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 08/1995 - 05/1998
1.9 TDI 1896 CCM 110 HP 07/1996 - 05/1998
GOLF Mk III Cabriolet (1E7)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 06/1998 - 06/2002
1.9 TDI 1896 CCM 110 HP 06/1998 - 06/2002
PASSAT B3/B4 (3A2, 35I)
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 68 HP 05/1989 - 10/1993
1.9 TD 1896 CCM 75 HP 03/1991 - 08/1996
1.9 TDI 1896 CCM 90 HP 10/1993 - 08/1996
PASSAT B3/B4 Estate (3A5, 35I)
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 68 HP 05/1989 - 10/1993
1.9 TD 1896 CCM 75 HP 03/1991 - 05/1997
1.9 TDI 1896 CCM 90 HP 10/1993 - 05/1997
PASSAT B5 (3B2)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 10/1996 - 11/2000
1.9 TDI 1896 CCM 110 HP 10/1996 - 11/2000
1.9 TDI Syncro/4motion 1896 CCM 110 HP 06/1997 - 08/2000
PASSAT B5 Estate (3B5)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 06/1997 - 11/2000
1.9 TDI 1896 CCM 110 HP 06/1997 - 11/2000
1.9 TDI Syncro/4motion 1896 CCM 110 HP 06/1997 - 08/2000
POLO III CLASSIC (6V2)
Description Cylinder Capacity Horse Power Year
64 1.9 SDI 1896 CCM 64 HP 12/1995 - 08/1999
90 1.9 TDI 1896 CCM 90 HP 09/1996 - 09/2001
110 1.9 TDI 1896 CCM 110 HP 06/1998 - 01/2002
64 1,9 D 1896 CCM 64 HP 01/1996 - 10/1996
POLO Estate (6V5)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 05/1997 - 09/2001
1.9 TDI 1896 CCM 110 HP 06/1998 - 09/2001
TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 61 HP 07/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
1.9 D 1896 CCM 60 HP 09/1990 - 12/1995
TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 61 HP 07/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 60 HP 09/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
VENTO (1H2)
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 65 HP 11/1991 - 09/1998
1.9 TD 1896 CCM 75 HP 11/1991 - 09/1998
1.9 TDI 1896 CCM 90 HP 09/1993 - 09/1998
1.9 TDI 1896 CCM 110 HP 04/1996 - 09/1998
1.9 SDI 1896 CCM 64 HP 04/1997 - 09/1998

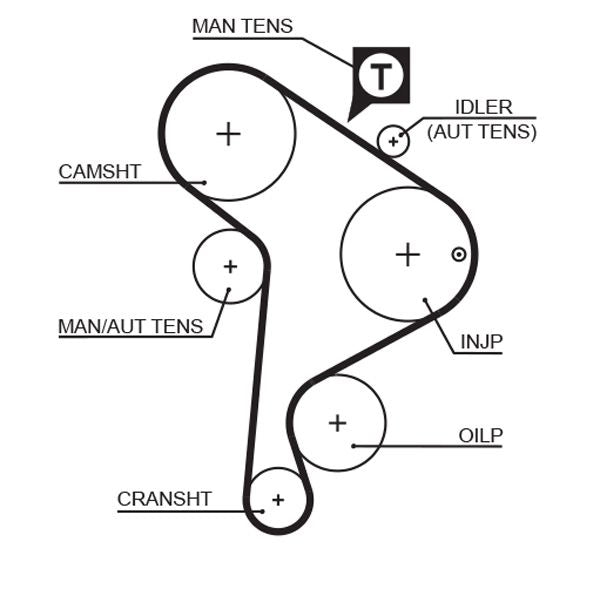

The Gates 5223XS Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Fiberglass tensile cord material, HNBR (hydrogenated nitrile butadiene rubber) belt material, black colour, and 137 teeth. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Article number of the recommended special tool : STT-1
Tensile Cord Material : Fiberglass
Belt Material : HNBR (hydrogenated nitrile butadiene rubber)
Colour : black
Number of Teeth : 137
Width [mm] : 25
Tooth Pitch [mm] : 9.525
Length [mm] : 1,305
Driven Units : Camshaft
Article number of the recommended special tool : GAT4740
  • Vendor GATES
  • SKU 5223XS
  • Barcode 5412571010343
  • BOSCH : 1 987 949 473
  • FEBI BILSTEIN : 11039
  • FEBI BILSTEIN : 19534
  • LEMFÖRDER : 14834 01
  • SKF : VKMT 01012
  • User manual
  • GATES : 859715223
