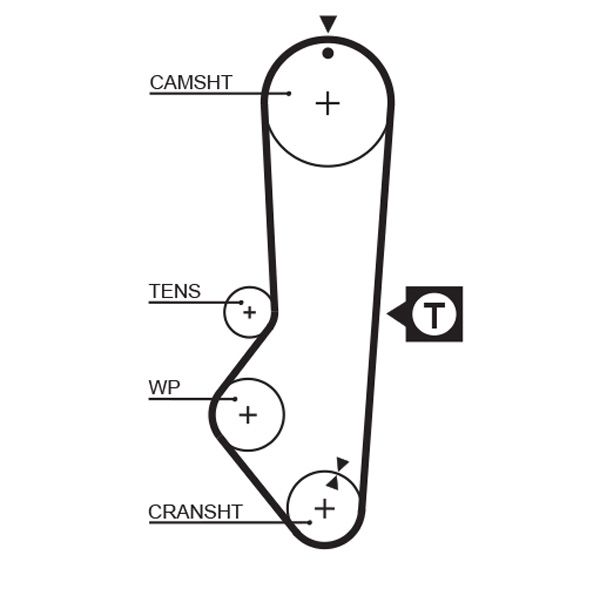

Gates 5225XS Timing Belt - 1
Gates 5225XS Timing Belt video
Gates 5225XS Timing Belt - 1
Gates 5225XS Timing Belt video
GATES

Gates 5225XS Timing Belt

SKU: 5225XS
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£27.71 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
ESCORT III (GAA)
Description Cylinder Capacity Horse Power Year
1.6 1597 CCM 79 HP 09/1980 - 12/1985
1.6 1597 CCM 97 HP 09/1980 - 10/1982
1.6 XR3i 1597 CCM 105 HP 10/1982 - 12/1985
1.6 RS Turbo 1597 CCM 132 HP 11/1984 - 12/1985
1.6 i (GAA) 1597 CCM 90 HP 07/1985 - 12/1985
RS 1600i 1597 CCM 115 HP 05/1982 - 12/1985
ESCORT Mk III Turnier (AWA)
Description Cylinder Capacity Horse Power Year
1.6 1597 CCM 79 HP 09/1980 - 12/1985
ESCORT III Express (AVA)
Description Cylinder Capacity Horse Power Year
1.6 1597 CCM 84 HP 03/1981 - 02/1986
1.6 1596 CCM 91 HP 01/1985 - 02/1986
ESCORT Mk IV (GAF, AWF, ABFT)
Description Cylinder Capacity Horse Power Year
1.4 1392 CCM 73 HP 01/1986 - 07/1990
1.4 1392 CCM 75 HP 01/1986 - 07/1990
1.6 i 1598 CCM 90 HP 01/1986 - 05/1990
1.6 XR3i 1597 CCM 105 HP 01/1986 - 08/1989
1.6 Turbo RS 1597 CCM 132 HP 01/1986 - 07/1990
1.6 i 1597 CCM 102 HP 08/1989 - 07/1990
1.6 1598 CCM 88 HP 04/1989 - 07/1990
1.6 1597 CCM 79 HP 01/1986 - 12/1988
1.4 1392 CCM 70 HP 10/1985 - 10/1990
ESCORT Mk III Convertible (ALD)
Description Cylinder Capacity Horse Power Year
1.6 1597 CCM 79 HP 09/1983 - 12/1985
1.6 i 1597 CCM 105 HP 09/1983 - 12/1985
ESCORT Mk IV Turnier (AWF, AVF)
Description Cylinder Capacity Horse Power Year
1.4 1392 CCM 73 HP 01/1986 - 07/1990
1.4 1392 CCM 75 HP 01/1986 - 07/1990
1.6 i 1598 CCM 90 HP 01/1986 - 07/1990
1.6 1597 CCM 79 HP 01/1986 - 07/1990
1.4 1392 CCM 70 HP 10/1985 - 10/1990
ESCORT Mk IV Convertible (ALF)
Description Cylinder Capacity Horse Power Year
1.4 1392 CCM 73 HP 02/1987 - 07/1990
1.4 1392 CCM 75 HP 01/1986 - 07/1990
1.6 i 1598 CCM 90 HP 01/1986 - 07/1990
1.6 XR3i 1597 CCM 105 HP 01/1986 - 07/1990
1.6 i 1597 CCM 102 HP 08/1989 - 07/1990
1.6 1597 CCM 79 HP 01/1986 - 12/1987
ESCORT IV Express (AVF)
Description Cylinder Capacity Horse Power Year
1.6 1597 CCM 81 HP 02/1986 - 07/1990
1.4 i 1392 CCM 73 HP 02/1986 - 07/1990
ESCORT Mk V Turnier (ANL)
Description Cylinder Capacity Horse Power Year
1.4 1392 CCM 71 HP 07/1990 - 01/1995
1.6 1598 CCM 105 HP 07/1990 - 09/1992
1.6 1598 CCM 90 HP 07/1990 - 08/1992
ESCORT Mk VI (AAL, ABL)
Description Cylinder Capacity Horse Power Year
1.4 1392 CCM 71 HP 07/1990 - 01/1995
1.6 1598 CCM 105 HP 07/1990 - 08/1993
1.4 1392 CCM 75 HP 09/1990 - 12/1994
ESCORT V Express (AVF)
Description Cylinder Capacity Horse Power Year
1.4 1391 CCM 71 HP 07/1990 - 12/1994
ESCORT Mk V Convertible (ALL, BJ2)
Description Cylinder Capacity Horse Power Year
1.4 1392 CCM 71 HP 07/1990 - 04/1994
1.6 1598 CCM 105 HP 07/1990 - 08/1993
FIESTA Hatchback Van (FVD)
Description Cylinder Capacity Horse Power Year
1.4 1392 CCM 71 HP 09/1986 - 09/1989
FIESTA Mk II (FBD)
Description Cylinder Capacity Horse Power Year
1.4 (FBD) 1392 CCM 71 HP 10/1986 - 02/1989
1.4 (FBD) 1392 CCM 73 HP 02/1987 - 02/1989
1.4 (FBD) 1392 CCM 75 HP 10/1985 - 11/1989
1.6 XR2 (FBD) 1597 CCM 95 HP 03/1984 - 02/1989
1.6 XR2 (FBD) 1597 CCM 97 HP 04/1984 - 02/1989
1.4 1392 CCM 69 HP 09/1983 - 01/1987
1.6 1597 CCM 79 HP 01/1985 - 11/1989
FIESTA Mk III (GFJ)
Description Cylinder Capacity Horse Power Year
1.4 1392 CCM 73 HP 03/1989 - 12/1995
1.4 1391 CCM 71 HP 03/1989 - 12/1995
1.6 XR2i 1598 CCM 103 HP 03/1989 - 03/1993
1.6 1597 CCM 88 HP 01/1989 - 01/1994
1.6 Turbo (FBJT) 1598 CCM 131 HP 03/1990 - 10/1992
1.6 XR2i 1597 CCM 110 HP 03/1989 - 01/1994
ORION   (AFD)
Description Cylinder Capacity Horse Power Year
1.6 1597 CCM 79 HP 07/1983 - 03/1986
1.6 i 1597 CCM 105 HP 07/1983 - 03/1986
ORION Mk II (AFF)
Description Cylinder Capacity Horse Power Year
1.4 Cat 1392 CCM 73 HP 02/1987 - 07/1990
1.4 1392 CCM 75 HP 12/1985 - 07/1990
1.4 1392 CCM 72 HP 03/1986 - 07/1990
1.6 i Cat 1597 CCM 90 HP 03/1986 - 07/1990
1.6 i 1597 CCM 105 HP 03/1986 - 07/1990
1.4 1392 CCM 73 HP 01/1986 - 07/1990
1.6 1597 CCM 90 HP 12/1985 - 07/1990
1.6 i 1597 CCM 102 HP 02/1986 - 07/1990
1.6 1597 CCM 88 HP 03/1986 - 07/1990
ORION III (GAL)
Description Cylinder Capacity Horse Power Year
1.4 1391 CCM 71 HP 07/1990 - 12/1993
1.6 i 1598 CCM 105 HP 07/1990 - 09/1992
1.4 1392 CCM 73 HP 07/1990 - 12/1993
1.6 1598 CCM 90 HP 07/1990 - 12/1992
SIERRA II Sapphire (GBG, GB4)
Description Cylinder Capacity Horse Power Year
1.6 i 1597 CCM 80 HP 10/1989 - 02/1993
SIERRA II Turnier (BNG)
Description Cylinder Capacity Horse Power Year
1.6 i 1598 CCM 80 HP 10/1989 - 02/1993
SIERRA II Hatchback (GBC, GBG)
Description Cylinder Capacity Horse Power Year
1.6 i 1598 CCM 80 HP 10/1989 - 02/1993
MORGAN
FOUR FOUR
Description Cylinder Capacity Horse Power Year
1.6 CVH/OHV 1597 CCM 96 HP 08/1982 - 09/1991
1.6 i Kat 1597 CCM 105 HP 08/1991 - 12/1993
1.6 i 1595 CCM 110 HP 01/1985 - 08/1991

The Gates 5225XS Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Fiberglass tensile cord material, HNBR (hydrogenated nitrile butadiene rubber) belt material, black colour, and 97 teeth. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Article number of the recommended special tool : STT-1
Tensile Cord Material : Fiberglass
Belt Material : HNBR (hydrogenated nitrile butadiene rubber)
Colour : black
Number of Teeth : 97
Width [mm] : 19.8
Tooth Pitch [mm] : 9.525
Length [mm] : 924
Driven Units : Camshaft
  • Vendor GATES
  • SKU 5225XS
  • Barcode 5412571006476
  • FORD : 1653887 1660554 6092138 6109190 6162732 6711046 6830822 81SM6268HE 86SM6268FA 89SM6268AC 91SM6268BA
  • DANA : PMTB157 PMTB26
  • BOSCH : 1 987 949 047
  • FEBI BILSTEIN : 10940
  • LEMFÖRDER : 17822 01
  • GATES : 5046NS
  • GATES : 859715225
