GATES

Gates 5268 Timing Belt

SKU: 5268
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£32.17 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
VITARA / ESCUDO (ET, TA, TD)
Description Cylinder Capacity Horse Power Year
1.6 (TA, TA01) 1590 CCM 80 HP 01/1991 - 01/1998
1.6 All-wheel Drive (SE416, TA01) 1589 CCM 82 HP 07/1988 - 12/1995
1.6 All-wheel Drive (SE416, TA01) 1590 CCM 75 HP 10/1988 - 12/1998
VITARA Cabrio (ET, TA)
Description Cylinder Capacity Horse Power Year
1.6 (TA01, SE416) 1589 CCM 80 HP 07/1988 - 01/1995
1.6 (SE416) 1589 CCM 75 HP 01/1990 - 12/1993
GEO
TRACKER Station Wagon
Description Cylinder Capacity Horse Power Year
1.6 i 1590 CCM 80 HP 01/1988 - 12/1998
TRACKER Cabrio
Description Cylinder Capacity Horse Power Year
1.6 i 1590 CCM 80 HP 01/1988 - 12/1998

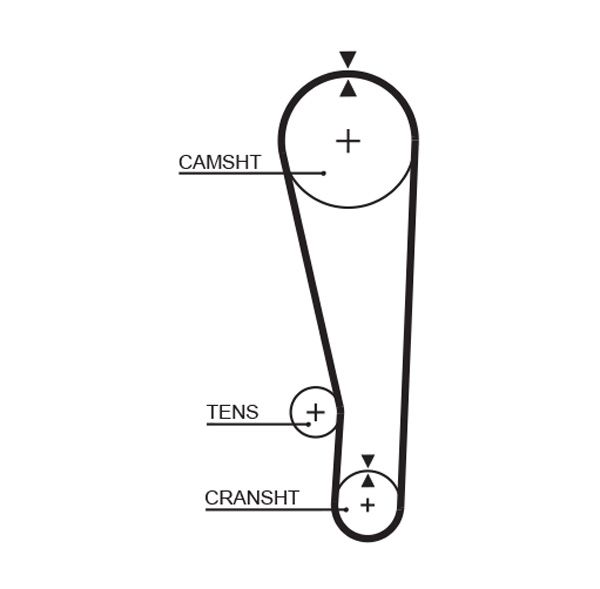

The Gates 5268 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Polychloroprene (Neoprene) belt material, 95 teeth, 19 mm width, and 905 mm length. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Belt Material : Polychloroprene (Neoprene)
Number of Teeth : 95
Width [mm] : 19
Tooth Pitch [mm] : 9.525
Length [mm] : 905
Driven Units : Camshaft
  • Vendor GATES
  • SKU 5268
  • Barcode 5412571007589
  • SUZUKI : 12761-60A00 12761-60A01 12761-85C00
  • DANA : PMTB185
  • APEC : AWB1018
  • BLUE PRINT : ADD64451
  • BLUE PRINT : ADK87503
  • BORG & BECK : BBW1913
  • BORG & BECK : BSM5000
  • BORG & BECK : BWK469
  • BOSCH : 0 986 478 434
  • BOSCH : 0 986 478 640
  • BOSCH : 0 986 479 B34
  • BOSCH : 0 986 479 R98
  • BOSCH : 0 986 480 862
  • BOSCH : 1 987 948 816
  • BREMBO : A 12 662
  • BREMBO : M 85 022
  • CORTECO : 21652986
  • DELPHI : LM70158
  • DELPHI : LW90143
  • FEBI BILSTEIN : 08132
  • FIRST LINE : FBK469
  • FIRST LINE : FSM5000
  • FTE : 9072113
  • FTE : 9082015
  • FTE : 9220125
  • HELLA : 8DD 355 122-701
  • MINTEX : MDC2154
  • MINTEX : MDC2686
  • MINTEX : MDC2686C
  • MINTEX : MDC839
  • MONROE : MK034
  • NAPA : PWB1018
  • Schaeffler FAG : 713 6788 10
  • Shaftec : FO162L
  • Shaftec : FO162LSF
  • SKF : VKBA 1433
  • TEXTAR : 92073803
  • TEXTAR : 92116603
  • TEXTAR : 92275100
  • TEXTAR : 92275103
  • TEXTAR : 92275105
  • TRW : BWA156
  • TRW : DF2620
  • TRW : PMF191
  • GATES : 859515268
