Home / Car Parts / Engine Parts / Timing / Timing Belt
Gates 5311 Timing Belt - 1
Gates 5311 Timing Belt video
Gates 5311 Timing Belt - 1
Gates 5311 Timing Belt video
GATES

Gates 5311 Timing Belt

SKU: 5311
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£19.74 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SEAT
CORDOBA (6K1, 6K2)
Description Cylinder Capacity Horse Power Year
1.4 i 1389 CCM 60 HP 06/1994 - 10/2002
IBIZA Mk II (6K1)
Description Cylinder Capacity Horse Power Year
1.0 1043 CCM 45 HP 03/1993 - 09/1996
1.3 i 1272 CCM 54 HP 03/1993 - 08/1999
1.4 i 1389 CCM 60 HP 09/1993 - 02/2002
VW
GOLF Mk III (1H1)
Description Cylinder Capacity Horse Power Year
1.4 1390 CCM 55 HP 11/1991 - 08/1997
1.4 1390 CCM 60 HP 10/1991 - 08/1997
GOLF III Van (1H1)
Description Cylinder Capacity Horse Power Year
1.4 1390 CCM 60 HP 08/1991 - 05/1996
GOLF Mk III Estate (1H5)
Description Cylinder Capacity Horse Power Year
1.4 1390 CCM 55 HP 07/1993 - 04/1999
1.4 1390 CCM 60 HP 07/1993 - 04/1999
POLO II (86C, 80)
Description Cylinder Capacity Horse Power Year
1.3 Cat 1272 CCM 55 HP 07/1987 - 09/1994
1.0 Cat 1043 CCM 45 HP 08/1989 - 09/1994
1.3 Cat 1272 CCM 75 HP 10/1989 - 03/1991
1.3 1272 CCM 55 HP 08/1983 - 07/1988
1.0 1043 CCM 45 HP 08/1985 - 01/1992
1.3 1272 CCM 75 HP 09/1982 - 09/1989
1.3 1272 CCM 76 HP 10/1990 - 08/1994
POLO Coupe (86C, 80)
Description Cylinder Capacity Horse Power Year
1.3 G40 1272 CCM 115 HP 01/1987 - 08/1990
1.0 Cat 1043 CCM 45 HP 08/1989 - 09/1994
1.3 Cat 1272 CCM 55 HP 07/1987 - 08/1994
1.3 Cat 1272 CCM 75 HP 10/1989 - 09/1994
1.3 G40 1272 CCM 113 HP 08/1990 - 09/1994
1.3 1272 CCM 55 HP 08/1983 - 06/1987
1.0 1043 CCM 45 HP 08/1985 - 01/1992
1.3 1272 CCM 75 HP 09/1982 - 09/1989
1.3 1272 CCM 78 HP 03/1991 - 09/1994
POLO CLASSIC (86C, 80)
Description Cylinder Capacity Horse Power Year
1.0 1043 CCM 45 HP 01/1985 - 09/1994
1.3 Cat 1272 CCM 55 HP 07/1987 - 09/1994
1.3 1272 CCM 55 HP 01/1985 - 07/1987
POLO Hatchback Van (86CF)
Description Cylinder Capacity Horse Power Year
1.0 1043 CCM 45 HP 08/1992 - 07/1994
1.3 1272 CCM 54 HP 08/1992 - 07/1994
VENTO (1H2)
Description Cylinder Capacity Horse Power Year
1.4 1390 CCM 55 HP 11/1991 - 09/1998
1.4 1390 CCM 60 HP 11/1991 - 09/1998
TRABANT
1.1
Description Cylinder Capacity Horse Power Year
1.1 1043 CCM 41 HP 05/1990 - 12/1991
1.1 Tramp
Description Cylinder Capacity Horse Power Year
1.1 1043 CCM 41 HP 05/1990 - 12/1991
1.1 Universal
Description Cylinder Capacity Horse Power Year
1.1 1043 CCM 41 HP 12/1990 - 12/1991

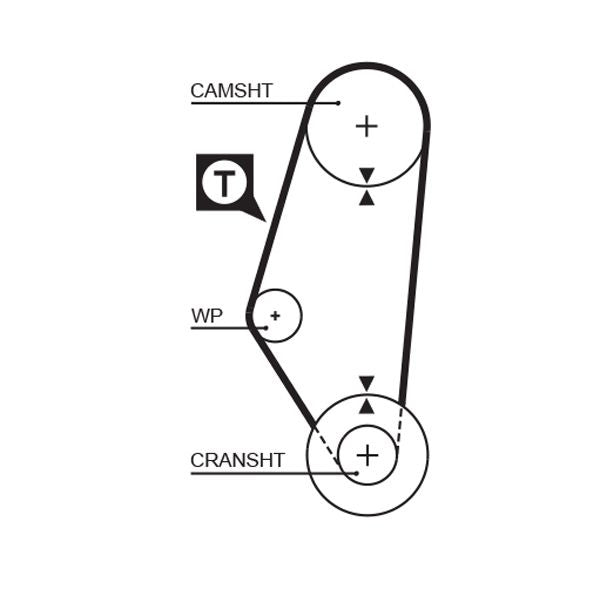

The Gates 5311 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Polychloroprene (Neoprene) belt material, 128 teeth, 19 mm width, and 1,024 mm length. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Article number of the recommended special tool : STT-1
Belt Material : Polychloroprene (Neoprene)
Number of Teeth : 128
Width [mm] : 19
Tooth Pitch [mm] : 8
Length [mm] : 1,024
Construction Year from : 06.1994
Driven Units : Camshaft
Engine Code : ABD
  • Vendor GATES
  • SKU 5311
  • Barcode 5412571008432
  • SEAT : 030109119A
  • VW : 030109119A 030109119B
  • DANA : PMTB188
  • BORG & BECK : BEM3978
  • BOSCH : 0 986 478 105
  • BOSCH : 0 986 479 831
  • BOSCH : 1 987 949 096
  • BREMBO : M 28 026
  • DELPHI : LW12222
  • DELPHI : TEM050
  • DENSO : IK24
  • FEBI BILSTEIN : 12022
  • FEBI BILSTEIN : 14382
  • FEBI BILSTEIN : 29566
  • FIRST LINE : FEM3978
  • FTE : 9072003
  • FTE : 9082382
  • GATES : ETM1184
  • HELLA : 8DD 355 101-241
  • MINTEX : MDC297
  • MINTEX : MDC297C
  • Schaeffler FAG : 713 6445 00
  • TEXTAR : 92036100
  • TEXTAR : 92036103
  • TRW : DF1013
  • TRW : DF4382
  • GATES : 859515311
