Home / Car Parts / Engine Parts / Timing / Timing Belt
Gates 5312 Timing Belt - 1
Gates 5312 Timing Belt video
Gates 5312 Timing Belt - 1
Gates 5312 Timing Belt video
GATES

Gates 5312 Timing Belt

SKU: 5312
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£37.86 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO
33 (907_)
Description Cylinder Capacity Horse Power Year
1.7 16V (907.A1C) 1712 CCM 129 HP 01/1990 - 09/1994
1.7 16V (907.A1C) 1712 CCM 132 HP 01/1990 - 03/1992
1.7 16V 4x4 (907.A1G) 1712 CCM 129 HP 01/1990 - 09/1994
1.7 16V 4x4 (907.A1G) 1712 CCM 132 HP 01/1990 - 09/1994
1.7 16V (907.A1B) 1712 CCM 137 HP 01/1990 - 03/1992
1.7 16V 4x4 (907A1F) 1712 CCM 137 HP 01/1990 - 09/1994
33 Sportwagon (907_)
Description Cylinder Capacity Horse Power Year
1.7 16V (907.B1G) 1712 CCM 132 HP 01/1990 - 09/1994
1.7 16V (907.B1G) 1712 CCM 129 HP 01/1990 - 09/1994
1.7 16V 4x4 (907.B1H) 1712 CCM 132 HP 01/1990 - 03/1992
1.7 16V 4x4 (907.B1H) 1712 CCM 129 HP 01/1990 - 09/1994
1.7 16V (907B1B) 1712 CCM 137 HP 07/1990 - 09/1994
1.7 16V 4x4 (907B1H) 1712 CCM 137 HP 07/1990 - 09/1994
145 (930_)
Description Cylinder Capacity Horse Power Year
1.7 i.e. 16V (930.A1) 1712 CCM 129 HP 10/1994 - 12/1996
146 (930_)
Description Cylinder Capacity Horse Power Year
1.7 i.e. 16V (930.B1) 1712 CCM 129 HP 12/1994 - 12/1996

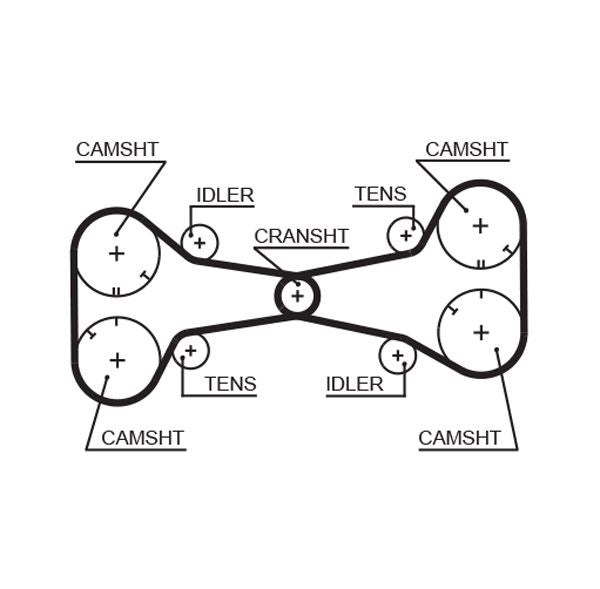

The Gates 5312 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Polychloroprene (Neoprene) belt material, 121 teeth, 20 mm width, and 1,153 mm length. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Belt Material : Polychloroprene (Neoprene)
Number of Teeth : 121
Width [mm] : 20
Tooth Pitch [mm] : 9.525
Length [mm] : 1,153
Driven Units : Camshaft
Required quantity : 2
  • Vendor GATES
  • SKU 5312
  • Barcode 5412571008449
  • ALFA ROMEO : 60556211
  • DANA : PMTB264
  • APEC : DSK2597
  • APEC : SDK6284
  • BLUE PRINT : ADH24388
  • BORG & BECK : BTR4828
  • BOSCH : 0 986 478 273
  • BOSCH : 0 986 479 449
  • BOSCH : 0 986 479 V84
  • BREMBO : M 28 020
  • CORTECO : 80000125
  • DELPHI : BG4064
  • DELPHI : BG4064C
  • DELPHI : LM80205
  • DELPHI : LW13299
  • DENSO : IK27
  • DENSO : IQ22
  • Fahren : FBD6284
  • FEBI BILSTEIN : 108429
  • FEBI BILSTEIN : 10973
  • FEBI BILSTEIN : 12780
  • FEBI BILSTEIN : 29567
  • FEBI BILSTEIN : 30573
  • FEBI BILSTEIN : 43727
  • FEBI BILSTEIN : 43728
  • FEBI BILSTEIN : 43731
  • FEBI BILSTEIN : 43732
  • FEBI BILSTEIN : 43779
  • FEBI BILSTEIN : 43780
  • FIRST LINE : FTR4828
  • FTE : 9072595
  • FTE : 9082408
  • GATES : AV13X700HD
  • HELLA : 8DD 355 101-221
  • HELLA : 8DD 355 118-901
  • LEMFÖRDER : 14096 01
  • MEYLE : 31-15 523 0056
  • MEYLE : 31-15 523 0056/PD
  • MEYLE : 616 031 0014
  • MINTEX : MDC1842
  • MINTEX : MDC364
  • MONROE : L24216
  • NAPA : NBD5623
  • Schaeffler FAG : 840 0154 10
  • SKF : VKBD 90325 S2
  • TEXTAR : 92036000
  • TEXTAR : 92036003
  • TEXTAR : 92162503
  • TRW : DF1015
  • TRW : JAR126
  • TRW : JAR957
  • VALEO : 197102
  • VALEO : 673137
  • GATES : 859515312
