Gates 5340 Timing Belt

SKU: 5340
Your selected vehicle
Out of stock
Out of Stock
£40.58 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO
155 (167_)
Description Cylinder Capacity Horse Power Year
2.5 V6 (167.A1C, 167.A1E) 2492 CCM 163 HP 09/1992 - 12/1997
2.5 V6 (167.A1C, 167.A1) 2492 CCM 165 HP 03/1992 - 05/1995
164 (164_)
Description Cylinder Capacity Horse Power Year
3.0 V6 (164.H1A, 164.H1B, 164.K1P) 2959 CCM 180 HP 09/1992 - 09/1998
GTV (916_)
Description Cylinder Capacity Horse Power Year
2.0 V6 Turbo (916.C2A) 1996 CCM 202 HP 06/1995 - 09/1998
SPIDER (916_)
Description Cylinder Capacity Horse Power Year
3.0 V6 (916S1) 2959 CCM 192 HP 06/1995 - 04/2005
2.0 V6 Turbo (916S2A) 1996 CCM 202 HP 05/1998 - 04/2005
3.0 V6 (916S1) 2959 CCM 192 HP 04/1995 - 04/1998
3.0 V6 24V (916S1) 2959 CCM 220 HP 01/1999 - 10/2003
FIAT
CROMA (154_)
Description Cylinder Capacity Horse Power Year
2500 V6 2492 CCM 162 HP 06/1993 - 08/1996

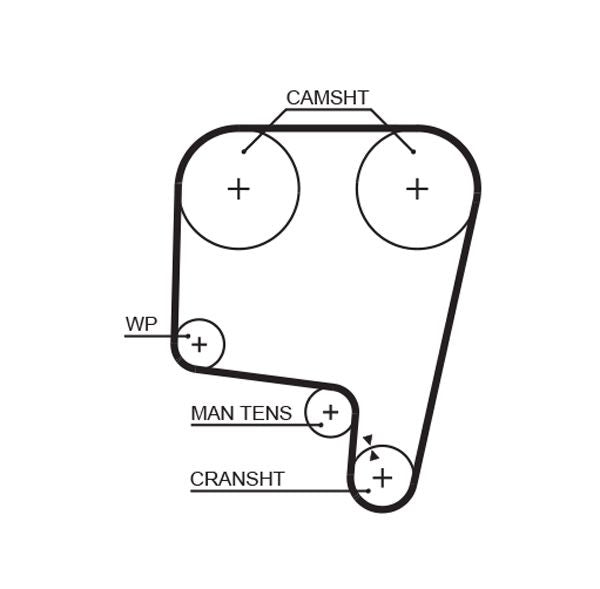

The Gates 5340 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Polychloroprene (Neoprene) belt material, 134 teeth, 25 mm width, and 1,276 mm length. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Belt Material : Polychloroprene (Neoprene)
Number of Teeth : 134
Width [mm] : 25
Tooth Pitch [mm] : 9.525
Length [mm] : 1,276
Driven Units : Camshaft
  • Vendor GATES
  • SKU 5340
  • Barcode 5412571009415
  • ALFA ROMEO : 60500466 60807898
  • FIAT : 60500466 60500466B 60807898
  • LANCIA : 60500466 60807898
  • DANA : PMTB280
  • APEC : AWB1067
  • APEC : BCY1653
  • BLUE PRINT : ADA108220
  • BLUE PRINT : ADBP440007
  • BLUE PRINT : ADG04205
  • BLUE PRINT : ADG042101
  • BLUE PRINT : ADG04241
  • BORG & BECK : BBS6105
  • BORG & BECK : BBW1972
  • BORG & BECK : BDS1524
  • BORG & BECK : BWK976
  • BOSCH : F 026 002 039
  • BREMBO : A 12 C60
  • BREMBO : P 15 011
  • CORTECO : 49368554
  • DELPHI : LP1928
  • DELPHI : LW90216
  • DENSO : ITV22
  • FEBI BILSTEIN : 108151
  • FEBI BILSTEIN : 16681
  • FEBI BILSTEIN : 181567
  • FEBI BILSTEIN : 193452
  • FEBI BILSTEIN : 23377
  • FIRST LINE : FBK976
  • GATES : 6202MC
  • GATES : 6265MC
  • LUCAS : LKBA99073
  • MEYLE : 614 650 0005
  • MINTEX : MDB2744
  • NAPA : NCY1128
  • NAPA : PWB1067
  • National : NBK1022
  • National : NWC5193
  • Schaeffler FAG : 713 6440 90
  • SKF : VKBA 3620
  • TEXTAR : 2172502
  • TRW : GDB3365
  • VALEO : 301574
  • VALEO : 598051
  • VALEO : 598870
  • GATES : 859515340
