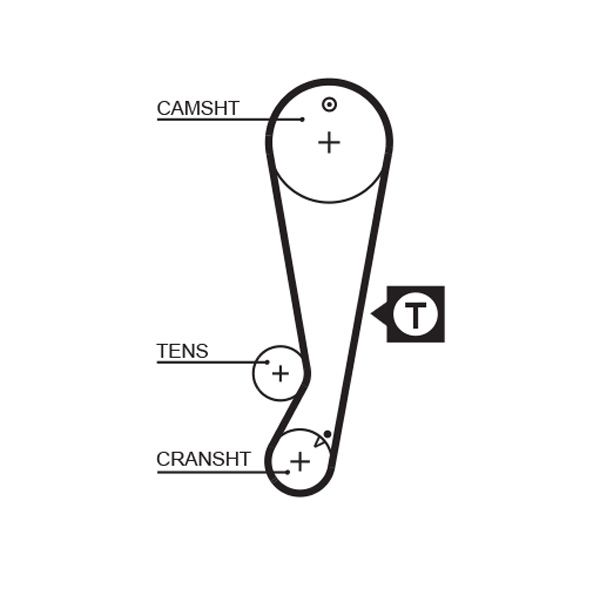

Gates 5403XS Timing Belt - 1
Gates 5403XS Timing Belt video
Gates 5403XS Timing Belt - 1
Gates 5403XS Timing Belt video
GATES

Gates 5403XS Timing Belt

SKU: 5403XS
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£35.35 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
AVENSIS (_T22_)
Description Cylinder Capacity Horse Power Year
1.6 i (AT220_, AT220R) 1587 CCM 101 HP 09/1997 - 10/2000
1.6 i (AT220_, AT220R) 1587 CCM 110 HP 10/1997 - 06/2000
AVENSIS Liftback (_T22_)
Description Cylinder Capacity Horse Power Year
1.6 i (AT220_, AT220R) 1587 CCM 101 HP 09/1997 - 10/2000
1.6 i (AT220_, AT220R) 1587 CCM 110 HP 09/1997 - 10/2000
AVENSIS Estate (_T22_)
Description Cylinder Capacity Horse Power Year
1.6 i (AT220_, AT220R) 1587 CCM 101 HP 09/1997 - 10/2000
1.6 i (AT220_) 1587 CCM 110 HP 09/1997 - 10/2000
CARINA E VI Sportswagon (_T19_)
Description Cylinder Capacity Horse Power Year
1.6 GLI (AT190_, AT190R) 1587 CCM 107 HP 01/1993 - 09/1997
1.6 i (AT190_, AT190R) 1587 CCM 99 HP 02/1995 - 09/1997
1.6 (AT190) 1587 CCM 115 HP 04/1992 - 09/1997
CARINA E VI (_T19_)
Description Cylinder Capacity Horse Power Year
1.6 GLI (AT190) 1587 CCM 107 HP 04/1992 - 09/1997
1.6 (AT190) 1587 CCM 99 HP 12/1993 - 09/1997
1.6 (AT190) 1587 CCM 116 HP 12/1993 - 09/1997
1.6 16V (AT190_, AT190R) 1587 CCM 106 HP 10/1995 - 09/1997
CARINA E VI Saloon (_T19_)
Description Cylinder Capacity Horse Power Year
1.6 (AT190) 1587 CCM 107 HP 01/1993 - 09/1997
1.6 (AT190) 1587 CCM 99 HP 01/1995 - 09/1997
1.6 (AT190) 1587 CCM 106 HP 10/1995 - 09/1997
1.6 16V (AT190_, AT190R) 1587 CCM 116 HP 12/1994 - 09/1997
1.5 SG (AT192_, AT192R) 1498 CCM 105 HP 04/1992 - 09/1997
COROLLA Liftback (_E9_)
Description Cylinder Capacity Horse Power Year
1.6 EFi (AE92, AE93) 1587 CCM 116 HP 05/1992 - 04/1997
COROLLA (_E10_)
Description Cylinder Capacity Horse Power Year
1.6 Si (AE101_, AE101R) 1587 CCM 114 HP 09/1995 - 04/1997
1.6 (AE101_, AE101R) 1587 CCM 115 HP 05/1992 - 04/1997
1.6 (AE101) 1587 CCM 103 HP 09/1991 - 07/1995
1.6 (AE101_, AE101R) 1587 CCM 106 HP 09/1994 - 12/1997
1.5 (AE100) 1498 CCM 105 HP 06/1991 - 12/1997
COROLLA LEVIN Coupe (_E10_)
Description Cylinder Capacity Horse Power Year
1.6 GT (AE101) 1587 CCM 116 HP 06/1991 - 05/1995
1.5 (AE100) 1498 CCM 105 HP 06/1991 - 05/1995
COROLLA Estate (_E10_)
Description Cylinder Capacity Horse Power Year
1.6 Si (AE101_, AE101R) 1587 CCM 114 HP 07/1992 - 04/1997
COROLLA Compact (_E10_)
Description Cylinder Capacity Horse Power Year
1.6 Si (AE101_, AE101R) 1587 CCM 114 HP 07/1992 - 04/1997
1.6 i (AE101) 1587 CCM 106 HP 09/1994 - 11/1999
COROLLA Liftback (_E10_)
Description Cylinder Capacity Horse Power Year
1.6 GLI (AE101_, AE101R) 1587 CCM 114 HP 07/1992 - 04/1997
COROLLA (_E11_)
Description Cylinder Capacity Horse Power Year
1.6 Aut. (AE111_, AE111R) 1587 CCM 107 HP 04/1997 - 02/2000
1.6 (AE111) 1587 CCM 110 HP 05/1995 - 02/2000
COROLLA LEVIN Coupe (_E11_)
Description Cylinder Capacity Horse Power Year
1.5 (AE110) 1498 CCM 101 HP 06/1995 - 04/1998
COROLLA Compact (_E11_)
Description Cylinder Capacity Horse Power Year
1.6 (AE111_) 1587 CCM 110 HP 05/1997 - 02/2000
1.6 Aut. (AE111_, AE111R) 1587 CCM 107 HP 05/1997 - 02/2000
COROLLA Liftback (_E11_)
Description Cylinder Capacity Horse Power Year
1.6 (AE111_, AE111R) 1587 CCM 110 HP 05/1997 - 08/2001
1.6 Aut. (AE111_) 1587 CCM 107 HP 05/1997 - 02/2000
COROLLA Estate (_E11_)
Description Cylinder Capacity Horse Power Year
1.6 (AE111_, AE111R) 1587 CCM 110 HP 04/1997 - 02/2000
1.6 Aut. (AE111_, AE111R) 1587 CCM 107 HP 04/1997 - 02/2000
CORONA Saloon (_T19_)
Description Cylinder Capacity Horse Power Year
1.6 (AT190) 1587 CCM 99 HP 02/1992 - 09/1997
SPRINTER Saloon (_E1_)
Description Cylinder Capacity Horse Power Year
1.5 (AE100_, AE100) 1498 CCM 101 HP 06/1991 - 11/2002
1.6 4WD (AE104_, AE104) 1587 CCM 116 HP 09/1991 - 04/1995
GEELY
CK
Description Cylinder Capacity Horse Power Year
1.3 1342 CCM 86 HP From 09/2005
1.5 1498 CCM 94 HP From 09/2005
1.6 1587 CCM 107 HP 09/2005 - 06/2011

The Gates 5403XS Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Fiberglass tensile cord material, HNBR (hydrogenated nitrile butadiene rubber) belt material, black colour, and 117 teeth. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Article number of the recommended special tool : STT-1
Tensile Cord Material : Fiberglass
Belt Material : HNBR (hydrogenated nitrile butadiene rubber)
Colour : black
Number of Teeth : 117
Width [mm] : 21.1
Tooth Pitch [mm] : 8
Length [mm] : 936
Construction Year from : 10.1997
Construction Year to : 06.2000
Driven Units : Camshaft
  • Vendor GATES
  • SKU 5403XS
  • Barcode 5412571011593
  • TOYOTA : 13568-09020 13568-09060 13568-16040 13568-16050 13568-16051 13568-19045 13568-19046
  • DANA : PMTB212
  • GEELY : E030000701 MR479Q0300007
  • FAW (TIANJIN) : 13568-09060
  • GREAT WALL : 1021017-E10-A1
  • LIFAN : LF479Q11025016A
  • BLUE PRINT : ADT37303
  • BLUE PRINT : ADT37521
  • BOSCH : 1 987 949 158
  • FEBI BILSTEIN : 24363
  • FEBI BILSTEIN : 24788
  • LEMFÖRDER : 18603 01
  • GATES : 859715403
