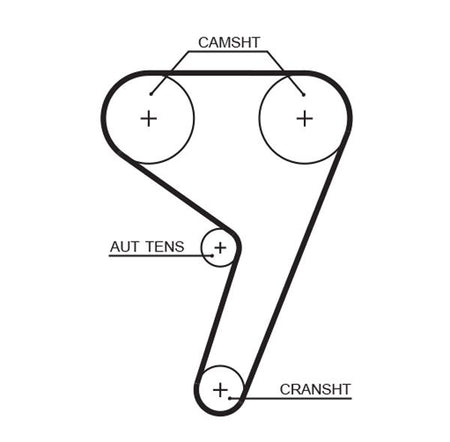

Gates 5433XS Timing Belt - 1
Gates 5433XS Timing Belt video

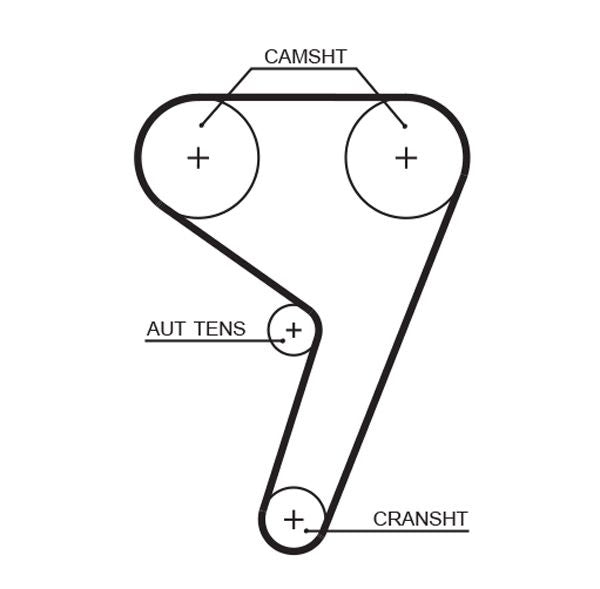

Gates 5433XS Timing Belt - 1
Gates 5433XS Timing Belt video
GATES

Gates 5433XS Timing Belt

SKU: 5433XS
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£26.68 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
COURIER Box Body/MPV (J5_, J3_)
Description Cylinder Capacity Horse Power Year
1.4 i 1388 CCM 90 HP 04/1996 - 10/1999
COURIER Hatchback Van (JV_)
Description Cylinder Capacity Horse Power Year
1.4 1388 CCM 90 HP 08/1998 - 04/2002
FIESTA Mk IV (JA_, JB_)
Description Cylinder Capacity Horse Power Year
1.25 i 16V 1242 CCM 75 HP 08/1995 - 01/2002
1.4 i 16V 1388 CCM 90 HP 04/1996 - 01/2002
1.6 16V Sport 1596 CCM 103 HP 02/2000 - 01/2002
FIESTA V (JH_, JD_)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 80 HP 11/2001 - 06/2008
1.6 16V 1596 CCM 100 HP 11/2001 - 06/2008
1.25 16V 1242 CCM 70 HP 03/2003 - 06/2008
1.25 16V 1242 CCM 75 HP 05/2002 - 06/2008
FOCUS I Estate Van (DNW)
Description Cylinder Capacity Horse Power Year
1.6 1596 CCM 101 HP 04/1999 - 03/2005
FOCUS I (DAW, DBW)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 75 HP 10/1998 - 11/2004
1.6 16V 1596 CCM 100 HP 10/1998 - 11/2004
1.4 16V 1388 CCM 75 HP 10/1998 - 09/1999
FOCUS I Turnier (DNW)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 75 HP 02/1999 - 11/2004
1.6 16V 1596 CCM 100 HP 02/1999 - 11/2004
FOCUS I Saloon (DFW)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 75 HP 02/1999 - 11/2004
1.6 16V 1596 CCM 100 HP 02/1999 - 11/2004
FOCUS C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
1.6 1596 CCM 100 HP 10/2003 - 03/2007
1.6 Ti 1596 CCM 115 HP 08/2004 - 03/2007
FOCUS II (DA_, HCP, DP)
Description Cylinder Capacity Horse Power Year
1.6 1596 CCM 100 HP 07/2004 - 09/2012
1.6 Ti 1596 CCM 115 HP 07/2004 - 09/2012
1.4 1388 CCM 80 HP 07/2004 - 09/2012
FOCUS II Station Wagon (DA_, FFS, DS)
Description Cylinder Capacity Horse Power Year
1.4 1388 CCM 80 HP 07/2004 - 09/2012
1.6 1596 CCM 100 HP 07/2004 - 07/2011
1.6 Ti 1596 CCM 115 HP 07/2004 - 09/2012
FUSION (JU_)
Description Cylinder Capacity Horse Power Year
1.4 1388 CCM 80 HP 08/2002 - 12/2012
1.6 1596 CCM 100 HP 08/2002 - 11/2009
1.25 1242 CCM 75 HP 08/2004 - 12/2012
KA+ III (UK, FK)
Description Cylinder Capacity Horse Power Year
1.2 1194 CCM 69 HP From 02/2018
PUMA (EC_)
Description Cylinder Capacity Horse Power Year
1.7 16V 1679 CCM 125 HP 03/1997 - 06/2002
1.4 16V 1388 CCM 90 HP 11/1997 - 10/2000
Racing ST 160 1679 CCM 155 HP 06/1999 - 06/2002
1.6 16V 1596 CCM 103 HP 08/2000 - 06/2002
MAZDA
2 (DY)
Description Cylinder Capacity Horse Power Year
1.4 1388 CCM 80 HP 04/2003 - 06/2007
1.6 1596 CCM 100 HP 04/2003 - 06/2007
1.2 (DY3W) 1242 CCM 75 HP 04/2003 - 06/2007
1.3 L (DY3W) 1349 CCM 91 HP 04/2003 - 06/2007
1.6 1596 CCM 101 HP 02/2003 - 06/2007
121 III (JASM, JBSM)
Description Cylinder Capacity Horse Power Year
1.25 1242 CCM 75 HP 03/1996 - 04/2003
VOLVO
S40 II (544)
Description Cylinder Capacity Horse Power Year
1.6 1596 CCM 101 HP 01/2005 - 12/2012
V50 (545)
Description Cylinder Capacity Horse Power Year
1.6 1596 CCM 101 HP 01/2005 - 12/2012

The Gates 5433XS Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Fiberglass tensile cord material, HNBR (hydrogenated nitrile butadiene rubber) belt material, black colour, and 117 teeth. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Tensile Cord Material : Fiberglass
Belt Material : HNBR (hydrogenated nitrile butadiene rubber)
Colour : black
Number of Teeth : 117
Width [mm] : 22
Tooth Pitch [mm] : 9.525
Length [mm] : 1,114
Driven Units : Camshaft
Article number of the recommended special tool : GAT4404C
  • Vendor GATES
  • SKU 5433XS
  • Barcode 5412571012217
  • BLUE PRINT : ADM57530
  • BOSCH : 1 987 949 505
  • FEBI BILSTEIN : 10945
  • FEBI BILSTEIN : 40562
  • LEMFÖRDER : 18379 01
  • User manual
  • GATES : 859715433
