GATES

Gates 5436XS Timing Belt

SKU: 5436XS
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£33.17 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

DAIHATSU
LEEZA
Description Cylinder Capacity Horse Power Year
0.5 548 CCM 31 HP 01/1986 - 12/1992
MITSUBISHI
CHALLENGER / SHOGUN SPORT I (K7_, K9_)
Description Cylinder Capacity Horse Power Year
2.5 TD (K94W) 2477 CCM 99 HP From 11/1998
2.5 TD (K94W) 2477 CCM 115 HP 02/2000 - 06/2007
2.5 TD (K94W) 2477 CCM 133 HP From 08/2003
2.5 TD 4WD (K94W) 2477 CCM 112 HP 11/1997 - 10/1998
DELICA / SPACE GEAR
Description Cylinder Capacity Horse Power Year
2.5 2477 CCM 99 HP 05/1995 - 05/2000
2.5 (PD5W) 2477 CCM 99 HP 05/1995 - 05/2000
L 300 / DELICA II Platform/Chassis (L03_P)
Description Cylinder Capacity Horse Power Year
2.5 D (L039P) 2477 CCM 69 HP 11/1986 - 04/1994
L 300 III Bus (P0_W, P1_W, P2_W, P3_W)
Description Cylinder Capacity Horse Power Year
2.5 D (P05W, P15W, P25W) 2477 CCM 69 HP 11/1986 - 05/2004
2.5 TD 4WD (P25W, P35W) 2477 CCM 87 HP 12/1987 - 05/2004
2.5 D (P05W, P15W) 2477 CCM 75 HP 09/1991 - 09/2003
L 300 III Van (P0_V, P1_V, P2_V)
Description Cylinder Capacity Horse Power Year
2.5 D (P05V, P05W, P15V) 2477 CCM 69 HP 11/1986 - 02/2006
2.5 TD 4WD (P25V) 2477 CCM 87 HP 11/1991 - 05/2003
2.5 D (P05V, P15V) 2477 CCM 75 HP 09/1991 - 09/2003
L 300 III Platform/Chassis (P1_T )
Description Cylinder Capacity Horse Power Year
2.5 TD (P15T) 2477 CCM 87 HP 11/1994 - 04/2000
L200 (K3_T, K2_T, K1_T, K0_T)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD (K34T) 2477 CCM 87 HP 11/1992 - 08/1996
2.5 D (K14T) 2476 CCM 70 HP 11/1986 - 10/1996
L200 (K7_T, K6_T, K5_T)
Description Cylinder Capacity Horse Power Year
2.5 D (K64T) 2477 CCM 75 HP 06/1996 - 12/2007
2.5 TD 4WD (K74T) 2477 CCM 99 HP 06/1996 - 12/2007
2.5 TD 4WD (K74T) 2477 CCM 115 HP 09/2001 - 12/2007
2.5 TD 4WD (K74T) 2477 CCM 133 HP 08/2001 - 12/2007
2.5 TD (K64T) 2477 CCM 90 HP 08/2001 - 11/2005
2.5 TDiC 2477 CCM 101 HP 08/2001 - 09/2005
L200 / TRITON (KA_T, KB_T)
Description Cylinder Capacity Horse Power Year
2.5 DI-D (KA4T) 2477 CCM 167 HP 08/2007 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 136 HP 11/2005 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 167 HP 10/2007 - 12/2015
2.5 DI-D (KA4T) 2477 CCM 136 HP 11/2005 - 12/2015
2.5 DI-D (KA4T) 2477 CCM 128 HP 04/2010 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 178 HP 04/2010 - 12/2015
2.5 DI-D 16V 4WD 2477 CCM 133 HP 04/2007 - 12/2015
2.5 DI-D (KA4T) 2477 CCM 178 HP 01/2010 - 12/2015
2.5 TD (KA4T) 2477 CCM 90 HP 08/2011 - 12/2015
2.5 D 2477 CCM 75 HP 08/2011 - 12/2015
2.5 D 4WD 2477 CCM 75 HP 08/2011 - 12/2015
L200 / TRITON Platform/Chassis (KA_T, KB_T)
Description Cylinder Capacity Horse Power Year
2.5 DI-D (KA4T) 2477 CCM 128 HP 08/2007 - 12/2015
L200 / TRITON (KJ_, KK_, KL_)
Description Cylinder Capacity Horse Power Year
2.5 DI-D 4WD 2477 CCM 136 HP From 11/2014
L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W)
Description Cylinder Capacity Horse Power Year
2.5 TD (PA5V/W, PB5V) 2477 CCM 99 HP 05/1995 - 05/2000
2.5 TD 4WD (PD5V/W) 2477 CCM 99 HP 05/1995 - 05/2000
2500 TD (PA5W) 2477 CCM 87 HP 05/1995 - 06/2005
L400 Van (PD_W, PC_W, PB_V, PA_W, PA_V)
Description Cylinder Capacity Horse Power Year
2500 TD (PD5W, PD5V, PA5W, PA5V) 2477 CCM 87 HP 09/1996 - 06/2005
2500 TD 4WD (PD5W, PD5V, PA5W, PA5V) 2477 CCM 87 HP 09/1996 - 06/2005
PAJERO SPORT II (KH_, KG_)
Description Cylinder Capacity Horse Power Year
2.5 DI-D 4WD (KH4W) 2477 CCM 178 HP From 07/2008
PAJERO/SHOGUN   Canvas Top (V2_C, V4_C)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD (V24C) 2477 CCM 99 HP 12/1990 - 04/2000
2.5 TDiC (V24W, V24C) 2477 CCM 99 HP 03/1991 - 08/1999
PAJERO/SHOGUN Mk II (V3_W, V2_W, V4_W, V5_W)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD (V24W) 2477 CCM 99 HP 12/1990 - 10/1999
2.5 TDiC (V44W, V24W) 2477 CCM 99 HP 03/1991 - 08/1999
PAJERO/SHOGUN III (V7_W, V6_W)
Description Cylinder Capacity Horse Power Year
2.5 TDi (V64W) 2477 CCM 99 HP 04/2000 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 115 HP 09/2001 - 12/2006
PAJERO/SHOGUN Mk III Canvas Top (V6_W, V7_W)
Description Cylinder Capacity Horse Power Year
2.5 TDi (V64W, V74W) 2477 CCM 99 HP 04/2000 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 115 HP 09/2001 - 12/2006
PAJERO/SHOGUN CLASSIC (V2_W, V6_W, V7_W)
Description Cylinder Capacity Horse Power Year
2.5 TD (V24W) 2477 CCM 115 HP From 07/2001
SHOGUN SPORT VAN I 4Work (K90)
Description Cylinder Capacity Horse Power Year
2.5 TD 2477 CCM 115 HP 12/1999 - 01/2008
HYUNDAI
GALLOPER I
Description Cylinder Capacity Horse Power Year
2.5 TD 2477 CCM 85 HP 08/1991 - 07/1998
2.5 TD intercooler 2477 CCM 95 HP 08/1991 - 07/1998
GALLOPER II (JK-01)
Description Cylinder Capacity Horse Power Year
2.5 TD intercooler 2476 CCM 99 HP 08/1998 - 12/2003
2.5 TCi D 2476 CCM 105 HP 08/1998 - 12/2003
2.5 TD 2476 CCM 88 HP 08/1998 - 12/2003
H-1 / STAREX Bus (A1)
Description Cylinder Capacity Horse Power Year
2.5 TD 2476 CCM 80 HP 06/1997 - 04/2004
2.5 TD 4WD 2476 CCM 80 HP 02/1998 - 04/2004
2.5 D 2476 CCM 78 HP 10/1997 - 04/2004
2.5 TCi 2476 CCM 99 HP 10/1997 - 12/2007
2.5 TD 4WD 2476 CCM 99 HP 03/2001 - 04/2004
2.5 TD 4WD 2476 CCM 101 HP 11/2001 - 04/2004
H-1 Van (A1)
Description Cylinder Capacity Horse Power Year
2.5 TD 2476 CCM 80 HP 03/2000 - 09/2000
2.5 TD 2476 CCM 99 HP 03/2000 - 10/2006
2.5 TD 2476 CCM 101 HP 10/2001 - 08/2007
H100 Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.5 D 2476 CCM 80 HP 05/1996 - 12/1997
2.5 D 2476 CCM 78 HP 07/1993 - 12/1997
H100 Bus (P)
Description Cylinder Capacity Horse Power Year
2.5 D 2476 CCM 78 HP 12/1994 - 03/2000
2.5 TD 2476 CCM 80 HP 07/1993 - 03/2000
H100 Van
Description Cylinder Capacity Horse Power Year
2.5 D 2476 CCM 78 HP 12/1994 - 03/2000
2.5 TDiC 2476 CCM 80 HP 06/1998 - 10/2003
PORTER Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.5 TD 2477 CCM 99 HP 07/1994 - 04/2004
2.5 TD 2476 CCM 78 HP 07/1994 - 04/2004
PORTER Bus
Description Cylinder Capacity Horse Power Year
2.5 TD 2476 CCM 78 HP 07/1994 - 04/2004
PORTER Van
Description Cylinder Capacity Horse Power Year
2.5 TD 2476 CCM 78 HP 07/1994 - 04/2004
2.5 TD 2477 CCM 99 HP 07/1994 - 04/2004
TERRACAN (HP)
Description Cylinder Capacity Horse Power Year
2.5 TD 2476 CCM 101 HP 12/2001 - 12/2006
TERRACAN (HP)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD 2476 CCM 101 HP 12/2001 - 12/2006
KIA
K2500 Platform/Chassis (SD)
Description Cylinder Capacity Horse Power Year
2.5 D 2476 CCM 94 HP From 01/2003
PREGIO Van (TB)
Description Cylinder Capacity Horse Power Year
2.5 TCi D 2476 CCM 94 HP From 09/2002
GALLOPER
GALLOPER
Description Cylinder Capacity Horse Power Year
2.5 TD intercooler (KNE1CP, KPE1CP) 2476 CCM 99 HP 11/1997 - 08/2002
2.5 TD (KNE1CP) 2476 CCM 88 HP 11/1997 - 08/2002

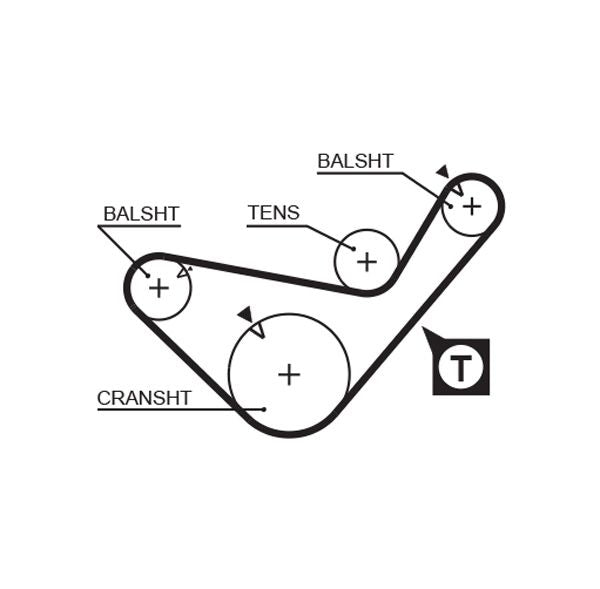

The Gates 5436XS Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Fiberglass tensile cord material, HNBR (hydrogenated nitrile butadiene rubber) belt material, black colour, and 99 teeth. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Article number of the recommended special tool : STT-1
Tensile Cord Material : Fiberglass
Belt Material : HNBR (hydrogenated nitrile butadiene rubber)
Colour : black
Number of Teeth : 99
Width [mm] : 19.1
Tooth Pitch [mm] : 8
Length [mm] : 792
Construction Year from : 04.1989
Construction Year to : 11.1992
Driven Units : Balance shaft
  • Vendor GATES
  • SKU 5436XS
  • Barcode 5412571013740
  • DAIHATSU : 1351487205
  • FIAT : 6000608171
  • INNOCENTI : 6551002309
  • MITSUBISHI : 1145A081 MD300473 MD310484 XD310484
  • HYUNDAI : 23356-42500 2335642510
  • KIA : 23356-42500
  • DANA : PMTB427
  • RAM : 6000608171
  • BLUE PRINT : ADC47523
  • BOSCH : 1 987 949 600
  • FEBI BILSTEIN : 26113
  • LEMFÖRDER : 18716 01
  • GATES : 859715436
