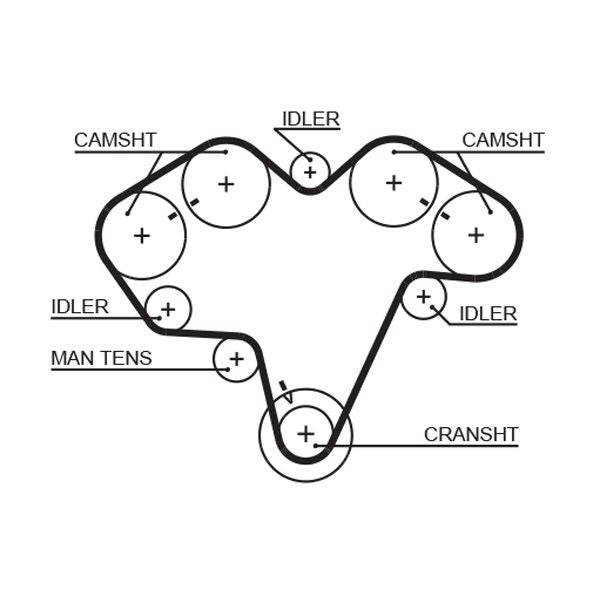

Gates 5475 Timing Belt - 1
Gates 5475 Timing Belt video
Gates 5475 Timing Belt - 1
Gates 5475 Timing Belt video
GATES

Gates 5475 Timing Belt

SKU: 5475
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£36.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO
164 (164_)
Description Cylinder Capacity Horse Power Year
3.0 24V (164.K1) 2959 CCM 211 HP 09/1992 - 09/1998
3.0 24V QV (164.H1) 2959 CCM 233 HP 09/1992 - 09/1998
3.0 24V Q4 (164.K1M, 164.K1C) 2959 CCM 231 HP 02/1994 - 09/1998

The Gates 5475 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Polychloroprene (Neoprene) belt material, 174 teeth, 28 mm width, and 1,657 mm length. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Belt Material : Polychloroprene (Neoprene)
Number of Teeth : 174
Width [mm] : 28
Tooth Pitch [mm] : 9.525
Length [mm] : 1,657
Driven Units : Camshaft
  • Vendor GATES
  • SKU 5475
  • Barcode 5412571024937
  • ALFA ROMEO : 60561244
  • LANCIA : 60810652 60812141
  • DANA : PMTB375
  • BLUE PRINT : ADT343104
  • BORG & BECK : BCA7899
  • BORG & BECK : BEM3114
  • BOSCH : 0 986 479 336
  • BREMBO : M 24 010
  • CORTECO : 21651937
  • DELPHI : BG2884
  • DELPHI : BG3583
  • DELPHI : LM80168
  • DELPHI : TC4715
  • FEBI BILSTEIN : 07186
  • FEBI BILSTEIN : 109478
  • FEBI BILSTEIN : 180543
  • FEBI BILSTEIN : 40659
  • FIRST LINE : FCA7899
  • FIRST LINE : FEM3114
  • FTE : 9072821
  • FTE : 9220237
  • GATES : ETM1649
  • HELLA : 8AM 355 502-861
  • MEYLE : 100 199 0036
  • MONROE : L25J10
  • National : NBK1007
  • Schaeffler FAG : 713 6109 60
  • Schaeffler FAG : 821 1322 10
  • SKF : VKDS 326107 B
  • TRW : DF4728
  • TRW : PMK592
  • GATES : 859515475
