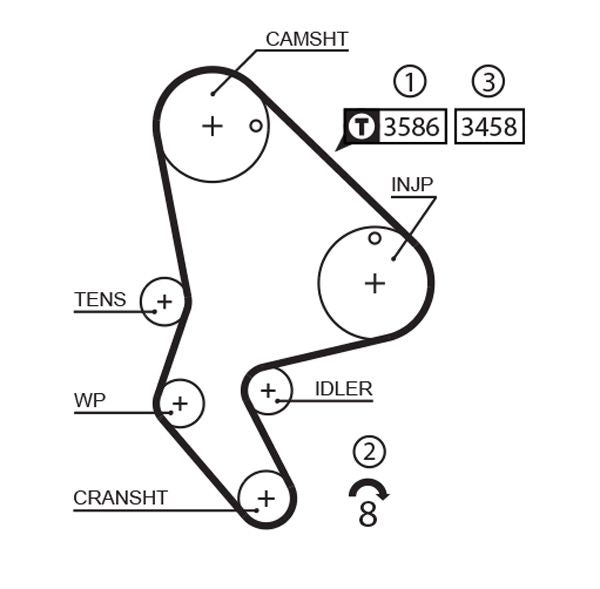

Gates 5524XS Timing Belt - 1
Gates 5524XS Timing Belt video
Gates 5524XS Timing Belt - 1
Gates 5524XS Timing Belt video
GATES

Gates 5524XS Timing Belt

SKU: 5524XS
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£28.65 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
BERLINGO / BERLINGO FIRST Box Body/MPV (M_)
Description Cylinder Capacity Horse Power Year
2.0 HDI 90 (MBRHY, MCRHY) 1997 CCM 90 HP 12/1999 - 12/2011
2.0 HDI 90 4WD (MBRHY, MCRHY) 1997 CCM 90 HP 11/2000 - 10/2005
BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_)
Description Cylinder Capacity Horse Power Year
2.0 HDI 90 (MFRHY) 1997 CCM 90 HP 12/1999 - 10/2005
C4 I (LC_)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 110 HP 04/2007 - 07/2008
C5 I (DC_)
Description Cylinder Capacity Horse Power Year
2.0 HDi (DCRHZB, DCRHZE) 1997 CCM 109 HP 03/2001 - 08/2004
2.0 HDi (DCRHYB) 1997 CCM 90 HP 03/2001 - 08/2004
2.0 HDi 1997 CCM 107 HP 03/2001 - 08/2004
C5 I Estate (DE_)
Description Cylinder Capacity Horse Power Year
2.0 HDi (DERHSB, DERHSE) 1997 CCM 107 HP 06/2001 - 08/2004
2.0 HDi (DERHYB) 1997 CCM 90 HP 06/2001 - 08/2004
2.0 HDi (DERHZB, DERHZE) 1997 CCM 109 HP 06/2001 - 08/2004
C5 I Estate Van (DE_)
Description Cylinder Capacity Horse Power Year
2.0 HDi (DERHYB) 1997 CCM 90 HP 06/2002 - 08/2004
DISPATCH I (U6U_)
Description Cylinder Capacity Horse Power Year
2.0 HDi 95 1997 CCM 94 HP 10/1999 - 10/2006
2.0 HDi 110 1997 CCM 109 HP 03/2000 - 10/2006
DISPATCH I Van (BS_, BT_, BY_, BZ_)
Description Cylinder Capacity Horse Power Year
2.0 HDi 95 1997 CCM 94 HP 10/1999 - 10/2006
2.0 HDi 110 1997 CCM 109 HP 10/2001 - 10/2006
DISPATCH I Platform/Chassis (BU_, BV_, BW_, BX_)
Description Cylinder Capacity Horse Power Year
2.0 HDi 95 1997 CCM 94 HP 10/1999 - 10/2006
2.0 HDi 110 1997 CCM 109 HP 12/2003 - 10/2006
RELAY I Van (230L)
Description Cylinder Capacity Horse Power Year
2.0 HDI 1997 CCM 84 HP 11/2001 - 04/2002
RELAY II Platform/Chassis (244)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 84 HP 04/2002 - 06/2006
RELAY II Bus (244, Z_)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 84 HP 04/2002 - 06/2006
RELAY II Van (244)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 84 HP 04/2002 - 06/2006
SYNERGIE MPV (22, U6)
Description Cylinder Capacity Horse Power Year
2.0 HDI 1997 CCM 109 HP 08/1999 - 07/2002
2.0 HDI 1997 CCM 110 HP 08/1999 - 07/2002
XANTIA Estate (X1_, X2_)
Description Cylinder Capacity Horse Power Year
2.0 HDI 109 1997 CCM 109 HP 02/1999 - 04/2003
2.0 HDI 90 1997 CCM 90 HP 03/1999 - 04/2003
XSARA (N1)
Description Cylinder Capacity Horse Power Year
2.0 HDi 90 1997 CCM 90 HP 02/1999 - 03/2005
XSARA Estate (N2)
Description Cylinder Capacity Horse Power Year
2.0 HDI 90 1997 CCM 90 HP 02/1999 - 08/2005
XSARA Coupe (N0)
Description Cylinder Capacity Horse Power Year
2.0 HDi 109 1997 CCM 109 HP 05/2001 - 03/2005
2.0 HDI 90 1997 CCM 90 HP 02/1999 - 03/2005
XSARA Hatchback Van (N3_)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 90 HP 09/2000 - 03/2005
XSARA Estate Van
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 90 HP 09/2000 - 03/2005
XSARA PICASSO (N68)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 90 HP 12/1999 - 12/2011
FIAT
DUCATO Platform/Chassis (244_)
Description Cylinder Capacity Horse Power Year
2.0 JTD 1997 CCM 84 HP 12/2001 - 07/2006
DUCATO Bus (244_)
Description Cylinder Capacity Horse Power Year
2.0 JTD 1997 CCM 84 HP 12/2001 - 07/2006
DUCATO Van (244_)
Description Cylinder Capacity Horse Power Year
2.0 JTD 1997 CCM 84 HP 12/2001 - 07/2006
SCUDO Bus (220_)
Description Cylinder Capacity Horse Power Year
2.0 JTD 1997 CCM 109 HP 12/1999 - 12/2006
2.0 JTD 1997 CCM 94 HP 01/2004 - 12/2006
SCUDO Van (220_)
Description Cylinder Capacity Horse Power Year
2.0 JTD 1997 CCM 94 HP 10/1999 - 12/2006
2.0 JTD 1997 CCM 109 HP 12/2002 - 12/2006
SCUDO Platform/Chassis (220_)
Description Cylinder Capacity Horse Power Year
2.0 JTD 1997 CCM 109 HP 12/2002 - 12/2006
2.0 JTD 1997 CCM 94 HP 10/1999 - 12/2006
ULYSSE (220_)
Description Cylinder Capacity Horse Power Year
2.0 JTD 1997 CCM 109 HP 10/1999 - 08/2002
PEUGEOT
206 Hatchback (2A/C)
Description Cylinder Capacity Horse Power Year
2.0 HDI 90 1997 CCM 90 HP 12/1999 - 09/2009
206 SW (2E/K)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 90 HP 07/2002 - 02/2007
306 (7B, N3, N5)
Description Cylinder Capacity Horse Power Year
2.0 HDI 90 1997 CCM 90 HP 06/1999 - 12/2001
306 Break (7E, N3, N5)
Description Cylinder Capacity Horse Power Year
2.0 HDI 90 1997 CCM 90 HP 06/1999 - 04/2002
307 (3A/C)
Description Cylinder Capacity Horse Power Year
2.0 HDi 90 1997 CCM 90 HP 08/2000 - 03/2007
2.0 HDi 110 1997 CCM 107 HP 08/2000 - 03/2007
307 SW (3H)
Description Cylinder Capacity Horse Power Year
2.0 HDI 90 1997 CCM 90 HP 03/2002 - 04/2008
2.0 HDI 110 1997 CCM 107 HP 03/2002 - 12/2009
307 Estate (3E)
Description Cylinder Capacity Horse Power Year
2.0 HDI 90 1997 CCM 90 HP 03/2002 - 04/2008
2.0 HDI 110 1997 CCM 107 HP 03/2002 - 12/2009
406 (8B)
Description Cylinder Capacity Horse Power Year
2.0 HDI 110 1997 CCM 109 HP 06/1998 - 08/2001
2.0 HDI 90 1997 CCM 90 HP 02/1999 - 05/2004
406 Estate (8E/F)
Description Cylinder Capacity Horse Power Year
2.0 HDI 110 1997 CCM 109 HP 02/1999 - 04/2004
2.0 HDI 90 1997 CCM 90 HP 02/1999 - 10/2004
607 (9D, 9U)
Description Cylinder Capacity Horse Power Year
2.0 HDI 1997 CCM 109 HP 05/2000 - 09/2005
2.0 HDi 1997 CCM 107 HP 03/2001 - 09/2004
806 (221)
Description Cylinder Capacity Horse Power Year
2.0 HDI 1997 CCM 109 HP 08/1999 - 08/2002
BOXER Platform/Chassis (244)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 84 HP 12/2001 - 06/2006
BOXER Bus (244, Z_)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 84 HP 12/2001 - 06/2006
BOXER Van (244)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 84 HP 04/2002 - 06/2006
EXPERT Van (222)
Description Cylinder Capacity Horse Power Year
2.0 HDI 1997 CCM 94 HP 07/2000 - 12/2006
2.0 HDI 1997 CCM 109 HP 07/2000 - 12/2006
EXPERT (224_)
Description Cylinder Capacity Horse Power Year
2.0 HDI 1997 CCM 109 HP 07/2000 - 12/2006
2.0 HDi 1997 CCM 94 HP 10/2000 - 10/2006
EXPERT Platform/Chassis (223)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 94 HP 10/2000 - 10/2006
2.0 HDI 1997 CCM 109 HP 10/2000 - 10/2006
PARTNER MPV (5_, G_)
Description Cylinder Capacity Horse Power Year
2.0 HDI 1997 CCM 90 HP 02/2000 - 07/2008
2.0 HDi 4x4 1997 CCM 90 HP 04/2004 - 08/2005
PARTNER Van (5_, G_)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 90 HP 04/2000 - 07/2008
2.0 HDi 4x4 1997 CCM 90 HP 04/2004 - 08/2005
PARTNER Platform/Chassis (5_, G_)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 90 HP 11/2002 - 07/2008
SUZUKI
GRAND VITARA I (FT, HT)
Description Cylinder Capacity Horse Power Year
2.0 HDI 110 4x4 (SQ420D, TD82V) 1997 CCM 109 HP 02/2001 - 12/2003

The Gates 5524XS Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Fiberglass tensile cord material, HNBR (hydrogenated nitrile butadiene rubber) belt material, black colour, and 141 teeth. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Article number of the recommended special tool : STT-1
Tensile Cord Material : Fiberglass
Belt Material : HNBR (hydrogenated nitrile butadiene rubber)
Colour : black
Number of Teeth : 141
Width [mm] : 25.4
Tooth Pitch [mm] : 9.525
Length [mm] : 1,343
Driven Units : Camshaft
Article number of the recommended special tool : GAT4820
  • Vendor GATES
  • SKU 5524XS
  • Barcode 5412571027716
  • BLUE PRINT : ADK87309
  • BLUE PRINT : ADK87512
  • BOSCH : 1 987 949 435
  • FEBI BILSTEIN : 17765
  • MAHLE : CPKX 101 000P
  • SKF : VKMT 03246
  • User manual
  • GATES : 859715524
