GATES

Gates 5560XS Timing Belt

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 5560XS

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£29.28 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA
4 RUNNER IV (_N21_)
Description Cylinder Capacity Horse Power Year
3.0 D-4D 4WD (KDN215) 2982 CCM 170 HP 10/2002 - 08/2005
DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8
Description Cylinder Capacity Horse Power Year
3.0 D4d (KDY221, KDY231, KDY251, KDY261) 2982 CCM 144 HP From 09/2006
3.0 D4d (KDY221, KDY231) 2982 CCM 136 HP From 10/2009
2.5 D4d (KDY220_, KDY230_) 2494 CCM 88 HP From 07/2001
2.5 D4d (KDY230, KDY250, KDY220) 2494 CCM 102 HP From 08/2001
3.0 D4d (KDY261_, KDY251_, KDY231_, KDY221_, KDY221R,... 2982 CCM 109 HP From 09/2006
HIACE IV Bus (__H1_, __H2_)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KLH12) 2494 CCM 88 HP 08/2001 - 08/2006
2.5 D-4D (KLH12, KLH22) 2494 CCM 102 HP 08/2001 - 08/2006
2.5 D-4D (KLH12, KLH22) 2494 CCM 95 HP 09/2006 - 12/2012
2.5 D-4D (KLH12, KLH22) 2494 CCM 117 HP 08/2006 - 12/2012
2.5 D-4D 4WD (KLH18) 2494 CCM 117 HP 09/2006 - 12/2012
HIACE IV Van (__H1_, __H2_)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KLH12, KLH22) 2494 CCM 88 HP 08/2001 - 08/2006
2.5 D-4D (KLH12, KLH22) 2494 CCM 102 HP 08/2001 - 08/2006
2.5 D-4D 4WD (KLH18, KLH28) 2494 CCM 102 HP 08/2001 - 08/2006
2.5 D-4D 4WD (KLH18, KLH28) 2494 CCM 88 HP 08/2001 - 08/2004
2.5 D-4D (KLH12, KLH22) 2494 CCM 117 HP 09/2006 - 12/2012
2.5 D-4D 4WD (KLH28, KLH18) 2494 CCM 117 HP 09/2006 - 12/2012
2.5 D-4D (KLH12, KLH22) 2494 CCM 95 HP 09/2006 - 12/2012
HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)
Description Cylinder Capacity Horse Power Year
3.0 D (KDH221, KDH201) 2982 CCM 136 HP From 05/2010
2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200, KDH220) 2494 CCM 102 HP From 06/2004
3.0 D (KDH201, KDH203, KDH221) 2982 CCM 144 HP From 11/2008
2.5 D-4D 2494 CCM 95 HP From 09/2006
2.5 D-4D (KDH200, KDH202, KDH212, KDH222) 2494 CCM 117 HP From 09/2006
HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__)
Description Cylinder Capacity Horse Power Year
3.0 D (KDH223) 2982 CCM 136 HP From 05/2010
2.5 D-4D (KDH202) 2494 CCM 102 HP From 09/2006
HILUX VI Pickup (_N1_)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KDN145, KDN150) 2494 CCM 88 HP 11/2001 - 07/2005
2.5 D-4D 4WD (KDN165, KDN170, KDN190) 2494 CCM 102 HP 11/2001 - 07/2005
HILUX VIGO VII Pickup (_N1_, _N2_, _N3_)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KUN15, KUN35) 2494 CCM 144 HP 01/2010 - 05/2015
2.5 D 4WD (KUN25) 2494 CCM 102 HP 03/2005 - 05/2015
2.5 D-4D 4WD (KUN25_, KUN25R) 2494 CCM 120 HP 06/2006 - 05/2015
2.5 D-4D (KUN15_, KUN15R) 2494 CCM 120 HP 06/2006 - 05/2015
3.0 D-4D 4WD (KUN26) 2982 CCM 171 HP 08/2005 - 09/2015
2.5 D-4D (KUN15, KUN10) 2494 CCM 102 HP 03/2005 - 05/2015
3.0 D-4D 4WD (KUN26) 2982 CCM 163 HP 03/2005 - 05/2015
2.5 D-4D 4WD (KUN25) 2494 CCM 144 HP 12/2007 - 05/2015
2.5 D-4D 4WD (KUN25_) 2494 CCM 128 HP 11/2004 - 12/2005
3.0 D-4D 4WD (KUN26) 2982 CCM 197 HP 05/2008 - 12/2012
2.5 D-4D (KUN15) 2494 CCM 88 HP 08/2005 - 10/2006
HILUX VII Platform/Chassis (_N1_, _N2_)
Description Cylinder Capacity Horse Power Year
3.0 D 4WD (KUN26) 2982 CCM 171 HP From 02/2005
LAND CRUISER COLORADO (_J9_)
Description Cylinder Capacity Horse Power Year
3.0 D-4D 4WD (KDJ90_, KDJ95_, KDJ90W, KDJ95W) 2982 CCM 163 HP 08/2000 - 08/2002
LAND CRUISER PRADO (_J12_)
Description Cylinder Capacity Horse Power Year
3.0 D-4D (KDJ120, KDJ125) 2982 CCM 163 HP 09/2002 - 08/2009
3.0 D-4D (KDJ120, KDJ125) 2982 CCM 166 HP 07/2004 - 08/2009
3.0 D-4D (KDJ120, KDJ125, KDJ121) 2982 CCM 173 HP 09/2002 - 12/2010
3.0 D-4D (KDJ120_) 2982 CCM 204 HP 08/2006 - 07/2009
LAND CRUISER PRADO (_J15_)
Description Cylinder Capacity Horse Power Year
3.0 D-4D (KDJ155_, KDJ150_, KDJ150R, KDJ155R) 2982 CCM 190 HP From 08/2009
3.0 D-4D (KDJ150_, KDJ150, KDJ155) 2982 CCM 173 HP From 08/2009
LAND CRUISER VAN (_J15_)
Description Cylinder Capacity Horse Power Year
3.0 D4d 4WD (KDJ155, KDJ150) 2982 CCM 190 HP From 01/2011
REGIUS ACE Bus (TRH2_, KDH2_)
Description Cylinder Capacity Horse Power Year
3.0 D-4D (KDH201_, KDH201K, KDH201V) 2982 CCM 144 HP From 08/2004

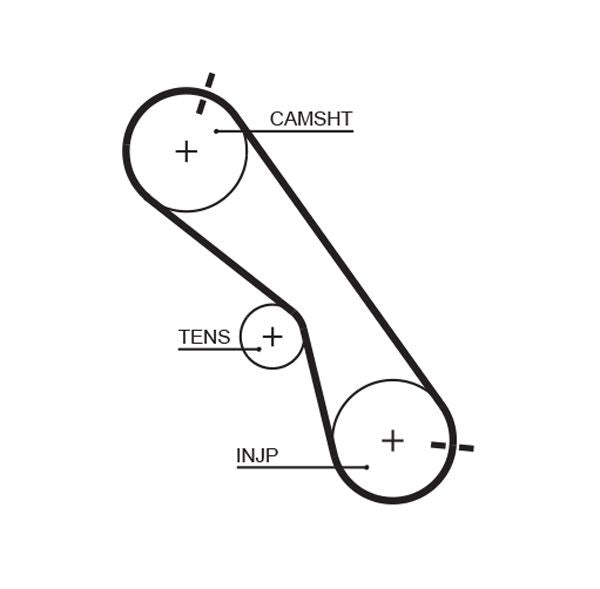

The Gates 5560XS Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Fiberglass tensile cord material, HNBR (hydrogenated nitrile butadiene rubber) belt material, black colour, and 97 teeth. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Tensile Cord Material : Fiberglass
Belt Material : HNBR (hydrogenated nitrile butadiene rubber)
Colour : black
Number of Teeth : 97
Width [mm] : 25
Tooth Pitch [mm] : 9.525
Length [mm] : 924
Driven Units : Injection pump
  • Vendor GATES
  • SKU 5560XS
  • Barcode 5412571996678
  • TOYOTA : 13568-09130 13568-09131 13568-30010 13568-30011 13568-39015 13568-39016
  • BLUE PRINT : ADBP730046
  • BLUE PRINT : ADBP730047
  • BLUE PRINT : ADT37310
  • BLUE PRINT : ADT37322
  • BLUE PRINT : ADT373753
  • BLUE PRINT : ADT373754
  • BLUE PRINT : ADT37538
  • BOSCH : 1 987 949 615
  • FEBI BILSTEIN : 173548
  • FEBI BILSTEIN : 173549
  • FEBI BILSTEIN : 173556
  • FEBI BILSTEIN : 173565
  • FEBI BILSTEIN : 26847
  • GATES : 859715560
