Gates 5646XS Timing Belt

SKU: 5646XS
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£27.92 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO
GIULIETTA (940_)
Description Cylinder Capacity Horse Power Year
1.6 JTDM (940FXD1A) 1598 CCM 105 HP 04/2010 - 02/2016
MITO (955_)
Description Cylinder Capacity Horse Power Year
1.6 JTDM (955AXC1B) 1598 CCM 120 HP 08/2008 - 08/2015
1.6 JTDM (955AXE1B) 1598 CCM 115 HP 08/2008 - 08/2015
CHRYSLER
DELTA
Description Cylinder Capacity Horse Power Year
1.6 D Multijet 1598 CCM 120 HP From 08/2011
FIAT
500L (351_, 352_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet (199LYE1B) 1598 CCM 120 HP From 09/2013
1.6 D Multijet (199LYD1B) 1598 CCM 105 HP 09/2012 - 05/2018
500X (334_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet (334AXA1B, 334AXA11) 1598 CCM 120 HP From 09/2014
1.6 D Multijet (334AXA1B) 1598 CCM 114 HP From 09/2014
BRAVO II (198_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet (198AXM1B) 1598 CCM 90 HP 03/2008 - 12/2014
1.6 D Multijet (198AXH1B) 1598 CCM 105 HP 09/2007 - 12/2014
1.6 D Multijet (198AXL1B) 1598 CCM 120 HP 03/2008 - 12/2014
DOBLO Combi (263_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet (263AXH1A, 263AXL11, 263AXH1B) 1598 CCM 90 HP 02/2010 - 12/2023
1.6 D Multijet (263AXD1B, 263AXX1B) 1598 CCM 105 HP 01/2010 - 12/2023
1.6 D Multijet (263AXP1B, 263AXW1B) 1598 CCM 95 HP 03/2015 - 12/2023
1.6 D Multijet (263AXN1B, 263AXV1B) 1598 CCM 120 HP 03/2015 - 12/2023
1.6 D Multijet (263AXE1B, 263AXY1B) 1598 CCM 100 HP 03/2016 - 12/2023
DOBLO Cargo (263_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet (263WXD1B, 263WXR1B, 263WXX1B, 263ZXD1B,... 1598 CCM 105 HP From 02/2010
1.6 D Multijet 1598 CCM 90 HP 02/2010 - 12/2023
1.6 D Multijet (263ZXE1B, 263ZXS1B, 263ZXY1B, 263WXE1B,... 1598 CCM 100 HP 02/2010 - 12/2023
1.6 D Multijet (263WXN1B, 263ZXN1B, 263ZXV1B, 263WXV1B,... 1598 CCM 120 HP 02/2016 - 12/2023
1.6 D Multijet (263ZXR1B) 1598 CCM 95 HP 03/2015 - 12/2023
DOBLO Platform/Chassis (263_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet (263YXD1B, 263XYR1B, 263YXX1B, 263HXD1B,... 1598 CCM 105 HP 02/2010 - 12/2023
1.6 D Multijet (263HXE1B, 263HXS1B, 263HXY1B, 263YXE1B,... 1598 CCM 101 HP 02/2011 - 12/2023
1.6 D Multijet 1598 CCM 90 HP 02/2010 - 12/2023
1.6 D Multijet (263HXN1B, 263YXN1B, 263HXV1B, 263YXV1B) 1598 CCM 120 HP 02/2016 - 12/2023
GRANDE PUNTO (199_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet 1598 CCM 120 HP From 07/2008
IDEA (350_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet 1598 CCM 120 HP From 05/2008
LINEA (323_, 110_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet 1598 CCM 105 HP From 06/2009
PUNTO EVO (199_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet 1598 CCM 120 HP 10/2009 - 02/2012
TIPO Saloon (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.6 D (356SXG1B) 1598 CCM 120 HP 10/2015 - 10/2020
1.6 Multijet (357SXG1) 1598 CCM 131 HP From 11/2020
TIPO Hatchback (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.6 D (356HXG1B, 356HXG11) 1598 CCM 120 HP 03/2016 - 10/2020
1.6 Multijet (357HXG1) 1598 CCM 131 HP From 11/2020
TIPO Estate (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.6 D (356WXG1B) 1598 CCM 120 HP 03/2016 - 10/2020
1.6 Multijet (357WXG1) 1598 CCM 131 HP From 11/2020
LANCIA
DELTA III (844_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet (844.AXF11, 844.AXF1A) 1598 CCM 116 HP 08/2008 - 08/2014
1.6 D Multijet (844.AXP1A) 1598 CCM 105 HP 04/2011 - 08/2014
1.6 D Multijet (844.AXC11, 844.AXC1A) 1598 CCM 120 HP 09/2008 - 08/2014
OPEL
COMBO Tour (X12)
Description Cylinder Capacity Horse Power Year
1.6 CDTI (C26, D26, E26, C05) 1598 CCM 90 HP From 02/2012
1.6 CDTI (C26, D26, E26, C05) 1598 CCM 105 HP From 02/2012
1.6 CDTI (C26, D26, E26, C05) 1598 CCM 95 HP From 03/2015
1.6 CDTI (C26, D26, E26, C05) 1598 CCM 120 HP From 03/2015
COMBO Box Body/MPV (X12)
Description Cylinder Capacity Horse Power Year
1.6 CDTI (B05) 1598 CCM 90 HP From 02/2012
1.6 CDTI (B05) 1598 CCM 105 HP From 02/2012
1.6 CDTI (B05) 1598 CCM 101 HP From 02/2012
1.6 CDTI (B05) 1598 CCM 120 HP From 04/2015
SUZUKI
SX4 S-CROSS (JY)
Description Cylinder Capacity Horse Power Year
1.6 DDiS (AKK 416D) 1598 CCM 120 HP 08/2013 - 06/2022
1.6 DDiS AllGrip (AKK 416D) 1598 CCM 120 HP 08/2013 - 06/2022
VITARA (LY)
Description Cylinder Capacity Horse Power Year
1.6 DDiS (APK 416D) 1598 CCM 120 HP From 02/2015
1.6 DDiS AllGrip (APK416D) 1598 CCM 120 HP From 02/2015
VAUXHALL
COMBO Mk III (D) Box Body/MPV (X12)
Description Cylinder Capacity Horse Power Year
1.6 CDTi 1598 CCM 90 HP From 11/2011
1.6 CDTi 1598 CCM 105 HP From 11/2011
JEEP
COMPASS (MP, M6, MV, M7)
Description Cylinder Capacity Horse Power Year
1.6 CRD 1598 CCM 120 HP From 03/2017
RENEGADE SUV (BU, B1, BV)
Description Cylinder Capacity Horse Power Year
1.6 CRD 1598 CCM 120 HP From 07/2014
1.6 CRD 1598 CCM 105 HP From 06/2017

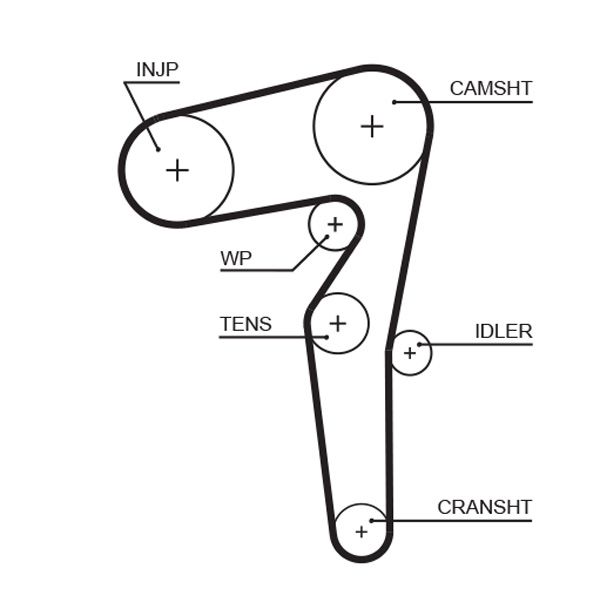

The Gates 5646XS Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Fiberglass tensile cord material, HNBR (hydrogenated nitrile butadiene rubber) belt material, black colour, and 194 teeth. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Tensile Cord Material : Fiberglass
Belt Material : HNBR (hydrogenated nitrile butadiene rubber)
Colour : black
Number of Teeth : 194
Width [mm] : 24
Tooth Pitch [mm] : 8.035
Length [mm] : 1,559
Driven Units : Camshaft
Article number of the recommended special tool : GAT4850
Article number of the recommended special tool : GAT4844
  • Vendor GATES
  • SKU 5646XS
  • Barcode 5414465890482
  • BLUE PRINT : ADL147503
  • BOSCH : 1 987 949 654
  • FEBI BILSTEIN : 47728
  • GATES : 859715646
