Gates 5648XS Timing Belt - 1
Gates 5648XS Timing Belt video
Gates 5648XS Timing Belt - 1
Gates 5648XS Timing Belt video
GATES

Gates 5648XS Timing Belt

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 5648XS

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£48.06 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

AUDI
A3 (8P1)
Description Cylinder Capacity Horse Power Year
2.0 TDI 16V 1968 CCM 140 HP 05/2003 - 08/2012
2.0 TDI 1968 CCM 136 HP 05/2003 - 08/2012
2.0 TDI 16V quattro 1968 CCM 140 HP 08/2004 - 08/2012
2.0 TDI 1968 CCM 170 HP 03/2006 - 08/2012
2.0 TDI quattro 1968 CCM 170 HP 03/2006 - 08/2012
A3 Sportback (8PA)
Description Cylinder Capacity Horse Power Year
2.0 TDI 16V 1968 CCM 140 HP 09/2004 - 03/2013
2.0 TDI 1968 CCM 136 HP 09/2004 - 03/2013
2.0 TDI 16V quattro 1968 CCM 140 HP 11/2005 - 03/2013
2.0 TDI 1968 CCM 170 HP 03/2006 - 03/2013
2.0 TDI quattro 1968 CCM 170 HP 03/2006 - 03/2013
A3 Convertible (8P7)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 140 HP 04/2008 - 05/2013
2.0 TDI 1968 CCM 136 HP 04/2008 - 05/2013
A4 B8 (8K2)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 143 HP 11/2007 - 12/2015
2.0 TDI 1968 CCM 136 HP 11/2007 - 12/2015
A4 B8 Avant (8K5)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 143 HP 04/2008 - 08/2012
2.0 TDI 1968 CCM 170 HP 04/2008 - 03/2012
A4 Allroad B8 (8KH)
Description Cylinder Capacity Horse Power Year
2.0 TDI quattro 1968 CCM 170 HP 04/2009 - 05/2016
2.0 TDI quattro 1968 CCM 143 HP 09/2009 - 05/2016
2.0 TDI quattro 1968 CCM 136 HP 09/2009 - 05/2016
2.0 TDI quattro 1968 CCM 163 HP 04/2009 - 05/2016
A5 Sportback (8TA)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 170 HP 09/2009 - 03/2012
2.0 TDI 1968 CCM 163 HP 02/2012 - 04/2014
A5 Convertible (8F7)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 170 HP 08/2009 - 03/2012
A6 C6 (4F2)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 136 HP 07/2004 - 03/2011
A6 C6 Avant (4F5)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 136 HP 06/2005 - 08/2011
Q5 (8RB)
Description Cylinder Capacity Horse Power Year
2.0 TDI quattro 1968 CCM 170 HP 11/2008 - 09/2012
2.0 TDI quattro 1968 CCM 143 HP 08/2009 - 05/2013
2.0 TDI quattro 1968 CCM 136 HP 08/2009 - 05/2017
2.0 TDI quattro 1968 CCM 163 HP 11/2008 - 05/2017
TT (8J3)
Description Cylinder Capacity Horse Power Year
2.0 TDI quattro 1968 CCM 170 HP 06/2008 - 06/2014
TT Roadster (8J9)
Description Cylinder Capacity Horse Power Year
2.0 TDI quattro 1968 CCM 170 HP 06/2008 - 06/2014
SEAT
ALTEA (5P1)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 170 HP 03/2006 - 05/2010
ALTEA XL (5P5, 5P8)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 170 HP 06/2007 - 12/2013
2.0 TDI 4x4 1968 CCM 170 HP 06/2007 - 06/2013
EXEO (3R2)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 143 HP 12/2008 - 05/2013
2.0 TDI 1968 CCM 170 HP 02/2009 - 05/2013
2.0 TDI 1968 CCM 120 HP 12/2008 - 05/2013
EXEO ST (3R5)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 143 HP 05/2009 - 05/2013
2.0 TDI 1968 CCM 170 HP 05/2009 - 05/2013
2.0 TDI 1968 CCM 120 HP 07/2009 - 05/2013
LEON (1P1)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 170 HP 05/2006 - 12/2012
TOLEDO III (5P2)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 170 HP 01/2006 - 05/2009
SKODA
OCTAVIA II (1Z3)
Description Cylinder Capacity Horse Power Year
2.0 TDI RS 1968 CCM 170 HP 04/2006 - 02/2013
SUPERB II (3T4)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 170 HP 07/2008 - 05/2015
2.0 TDI 4x4 1968 CCM 170 HP 09/2008 - 05/2015
SUPERB II Estate (3T5)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 170 HP 10/2009 - 05/2015
2.0 TDI 4x4 1968 CCM 170 HP 10/2009 - 05/2015
YETI (5L)
Description Cylinder Capacity Horse Power Year
2.0 TDI 4x4 1968 CCM 140 HP 05/2009 - 12/2017
2.0 TDI 4x4 1968 CCM 170 HP 11/2009 - 05/2015
VW
BEETLE (5C1, 5C2)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 140 HP 04/2011 - 07/2016
BEETLE Convertible (5C7, 5C8)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 140 HP 04/2012 - 07/2016
EOS (1F7, 1F8)
Description Cylinder Capacity Horse Power Year
2.0 TDI 16V 1968 CCM 140 HP 05/2008 - 08/2015
GOLF PLUS V (5M1, 521)
Description Cylinder Capacity Horse Power Year
2.0 TDI 16V 1968 CCM 140 HP 01/2005 - 12/2013
2.0 TDI 1968 CCM 136 HP 05/2005 - 12/2013
GOLF V Estate (1K5)
Description Cylinder Capacity Horse Power Year
2.0 TDI 16V 1968 CCM 140 HP 06/2007 - 07/2009
2.0 TDI 1968 CCM 136 HP 06/2007 - 07/2009
GOLF VI (5K1)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 140 HP 10/2008 - 05/2013
2.0 TDI 1968 CCM 110 HP 10/2008 - 11/2012
2.0 TDI 1968 CCM 170 HP 04/2009 - 11/2012
GOLF VI Van (5K1)
Description Cylinder Capacity Horse Power Year
2.0 TDi 1968 CCM 140 HP 09/2009 - 11/2012
GOLF VI Estate (AJ5)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 140 HP 07/2009 - 07/2013
2.0 TDI 1968 CCM 136 HP 07/2009 - 07/2013
JETTA III (1K2)
Description Cylinder Capacity Horse Power Year
2.0 TDI 16V 1968 CCM 140 HP 08/2005 - 10/2010
2.0 TDI 1968 CCM 136 HP 09/2005 - 10/2010
2.0 TDI 1968 CCM 170 HP 10/2006 - 10/2010
JETTA IV (162, 163, AV3, AV2)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 140 HP 07/2010 - 12/2017
PASSAT B6 (3C2)
Description Cylinder Capacity Horse Power Year
2.0 TDI 16V 1968 CCM 140 HP 03/2005 - 07/2010
2.0 TDI 1968 CCM 170 HP 08/2005 - 07/2010
2.0 TDI 16V 4motion 1968 CCM 140 HP 03/2005 - 08/2010
PASSAT B6 Estate (3C5)
Description Cylinder Capacity Horse Power Year
2.0 TDI 16V 1968 CCM 140 HP 08/2005 - 11/2010
2.0 TDI 1968 CCM 136 HP 08/2005 - 11/2010
2.0 TDI 1968 CCM 170 HP 08/2005 - 11/2010
2.0 TDI 16V 4motion 1968 CCM 140 HP 08/2005 - 11/2010
PASSAT CC B6 (357)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 140 HP 06/2008 - 01/2012
2.0 TDI 1968 CCM 170 HP 06/2008 - 01/2012
2.0 TDI 1968 CCM 136 HP 06/2008 - 05/2011
2.0 BlueTDI 1968 CCM 143 HP 05/2009 - 11/2010
2.0 TDI 4motion 1968 CCM 140 HP 08/2009 - 01/2012
2.0 TDI 4motion 1968 CCM 170 HP 11/2009 - 01/2012
SCIROCCO III (137, 138)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 140 HP 08/2008 - 11/2017
2.0 TDI 1968 CCM 170 HP 05/2009 - 11/2017
TIGUAN (5N_)
Description Cylinder Capacity Horse Power Year
2.0 TDI 4motion 1968 CCM 163 HP 02/2008 - 08/2009
2.0 TDI 4motion 1968 CCM 140 HP 04/2010 - 12/2011
2.0 TDI 4motion 1968 CCM 170 HP 09/2007 - 07/2018
2.0 TDI 1968 CCM 140 HP 03/2008 - 07/2018
2.0 TDI 4motion 1968 CCM 136 HP 11/2007 - 07/2018
TIGUAN VAN (5N_)
Description Cylinder Capacity Horse Power Year
2.0 TDI 4motion (5N1, 5N2) 1968 CCM 140 HP 11/2007 - 07/2018

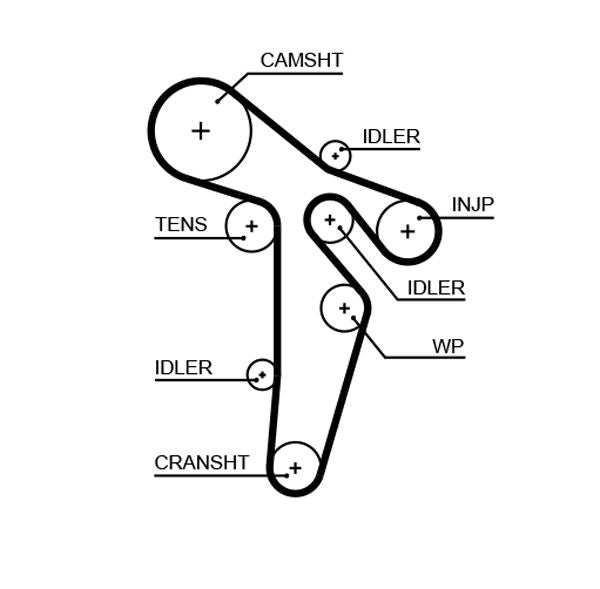

The Gates 5648XS Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Fiberglass tensile cord material, HNBR (hydrogenated nitrile butadiene rubber) belt material, 160 teeth, and A3 vehicle type. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Tensile Cord Material : Fiberglass
Belt Material : HNBR (hydrogenated nitrile butadiene rubber)
Colour : black
Number of Teeth : 160
Width [mm] : 30
Tooth Pitch [mm] : 9.525
Length [mm] : 1,524
Construction Year from : 06.2003
Vehicle type : A3
Driven Units : Camshaft
Engine Code : CBAA
Article number of the recommended special tool : GAT4840A
Article number of the recommended special tool : GAT4844
  • Vendor GATES
  • SKU 5648XS
  • Barcode 5414465930058
  • AUDI : 03L109119 03L109119D 03L109119F
  • SEAT : 03L109119D
  • SKODA : 03L109119D 03L109119F
  • VW : 03L109119 03L109119A 03L109119D 03L109119F 2X0109119B
  • BOSCH : 1 987 949 645
  • FEBI BILSTEIN : 34127
  • GATES : 859715648
