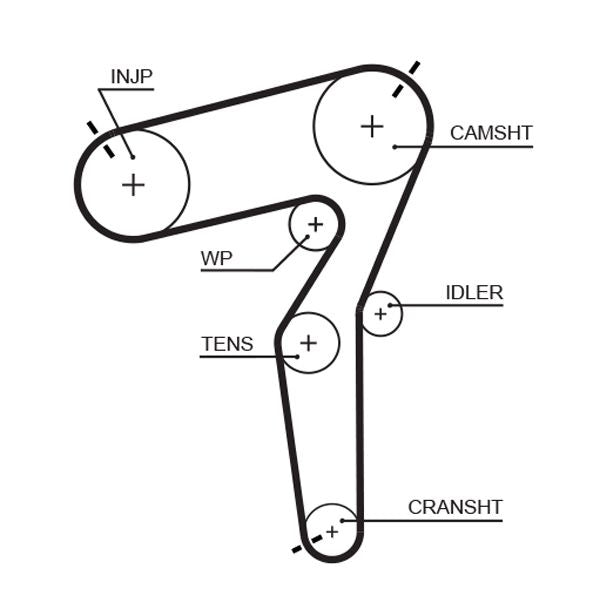

Gates 5684XS Timing Belt - 1
Gates 5684XS Timing Belt video
Gates 5684XS Timing Belt - 1
Gates 5684XS Timing Belt video
GATES

Gates 5684XS Timing Belt

SKU: 5684XS
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£45.02 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO
GIULIETTA (940_)
Description Cylinder Capacity Horse Power Year
2.0 JTDM (940.FXL1A) 1956 CCM 140 HP 04/2010 - 12/2020
2.0 JTDM (940FXH1A, 940FXH11, 940FXZ11, 940FXZ1A) 1956 CCM 163 HP 04/2010 - 10/2018
2.0 JTDM (940FXQ1A, 940FYC1A) 1956 CCM 150 HP 08/2013 - 10/2018
2.0 JTDM (940FXE1A, 940FXG11) 1956 CCM 170 HP 04/2010 - 12/2020
2.0 JTDM (940FXV11) 1956 CCM 175 HP 11/2013 - 10/2018
FIAT
500X (334_)
Description Cylinder Capacity Horse Power Year
2.0 D Multijet 4x4 (334AXB22, 334AXD2B) 1956 CCM 140 HP 09/2014 - 09/2018
2.0 D Multijet 4x4 (334AXB22, 334AXD2B) 1956 CCM 136 HP 09/2014 - 09/2018
2.0 D Multijet 4x4 (334AX) 1956 CCM 150 HP 09/2018 - 09/2020
DOBLO Combi (263_)
Description Cylinder Capacity Horse Power Year
2.0 D Multijet (263AXF1B) 1956 CCM 135 HP 01/2010 - 12/2023
DOBLO Cargo (263_)
Description Cylinder Capacity Horse Power Year
2.0 D Multijet 1956 CCM 135 HP 02/2010 - 12/2023
DOBLO Platform/Chassis (263_)
Description Cylinder Capacity Horse Power Year
2.0 D Multijet 1956 CCM 135 HP 02/2010 - 12/2023
DUCATO Platform/Chassis (250_)
Description Cylinder Capacity Horse Power Year
115 Multijet 2,0 D 1956 CCM 116 HP From 06/2011
DUCATO Bus (250_)
Description Cylinder Capacity Horse Power Year
115 Multijet 2,0 D 1956 CCM 116 HP From 06/2011
DUCATO Van (250_)
Description Cylinder Capacity Horse Power Year
115 Multijet 2,0 D 1956 CCM 116 HP From 06/2011
JEEP
CHEROKEE (KL)
Description Cylinder Capacity Horse Power Year
2.0 CRD 4x4 1956 CCM 170 HP 04/2014 - 08/2018
2.0 CRD 1956 CCM 140 HP 04/2014 - 08/2018
2.0 CRD 4x4 1956 CCM 140 HP 04/2014 - 08/2018
COMPASS (MP, M6, MV, M7)
Description Cylinder Capacity Horse Power Year
2.0 CRD 4x4 1956 CCM 170 HP From 12/2016
2.0 CRD 4x4 1956 CCM 140 HP From 03/2017
2.0 Multijet II 4x4 1956 CCM 173 HP From 03/2017
RENEGADE SUV (BU, B1, BV)
Description Cylinder Capacity Horse Power Year
2.0 CRD 4x4 1956 CCM 140 HP From 07/2014
2.0 CRD 4x4 1956 CCM 170 HP From 07/2014

The Gates 5684XS Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Fiberglass tensile cord material, HNBR (hydrogenated nitrile butadiene rubber) belt material, black colour, and 199 teeth. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Tensile Cord Material : Fiberglass
Belt Material : HNBR (hydrogenated nitrile butadiene rubber)
Colour : black
Number of Teeth : 199
Width [mm] : 24
Tooth Pitch [mm] : 8.035
Length [mm] : 1,599
Construction Year from : 02.2016
Driven Units : Camshaft
Article number of the recommended special tool : GAT4850
Article number of the recommended special tool : GAT4844
  • Vendor GATES
  • SKU 5684XS
  • Barcode 5414465035630
  • ALFA ROMEO : 46350907 73504017
  • FIAT : 46350907 55273968 55281164 73504017
  • GENERAL MOTORS : 95524042
  • JEEP : 46350907 68093239AA 68329675AA 68416467AA 68416481AA 73504017 K68093239AA K68329675AA
  • BLUE PRINT : ADA107508
  • BOSCH : 1 987 946 812
  • BOSCH : 1 987 949 613
  • FEBI BILSTEIN : 173179
  • FEBI BILSTEIN : 28305
  • FEBI BILSTEIN : 28306
  • GATES : 859715684
