GATES

Gates 5686XS Timing Belt

SKU: 5686XS
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£34.40 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO
S60 II Cross Country (134)
Description Cylinder Capacity Horse Power Year
D3 1969 CCM 150 HP 03/2015 - 05/2018
D4 1969 CCM 190 HP 03/2015 - 05/2018
D4 Drive-E Polestar 1969 CCM 200 HP 03/2015 - 05/2018
S90 II (234)
Description Cylinder Capacity Horse Power Year
D5 AWD 1969 CCM 235 HP 03/2016 - 12/2021
D4 1969 CCM 190 HP 03/2016 - 12/2021
D4 AWD 1969 CCM 190 HP 03/2016 - 12/2021
D3 1969 CCM 150 HP 03/2016 - 12/2021
D4 1969 CCM 163 HP 09/2018 - 12/2021
D4 Drive-E Polestar 1969 CCM 200 HP 03/2016 - 12/2021
V40 Hatchback (525)
Description Cylinder Capacity Horse Power Year
D4 1969 CCM 190 HP 05/2014 - 08/2019
D2 1969 CCM 120 HP 02/2015 - 08/2019
V40 Cross Country (526)
Description Cylinder Capacity Horse Power Year
D4 1969 CCM 190 HP 05/2014 - 08/2019
D2 1969 CCM 120 HP 02/2015 - 08/2019
D3 1969 CCM 150 HP 04/2015 - 08/2019
V60 I Cross Country (157)
Description Cylinder Capacity Horse Power Year
D4 Drive-E Polestar 1969 CCM 200 HP 03/2015 - 05/2018
D2 1969 CCM 120 HP 03/2015 - 05/2018
D3 1969 CCM 150 HP 03/2015 - 05/2018
D4 1969 CCM 190 HP 03/2015 - 05/2018
D5 1969 CCM 224 HP 03/2015 - 05/2018
V60 II (225)
Description Cylinder Capacity Horse Power Year
D3 1969 CCM 150 HP 02/2018 - 12/2021
D4 1969 CCM 190 HP 02/2018 - 12/2021
D3 AWD 1969 CCM 150 HP 09/2018 - 12/2021
D4 AWD 1969 CCM 190 HP 09/2018 - 12/2021
D4 Polestar 1969 CCM 200 HP 02/2018 - 12/2021
V60 II Cross Country (227)
Description Cylinder Capacity Horse Power Year
D4 AWD 1969 CCM 190 HP 12/2018 - 12/2021
V90 II Cross Country (236)
Description Cylinder Capacity Horse Power Year
D4 AWD 1969 CCM 163 HP From 09/2018
D5 AWD 1969 CCM 235 HP From 10/2016
D4 AWD 1969 CCM 190 HP From 10/2016
V90 II Estate (235)
Description Cylinder Capacity Horse Power Year
D4 1969 CCM 190 HP 03/2016 - 12/2021
D5 AWD 1969 CCM 235 HP 03/2016 - 12/2021
D3 1969 CCM 150 HP 03/2016 - 12/2021
D3 AWD 1969 CCM 150 HP 03/2016 - 12/2021
D4 AWD 1969 CCM 190 HP 03/2016 - 12/2021
D4 1969 CCM 163 HP 09/2018 - 12/2021
XC40 (536)
Description Cylinder Capacity Horse Power Year
D4 AWD 1969 CCM 190 HP 10/2017 - 09/2021
D3 1969 CCM 150 HP 09/2018 - 09/2021
D3 AWD 1969 CCM 150 HP 09/2018 - 09/2021
D4 Polestar AWD 1969 CCM 200 HP 01/2019 - 09/2021
XC60 II (246)
Description Cylinder Capacity Horse Power Year
D4 AWD 1969 CCM 190 HP 03/2017 - 12/2021
D5 AWD 1969 CCM 235 HP 03/2017 - 12/2022
D4 1969 CCM 190 HP 03/2017 - 12/2021
D3 1969 CCM 150 HP 03/2017 - 12/2021
D4 1969 CCM 163 HP 12/2018 - 12/2021
XC70 II (136)
Description Cylinder Capacity Horse Power Year
D4 1969 CCM 181 HP 10/2013 - 04/2016
XC90 II (256)
Description Cylinder Capacity Horse Power Year
D5 AWD 1969 CCM 224 HP 09/2014 - 12/2016
D4 1969 CCM 190 HP 06/2015 - 12/2018
D4 AWD 1969 CCM 190 HP 10/2015 - 12/2018
D5 AWD 1969 CCM 235 HP 03/2016 - 12/2019

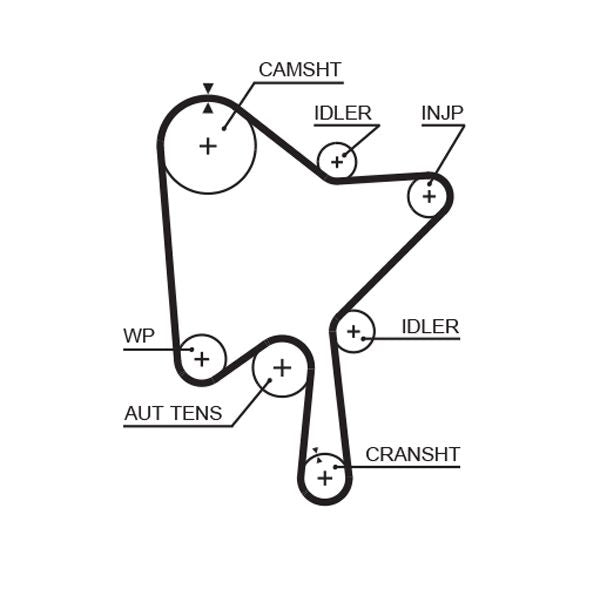

The Gates 5686XS Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records Fiberglass tensile cord material, HNBR (hydrogenated nitrile butadiene rubber) belt material, black colour, and 155 teeth. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Tensile Cord Material : Fiberglass
Belt Material : HNBR (hydrogenated nitrile butadiene rubber)
Colour : black
Number of Teeth : 155
Width [mm] : 28
Tooth Pitch [mm] : 9.525
Length [mm] : 1,476
Driven Units : Camshaft
Article number of the recommended special tool : GAT4844
Article number of the recommended special tool : GAT5270
  • Vendor GATES
  • SKU 5686XS
  • Barcode 5414465274640
  • VOLVO : 31316579
  • BOSCH : 1 987 949 698
  • FEBI BILSTEIN : 177421
  • FEBI BILSTEIN : 177467
  • FEBI BILSTEIN : 177468
  • GATES : 859715686
