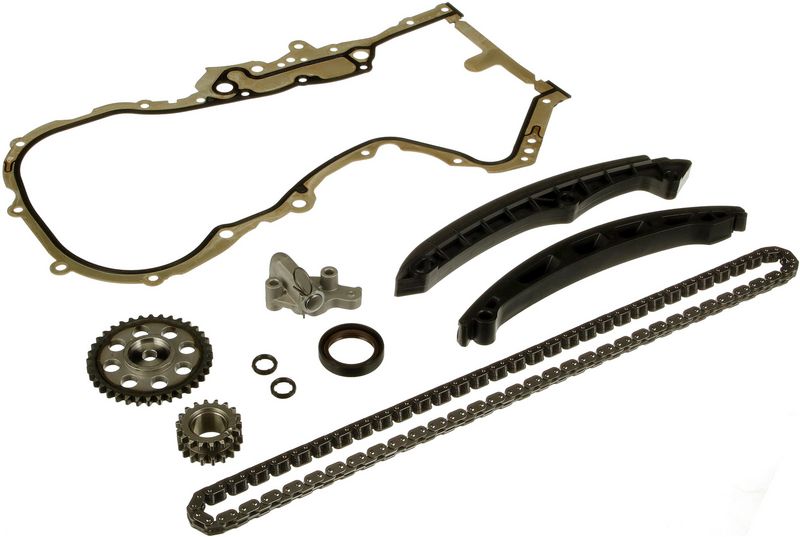

Gates CHK1012M Timing Chain Kit - 1

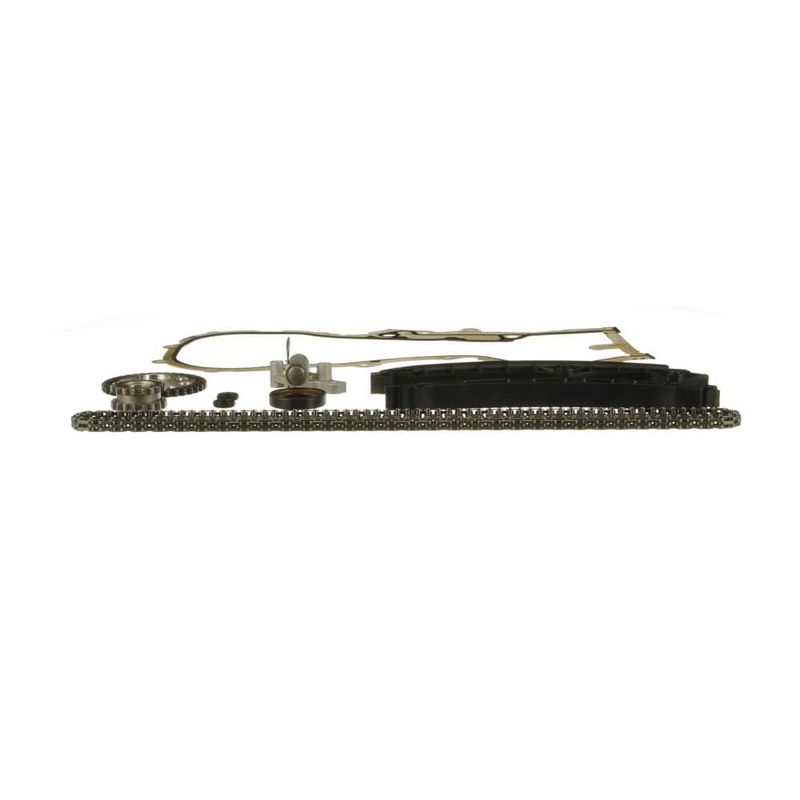

Gates CHK1012M Timing Chain Kit - 2

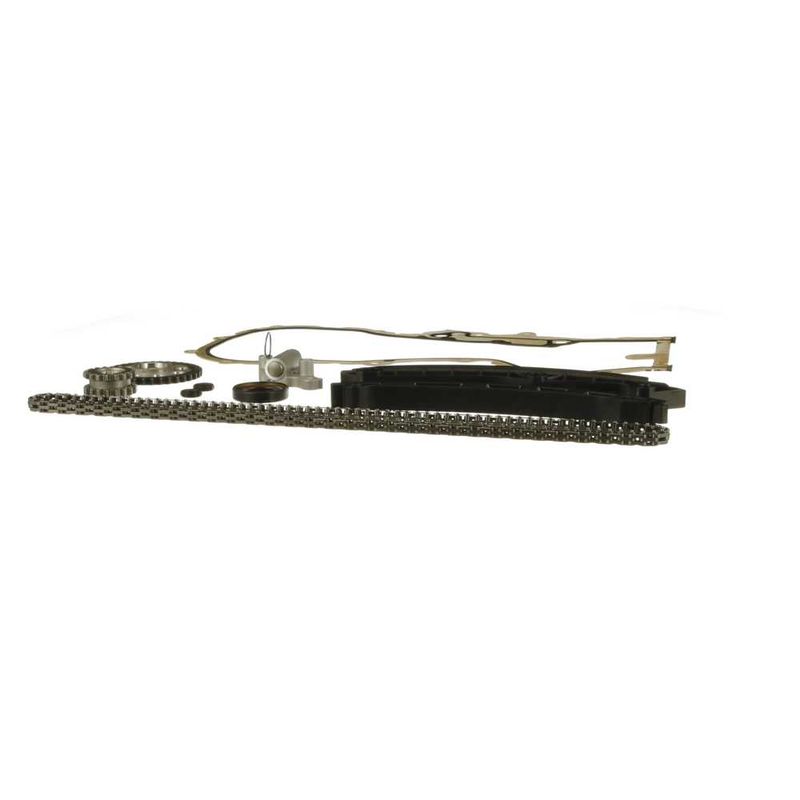

Gates CHK1012M Timing Chain Kit - 3

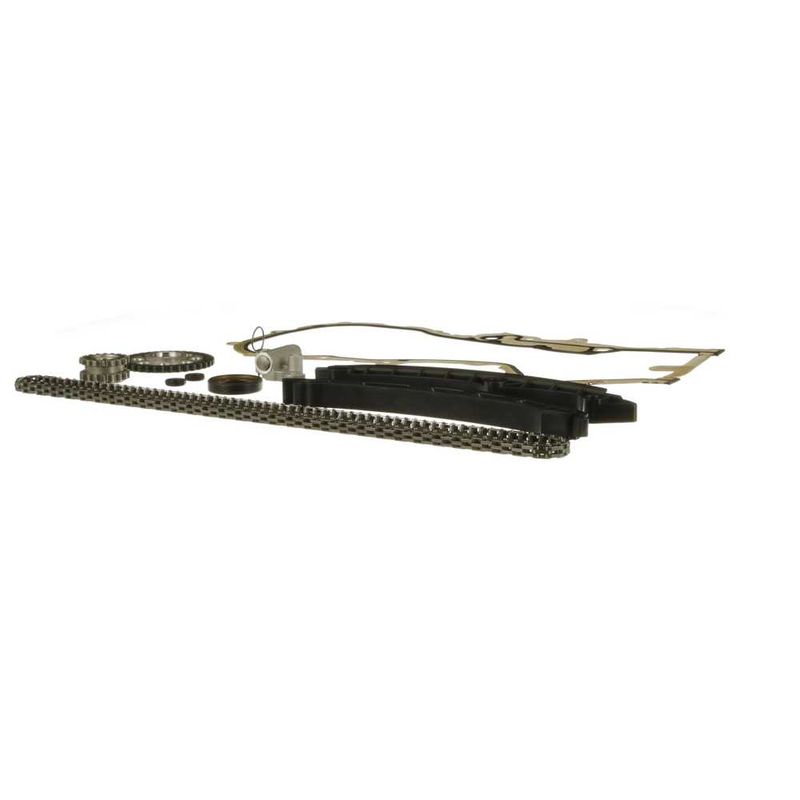

Gates CHK1012M Timing Chain Kit - 4

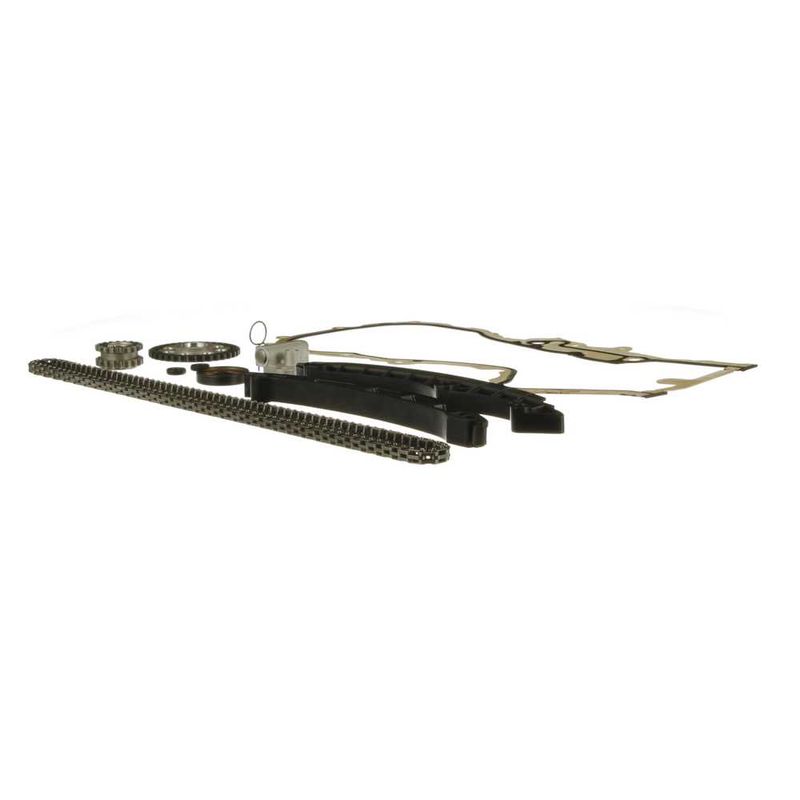

Gates CHK1012M Timing Chain Kit - 5

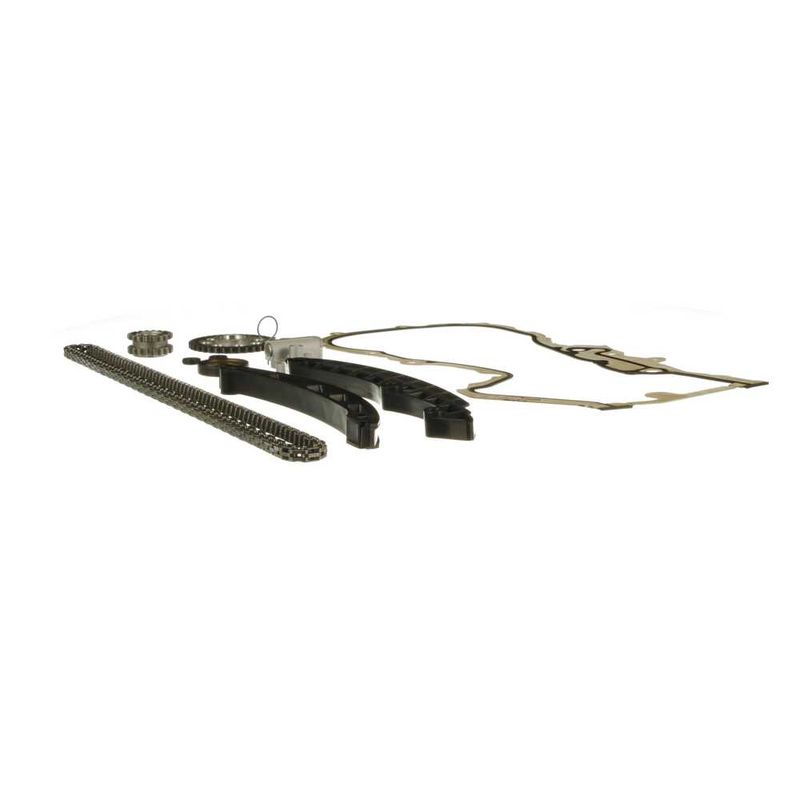

Gates CHK1012M Timing Chain Kit - 6
Gates CHK1012M Timing Chain Kit video
Gates CHK1012M Timing Chain Kit video
GATES

Gates CHK1012M Timing Chain Kit

SKU: CHK1012M
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£133.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A1 (8X1, 8XK)
Description Cylinder Capacity Horse Power Year
1.4 TFSI 1390 CCM 122 HP 05/2010 - 04/2015
A1 Sportback (8XA, 8XF)
Description Cylinder Capacity Horse Power Year
1.4 TFSI 1390 CCM 122 HP 11/2011 - 04/2015
A3 Convertible (8P7)
Description Cylinder Capacity Horse Power Year
1.4 TFSI 1390 CCM 125 HP 02/2011 - 05/2013
SEAT
ALTEA (5P1)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 125 HP 11/2007 - 07/2015
ALTEA XL (5P5, 5P8)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 125 HP 11/2007 - 07/2015
LEON (1P1)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 125 HP 11/2007 - 12/2012
TOLEDO III (5P2)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 125 HP 11/2007 - 05/2009
TOLEDO IV (KG3)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 122 HP 07/2012 - 06/2015
SKODA
RAPID (NH3, NK3, NK6)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 122 HP 07/2012 - 06/2015
RAPID Spaceback (NH1)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 122 HP 07/2012 - 06/2015
SUPERB II (3T4)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 125 HP 07/2008 - 05/2015
SUPERB II Estate (3T5)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 125 HP 10/2009 - 05/2015
YETI (5L)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 122 HP 06/2010 - 05/2015
VW
BEETLE (5C1, 5C2)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 160 HP 10/2011 - 07/2016
BEETLE Convertible (5C7, 5C8)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 160 HP 12/2011 - 07/2016
CC B7 (358)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 160 HP 11/2011 - 12/2016
1.4 TSI MultiFuel 1390 CCM 160 HP 11/2011 - 12/2016
EOS (1F7, 1F8)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 122 HP 11/2007 - 08/2015
1.4 TSI 1390 CCM 160 HP 05/2008 - 08/2015
GOLF V Estate (1K5)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 122 HP 06/2007 - 07/2009
1.4 TSI 1390 CCM 160 HP 07/2008 - 07/2009
GOLF VI (5K1)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 122 HP 10/2008 - 11/2012
1.4 TSI 1390 CCM 160 HP 10/2008 - 11/2012
GOLF VI Estate (AJ5)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 122 HP 07/2009 - 07/2013
1.4 TSI 1390 CCM 160 HP 07/2009 - 07/2013
GOLF VI Convertible (517)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 122 HP 11/2011 - 05/2016
1.4 TSI 1390 CCM 160 HP 03/2011 - 05/2016
JETTA III (1K2)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 122 HP 05/2007 - 10/2010
JETTA IV (162, 163, AV3, AV2)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 160 HP 04/2011 - 12/2017
1.4 TSI 1390 CCM 122 HP 05/2011 - 12/2017
1.4 TSI 1390 CCM 150 HP 04/2011 - 12/2017
PASSAT CC B6 (357)
Description Cylinder Capacity Horse Power Year
1.4 TSI MultiFuel 1390 CCM 160 HP 01/2011 - 01/2012
PASSAT B7 (362)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 122 HP 08/2010 - 12/2014
1.4 TSI MultiFuel 1390 CCM 160 HP 11/2010 - 12/2014
1.4 TSI 1390 CCM 160 HP 11/2012 - 12/2014
PASSAT B7 Estate (365)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 122 HP 08/2010 - 12/2014
1.4 TSI MultiFuel 1390 CCM 160 HP 11/2010 - 12/2014
1.4 TSI 1390 CCM 160 HP 11/2012 - 12/2014
SCIROCCO III (137, 138)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 160 HP 05/2008 - 11/2017
1.4 TSI 1390 CCM 122 HP 08/2008 - 11/2017
SHARAN (7N1, 7N2)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 150 HP 05/2010 - 11/2015
SHARAN Box Body/MPV (7N1, 7N2)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 150 HP 05/2010 - 11/2015
TIGUAN (5N_)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 160 HP 05/2011 - 07/2018
1.4 TSI 4motion 1390 CCM 160 HP 05/2011 - 07/2018
1.4 TSI 4motion 1390 CCM 150 HP 09/2007 - 07/2018
1.4 TSI 1390 CCM 150 HP 05/2008 - 07/2018
1.4 TSI 1390 CCM 122 HP 08/2010 - 07/2018
TIGUAN VAN (5N_)
Description Cylinder Capacity Horse Power Year
1.4 TSI (5N1) 1390 CCM 122 HP 08/2010 - 05/2011
TOURAN (1T1, 1T2)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 140 HP 02/2006 - 05/2010
1.4 TSI 1390 CCM 170 HP 11/2006 - 05/2010
TOURAN (1T3)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 140 HP 05/2010 - 05/2015
1.4 TSI 1390 CCM 170 HP 05/2010 - 05/2015
TOURAN Box Body/MPV (1T3)
Description Cylinder Capacity Horse Power Year
1.4 TSI 1390 CCM 170 HP 05/2010 - 05/2015
1.4 TSI 1390 CCM 140 HP 05/2010 - 05/2015

The Gates CHK1012M Timing Chain Kit is a replacement engine-timing component that helps maintain the specified relationship between crankshaft and camshaft rotation. Its catalogue specification records with camshaft sprocket, with crankshaft gear, and with gaskets/seals and Camshaft driven units. Confirm the reference, chain configuration, included guides and tensioner, and exact engine application before fitting; use the manufacturer's timing, lubrication and torque procedure.

Function : Timing Chain Kit
Supplementary Article/Supplementary Info : with camshaft sprocket
Supplementary Article/Supplementary Info : with crankshaft gear
Supplementary Article/Supplementary Info : with gaskets/seals
Driven Units : Camshaft
Article number of the recommended special tool : GAT5215
Article number of the recommended special tool : GAT4844
Article number of the recommended special tool : GAT3054-10
  • Vendor GATES
  • SKU CHK1012M
  • Barcode 5400608681970
  • APEC : ACK4177
  • NAPA : NCK4177
  • SKF : VKML 81311
  • SKF : VKML 81611
  • User manual
  • GATES : 771711201
  • GATES : GC1002
  • GATES : GM1001
  • GATES : RM1009
  • GATES : RM5011
  • GATES : SB130-8B
  • GATES : TM1006
  • GATES : Z80892
  • GATES : Z80893
  • GATES : Z80895
