GATES

Gates CHK1016M Timing Chain Kit

SKU: CHK1016M
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£323.89 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
3 Convertible (E93)
Description Cylinder Capacity Horse Power Year
325 d 2993 CCM 204 HP 09/2009 - 09/2013
330 d 2993 CCM 245 HP 01/2009 - 09/2013
3 (F30, F80)
Description Cylinder Capacity Horse Power Year
335 d xDrive 2993 CCM 313 HP 07/2013 - 10/2018
3 Gran Turismo (F34)
Description Cylinder Capacity Horse Power Year
330 d xDrive 2993 CCM 258 HP From 03/2014
330 d 2993 CCM 258 HP From 03/2014
335 d xDrive 2993 CCM 313 HP From 03/2014
3 Touring (F31)
Description Cylinder Capacity Horse Power Year
330 d 2993 CCM 258 HP 07/2012 - 06/2019
330 d xDrive 2993 CCM 258 HP 03/2013 - 06/2019
4 Coupe (F32, F82)
Description Cylinder Capacity Horse Power Year
435 d xDrive 2993 CCM 313 HP 11/2013 - 06/2020
430 d 2993 CCM 258 HP 11/2013 - 06/2020
430 d xDrive 2993 CCM 258 HP 03/2014 - 06/2020
4 Convertible (F33, F83)
Description Cylinder Capacity Horse Power Year
430 d 2993 CCM 258 HP 07/2014 - 07/2020
435 d xDrive 2993 CCM 313 HP 07/2014 - 07/2020
430 d 2993 CCM 286 HP 07/2014 - 07/2020
4 Gran Coupe (F36)
Description Cylinder Capacity Horse Power Year
430 d 2993 CCM 258 HP 07/2014 - 12/2020
430 d xDrive 2993 CCM 258 HP 07/2014 - 12/2020
435 d xDrive 2993 CCM 313 HP 07/2014 - 12/2020
430 d 2993 CCM 286 HP 07/2014 - 12/2020
430 d xDrive 2993 CCM 286 HP 07/2014 - 12/2020
5 Gran Turismo (F07)
Description Cylinder Capacity Horse Power Year
530 d 2993 CCM 211 HP 09/2010 - 02/2017
530 d 2993 CCM 245 HP 08/2009 - 06/2012
535 d xDrive 2993 CCM 299 HP 03/2010 - 06/2012
530 d xDrive 2993 CCM 245 HP 06/2010 - 06/2012
535 d 2993 CCM 299 HP 03/2010 - 06/2012
530 d 2993 CCM 258 HP 07/2012 - 02/2017
530 d xDrive 2993 CCM 258 HP 07/2012 - 02/2017
535 d xDrive 2993 CCM 313 HP 07/2012 - 02/2017
5 (F10)
Description Cylinder Capacity Horse Power Year
530 d 2993 CCM 258 HP 09/2011 - 10/2016
530 d xDrive 2993 CCM 258 HP 03/2011 - 10/2016
535 d 2993 CCM 313 HP 09/2011 - 10/2016
535 d xDrive 2993 CCM 313 HP 09/2011 - 10/2016
5 Touring (F11)
Description Cylinder Capacity Horse Power Year
530 d 2993 CCM 258 HP 09/2011 - 02/2017
530 d xDrive 2993 CCM 258 HP 03/2011 - 02/2017
535 d 2993 CCM 313 HP 09/2011 - 02/2017
535 d xDrive 2993 CCM 313 HP 09/2011 - 02/2017
6 Convertible (F12)
Description Cylinder Capacity Horse Power Year
640 d xDrive 2993 CCM 313 HP 03/2012 - 06/2018
640 d 2993 CCM 313 HP 09/2011 - 06/2018
6 Coupe (F13)
Description Cylinder Capacity Horse Power Year
640 d xDrive 2993 CCM 313 HP 03/2012 - 10/2017
640 d 2993 CCM 313 HP 09/2011 - 10/2017
6 Gran Coupe (F06)
Description Cylinder Capacity Horse Power Year
640 d 2993 CCM 313 HP 03/2012 - 10/2018
640 d xDrive 2993 CCM 313 HP 03/2013 - 10/2018
7 (F01, F02, F03, F04)
Description Cylinder Capacity Horse Power Year
740 d xDrive 2993 CCM 306 HP 09/2010 - 12/2012
730 d 2993 CCM 245 HP 09/2008 - 06/2012
740 d 2993 CCM 306 HP 09/2009 - 06/2012
730 d 2993 CCM 211 HP 02/2008 - 05/2015
730 d 2993 CCM 258 HP 07/2012 - 05/2015
730 d xDrive 2993 CCM 258 HP 11/2011 - 05/2015
740 d 2993 CCM 313 HP 07/2012 - 06/2015
740 d xDrive 2993 CCM 313 HP 07/2012 - 06/2015
X3 (F25)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 258 HP 04/2011 - 08/2017
xDrive 35 d 2993 CCM 313 HP 10/2011 - 08/2017
xDrive 30 d 2993 CCM 211 HP 04/2011 - 08/2017
X4 (F26)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 258 HP 04/2014 - 03/2018
xDrive 35 d 2993 CCM 313 HP 04/2014 - 03/2018
xDrive 30 d 2993 CCM 286 HP 04/2014 - 03/2018
xDrive 30 d 2993 CCM 249 HP 04/2015 - 03/2018
xDrive 30 d 2993 CCM 277 HP 04/2014 - 03/2018
X5 (E70)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 245 HP 04/2010 - 07/2013
xDrive 40 d 2993 CCM 306 HP 09/2010 - 06/2013
X5 (F15, F85)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 258 HP 08/2013 - 07/2018
xDrive 40 d 2993 CCM 313 HP 12/2013 - 07/2018
xDrive 30 d 2993 CCM 277 HP 08/2013 - 07/2018
xDrive 25 d 2993 CCM 218 HP 04/2014 - 07/2018
X6 (E71, E72)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 245 HP 04/2010 - 07/2014
xDrive 40 d 2993 CCM 306 HP 07/2009 - 06/2014
xDrive 30 d 2993 CCM 211 HP 04/2010 - 07/2014
X6 (F16, F86)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 258 HP 08/2014 - 07/2019
xDrive 30 d 2993 CCM 211 HP 08/2014 - 07/2019
xDrive 40 d 2993 CCM 313 HP 12/2014 - 07/2019
xDrive 30 d 2993 CCM 277 HP 08/2014 - 07/2019
xDrive 30 d 2993 CCM 249 HP 12/2014 - 07/2019

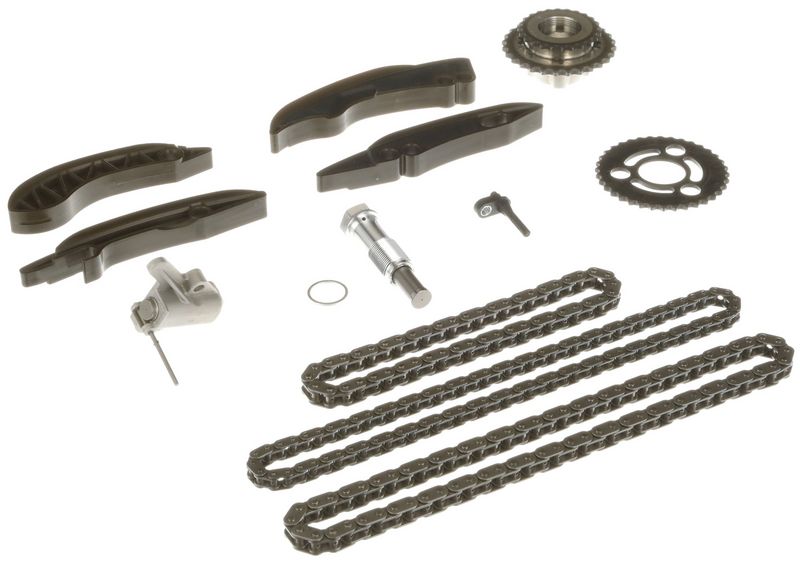

The Gates CHK1016M Timing Chain Kit is a replacement engine-timing component that helps maintain the specified relationship between crankshaft and camshaft rotation. Its catalogue specification records with camshaft sprocket and with injector pump gear and Camshaft, Oil Pump, and Injection pump driven units. Confirm the reference, chain configuration, included guides and tensioner, and exact engine application before fitting; use the manufacturer's timing, lubrication and torque procedure.

Function : Timing Chain Kit
Supplementary Article/Supplementary Info : with camshaft sprocket
Supplementary Article/Supplementary Info : with injector pump gear
Driven Units : Camshaft
Driven Units : Oil Pump
Driven Units : Injection pump
Article number of the recommended special tool : GAT5010
Article number of the recommended special tool : GAT5027
Article number of the recommended special tool : GAT5014
Article number of the recommended special tool : GAT5313
  • Vendor GATES
  • SKU CHK1016M
  • Barcode 5400608682021
  • APEC : ACK4034
  • NAPA : NCK4034
  • User manual
  • GATES : 771711206
  • GATES : BB086-0A
  • GATES : BC048-0A
  • GATES : BC072-0C
  • GATES : GJ1007
  • GATES : GM1067
  • GATES : RJ1002
  • GATES : RJ5002
  • GATES : RM1190
  • GATES : RM5281
  • GATES : TB1006
  • GATES : TM1190
  • GATES : Z80953
