GATES

Gates T36476 Deflection/Guide Pulley, V-ribbed belt

SKU: T36476
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£51.98 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

OPEL
SIGNUM Hatchback (Z03)
Description Cylinder Capacity Horse Power Year
3.0 V6 CDTI (F48) 2958 CCM 177 HP 05/2003 - 07/2005
3.0 V6 CDTI (F48) 2958 CCM 184 HP 09/2005 - 12/2008
VECTRA C (Z02)
Description Cylinder Capacity Horse Power Year
3.0 CDTI (F69) 2958 CCM 177 HP 02/2003 - 07/2005
VECTRA C GTS (Z02)
Description Cylinder Capacity Horse Power Year
3.0 CDTI (F68) 2958 CCM 177 HP 06/2003 - 07/2005
VECTRA C Estate (Z02)
Description Cylinder Capacity Horse Power Year
3.0 V6 CDTI (F35) 2958 CCM 177 HP 10/2003 - 07/2005
3.0 V6 CDTI (F35) 2958 CCM 184 HP 08/2005 - 08/2008
RENAULT
ESPACE Mk IV (JK0/1_)
Description Cylinder Capacity Horse Power Year
3.0 dCi (JK0J, JK0V) 2958 CCM 177 HP 11/2002 - 08/2006
3.0 dCi 2958 CCM 163 HP 09/2005 - 01/2015
VEL SATIS (BJ0_)
Description Cylinder Capacity Horse Power Year
3.0 dCi (BJ0J, BJ0N) 2958 CCM 177 HP 06/2002 - 06/2006
SAAB
9-5 (YS3E)
Description Cylinder Capacity Horse Power Year
3.0 TiD 2958 CCM 177 HP 07/2001 - 08/2005
9-5 Estate (YS3E)
Description Cylinder Capacity Horse Power Year
3.0 TiD 2958 CCM 177 HP 07/2001 - 08/2005
VAUXHALL
SIGNUM (Z03)
Description Cylinder Capacity Horse Power Year
3.0 CDTi 2958 CCM 177 HP 05/2003 - 05/2008
3.0 V6 CDTI 2959 CCM 184 HP 07/2005 - 06/2008
VECTRA Mk II (C) (Z02)
Description Cylinder Capacity Horse Power Year
3.0 V6 CDTI 2958 CCM 177 HP 06/2003 - 08/2005
3.0 CDTi 2958 CCM 184 HP 08/2005 - 07/2008
VECTRA Mk II (C) GTS (Z02)
Description Cylinder Capacity Horse Power Year
3.0 V6 CDTI 2958 CCM 177 HP 06/2003 - 08/2005
VECTRA Mk II (C) Estate (Z02)
Description Cylinder Capacity Horse Power Year
3.0 V6 CDTI 2958 CCM 177 HP 10/2003 - 08/2005
3.0 CDTi 2958 CCM 184 HP 08/2005 - 07/2008

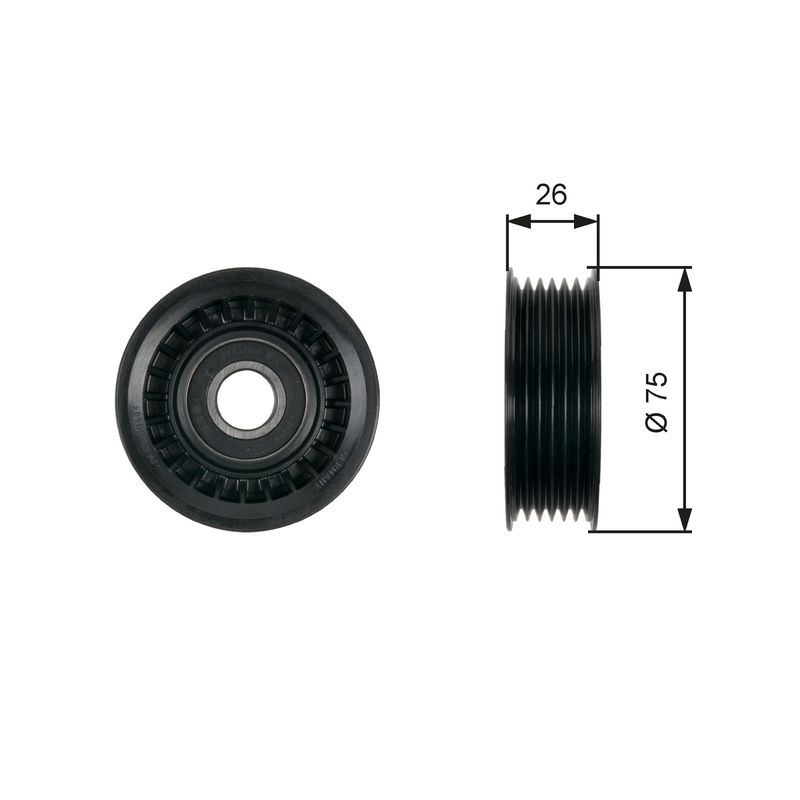

The Gates T36476 Deflection/Guide Pulley, V-ribbed belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records plastic construction, 75 mm outer diameter, 17 mm inner diameter, and right fitting position. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Deflection/Guide Pulley, V-ribbed belt
Supplementary Article/Supplementary Info 2 : with grooves
Material : Plastic
Number of grooves : 6
Outer Diameter [mm] : 75
Inner Diameter [mm] : 17
Width [mm] : 26
Driven Units : Alternator
Fitting Position : Right
  • Vendor GATES
  • SKU T36476
  • Barcode 5414465139994
  • ISUZU : 8972292760 8973124640
  • OPEL : 5636437 97312464
  • RENAULT : 7701052775
  • SAAB : 5954763
  • VAUXHALL : 5636437 97312464
  • FEBI BILSTEIN : 27507
  • SKF : VKM 35212
  • GATES : 780321576
